Overview

Highlight Pattern Options is a function that displays patterns with Hold/Harden/Skip collision options applied in a specified color on the 3D view.

Location

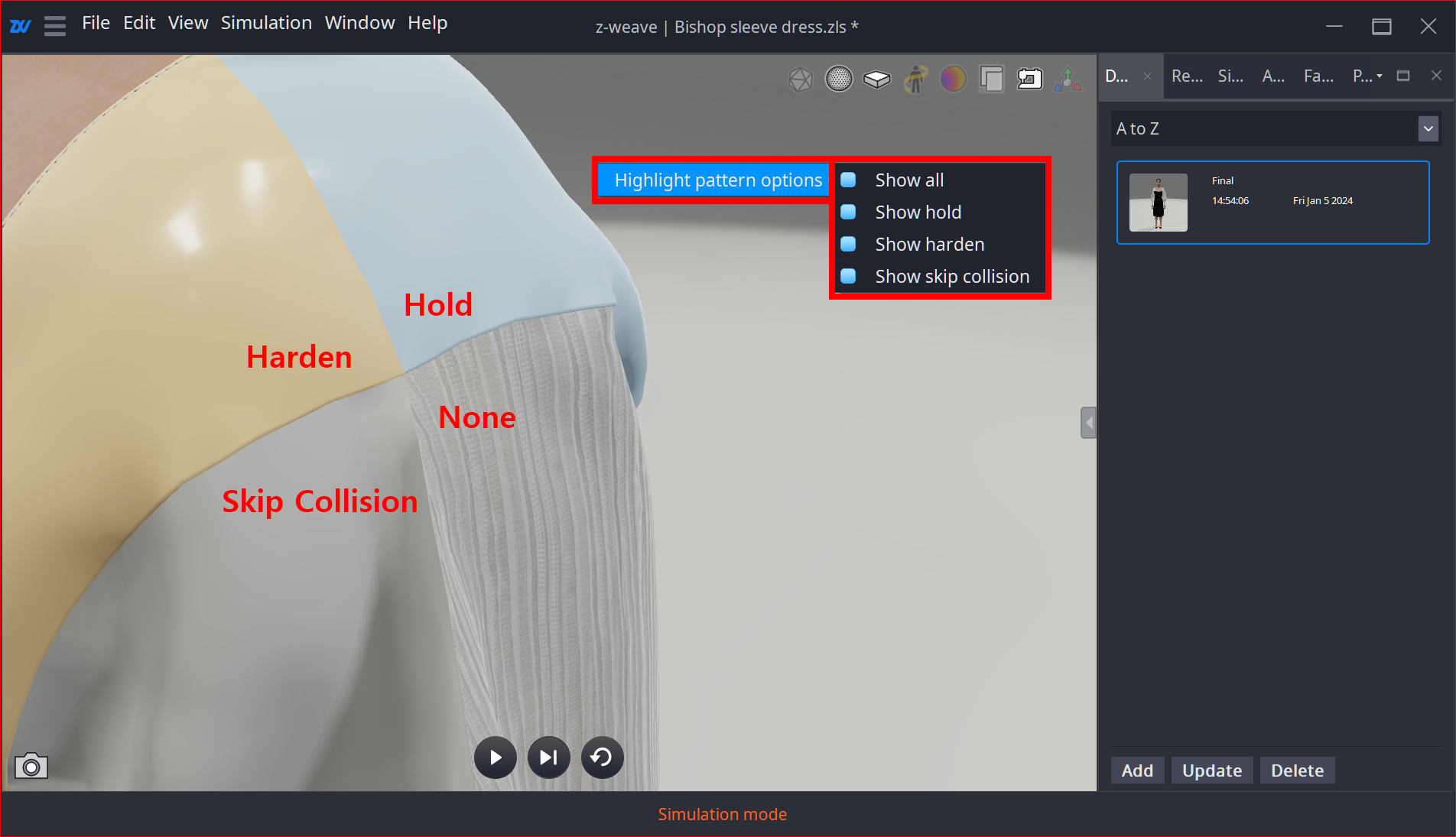

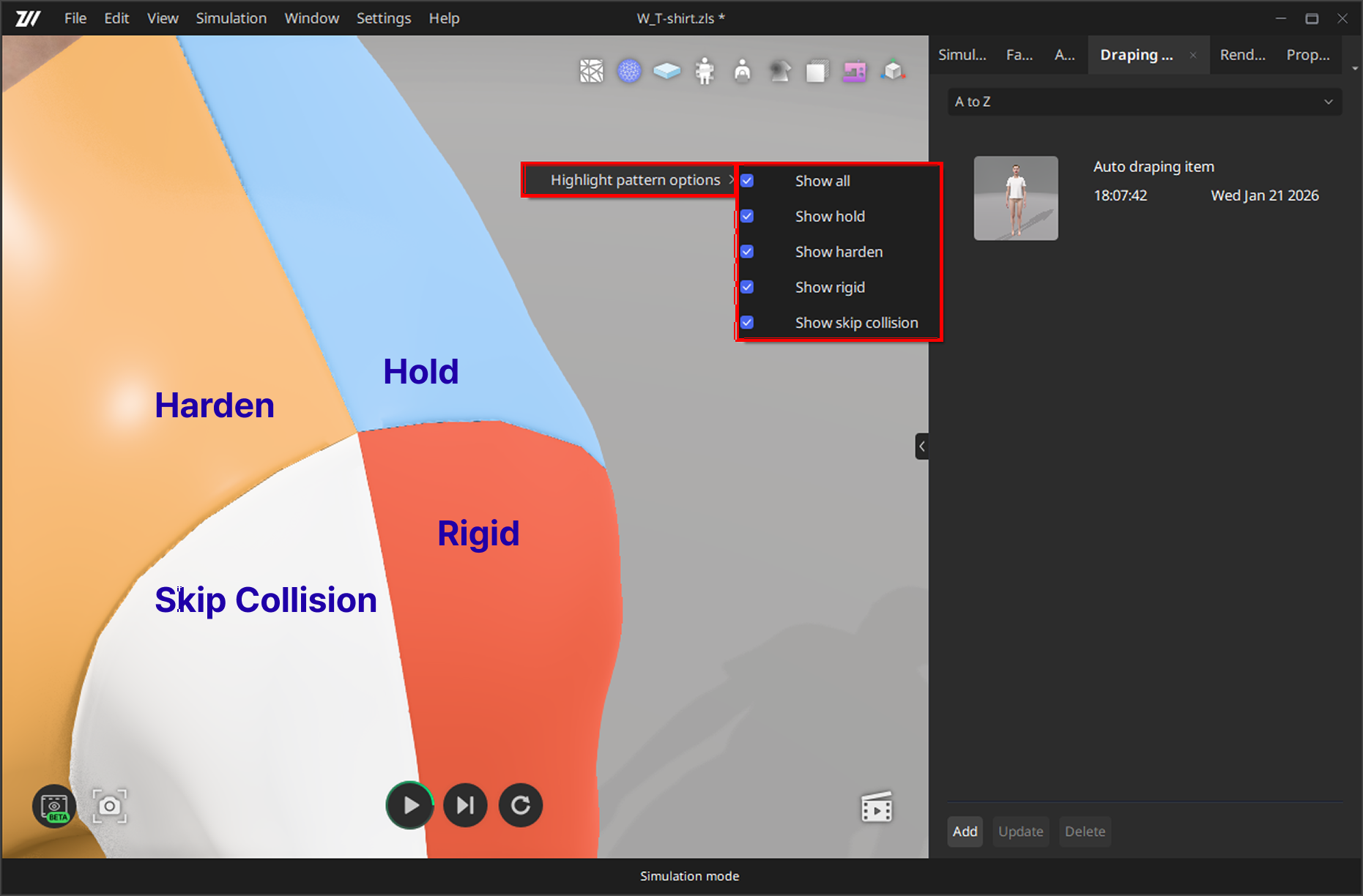

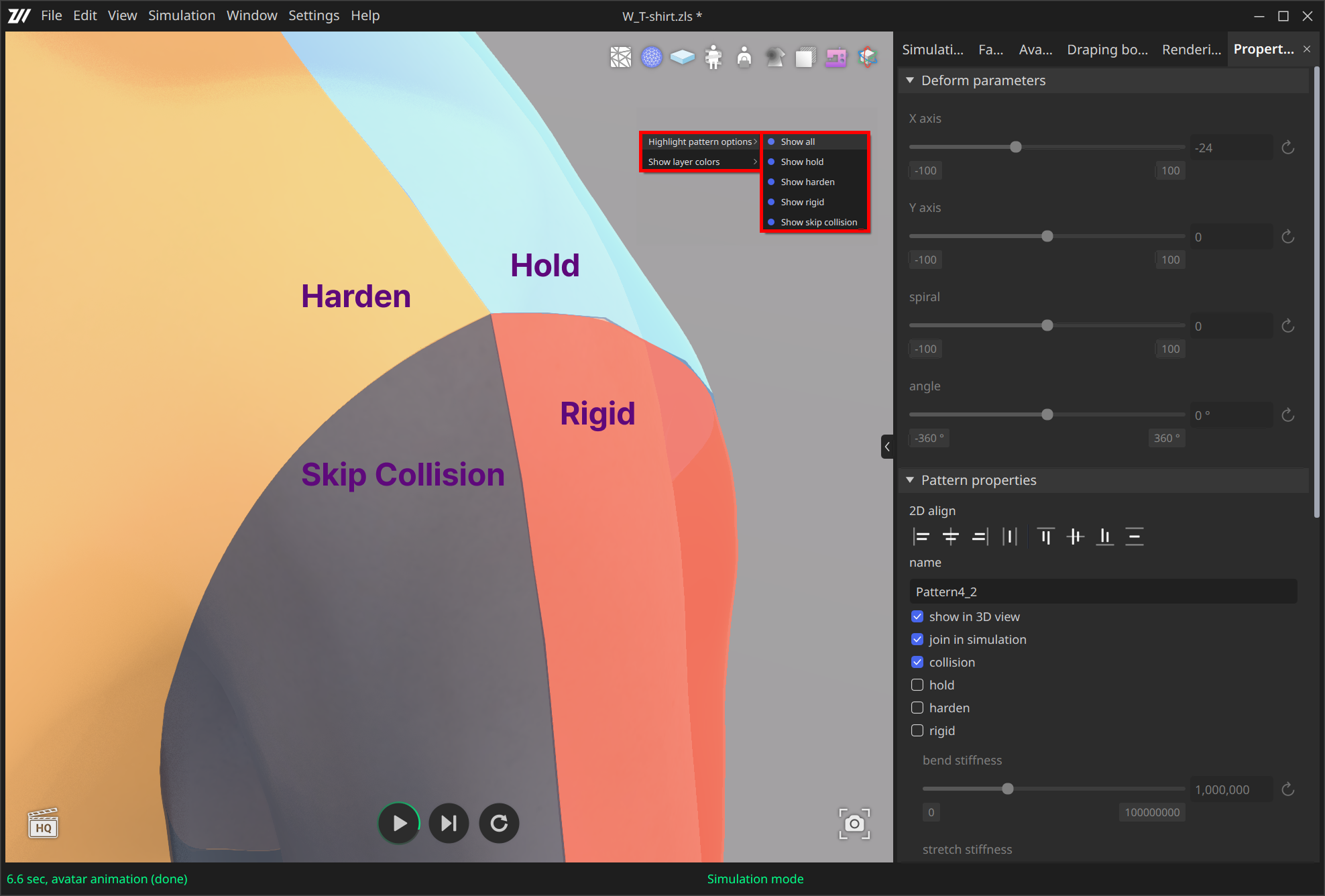

3D View > Right-click > Highlight Pattern Options

Operation Method

1. Right-click on an empty space in the 3D view.
2. Activate the option for the surface to be displayed in the specified color.
3. It is displayed in the 3D view in the color specified according to the pattern option.

Components

Show All

This is an option to activate/deactivate the Show hold pattern (Show hold), Show harden pattern (Show harden), and Show skip collision options at once.
If multiple options are applied to a pattern, the order of priority is Hold - Harden - Skip collision.

Show Hold

This is an option that displays the pattern with the Hold option applied in the specified color (blue) regardless of the applied fabric on the 3D view.

Show Harden

This is an option to display the pattern with the Harden option applied in the specified color (yellow) regardless of the fabric to which it is applied in the 3D view.

Show Skip Collision

This is an option to display patterns with the Skip Collision option disabled in the specified color (white) regardless of the applied fabric on the 3D view.
