Overview

Point merge function is to combine two different endpoints (points) into a unified point.

Location

2D > Outline > Context Menu > Merge

Operation Method

1. Select the one point to be merged in the All Selection Mode or Points Selection Mode.
2. Hold the Shift and select additional points to merge with the previously selected points.
3. Right-click on the points that need to remain fixed, open the context menu and run Merge.
4. The two separate points will be combined into a single point.
   (When performing Merge on points that are apart, the result may vary depending on the point at which the Merge is performed.)

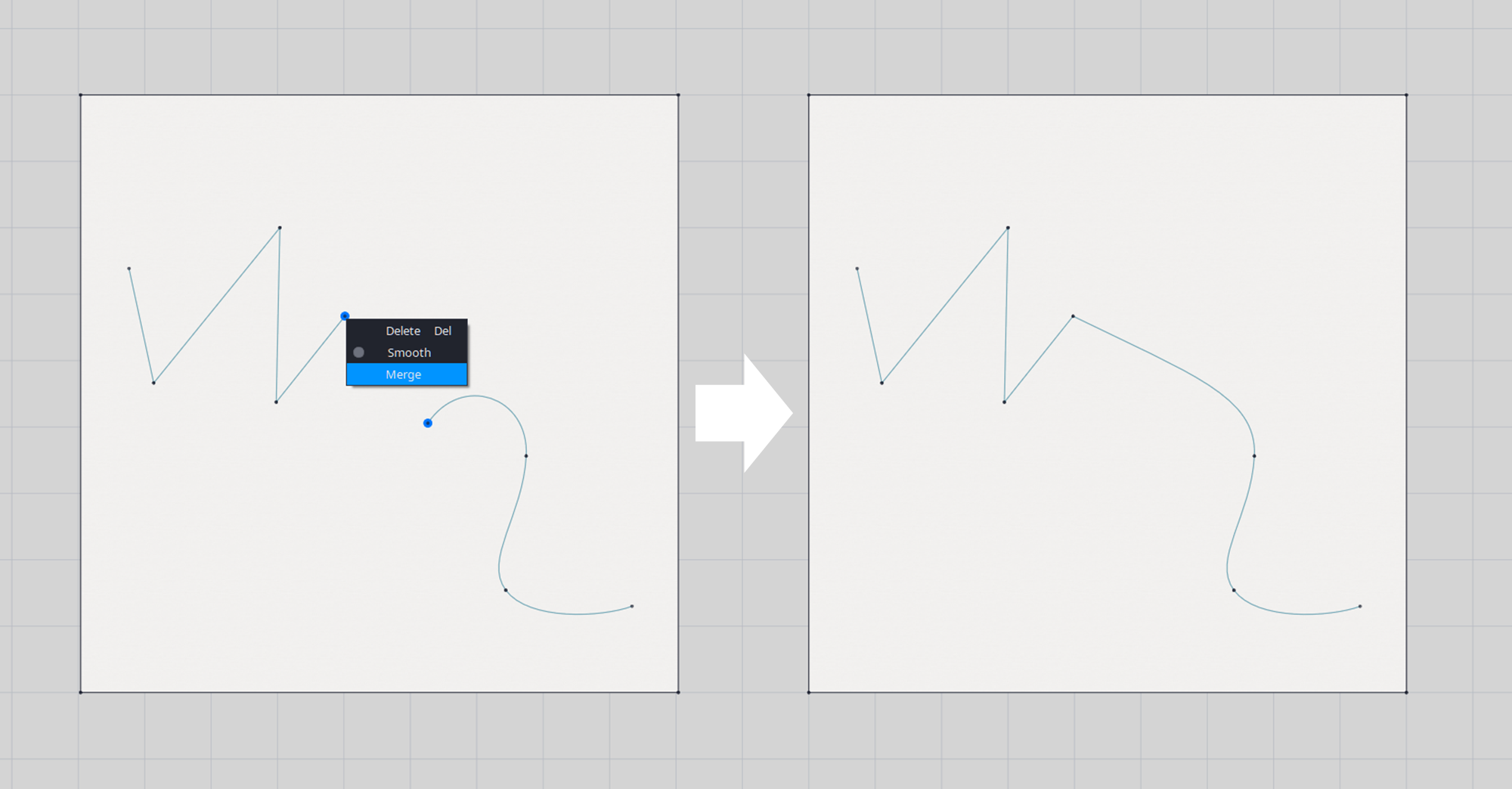

   * In the case of Merge from the left point

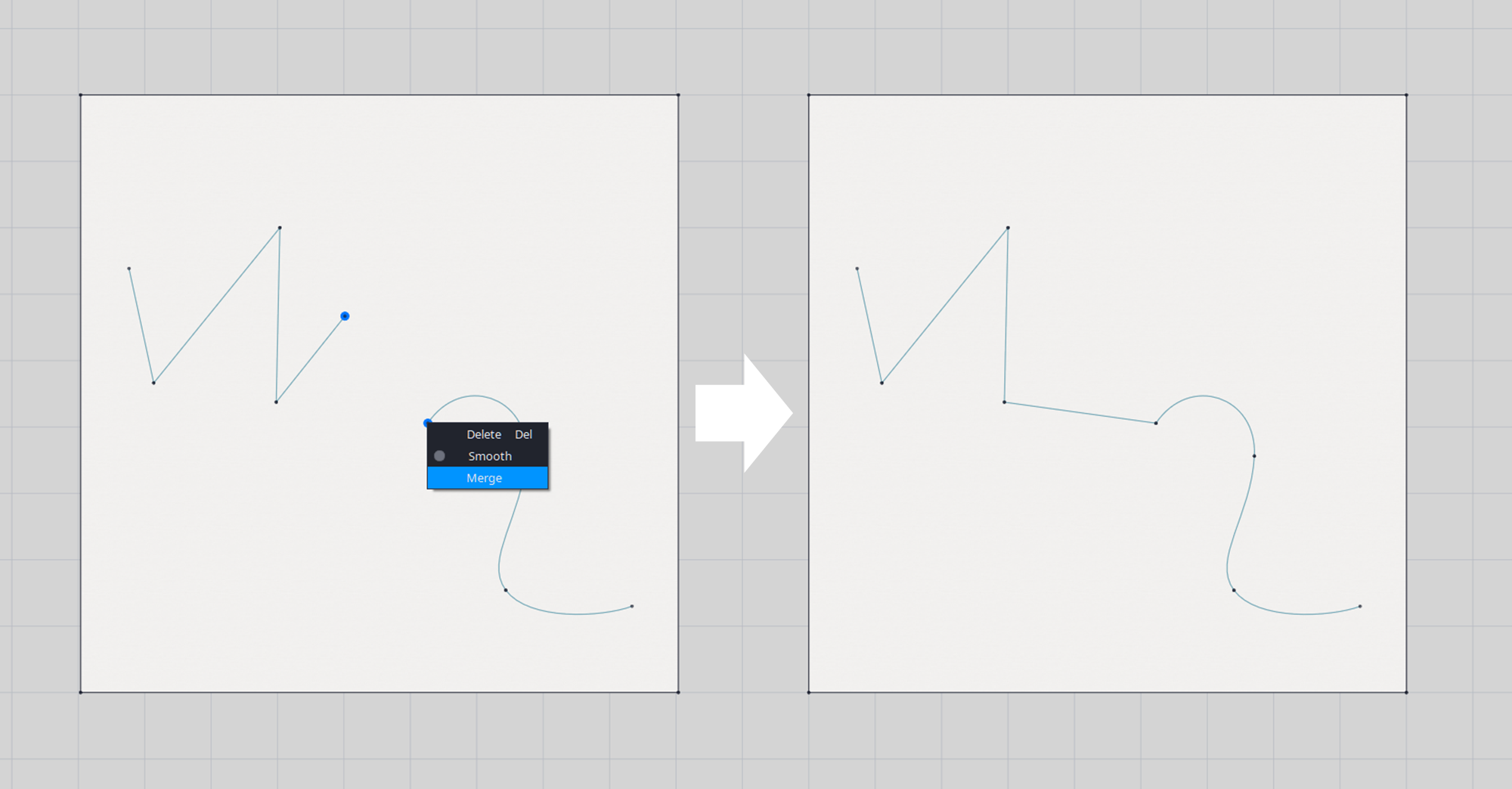

   * In the case of Merge from the right point
