Tack Options

Overview

Tack Options is the function to enable the fixation of the position.



Location

UI Panel > Properties > Tack Properties > Hold position/ Align Perpendicular



Operation Method

  1. Menu bar>Edit>Tack to switch the mouse cursor to Tack creation mode.
  2. Click on the desired location within the pattern surface to create one side of Tack.
  3. Click on the position where the previously created Tack will attach, either inside the pattern surface or on the avatar surface, to create the opposite side of Tack.
  4. Click on the created Tack in the Pin/Tack selection mode.
  5. In the UI panel, go to the UI Panel > Properties > Tack Properties to set the distance and activate the options for hold position or align perpendicular.



Components

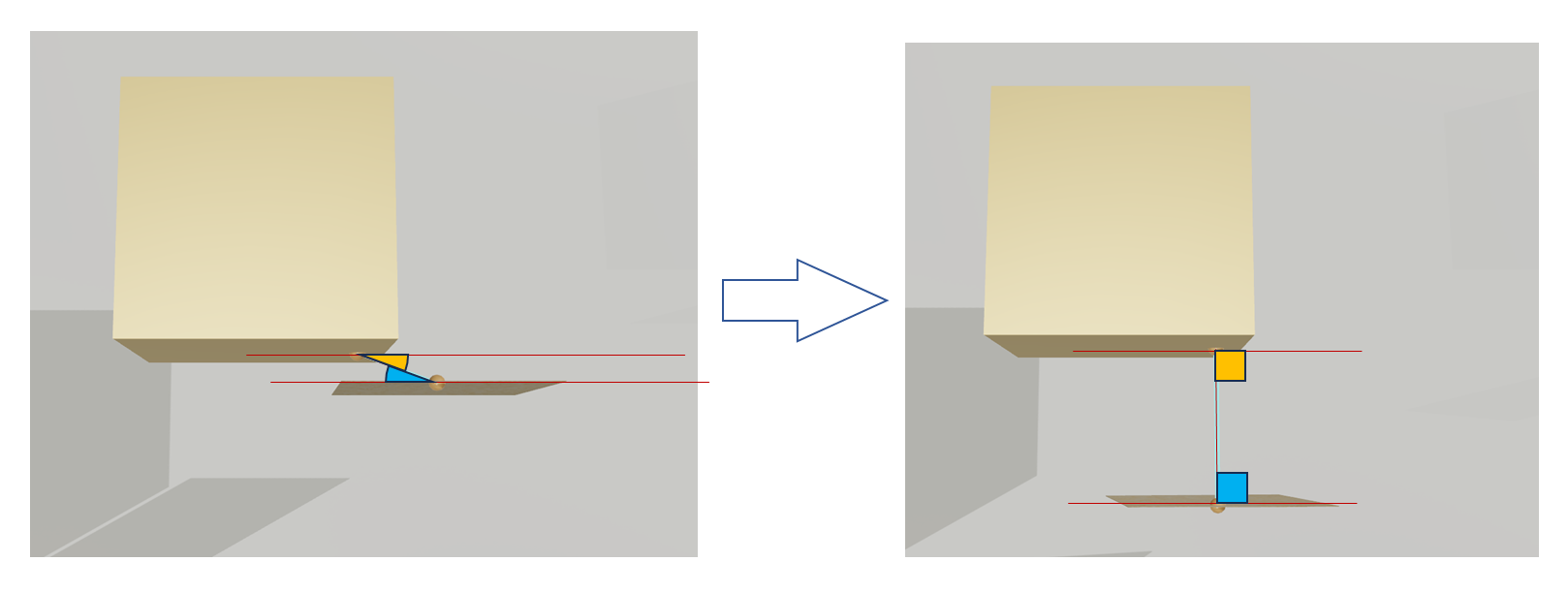

hold position hold position option maintains the angle at the time when the fixed position option is given to the tack.
Untitled
align perpendicular align perpendicular option makes the angle of the tack vertical.
Untitled
