Objective

The Curve is a line between points in the 2D View.

Users are able to select Curve by 2D Selection Tool > Curves/Points

Factor

Outline

An outline is a curve that constructs a surface's outer edges.

In 2D View, it appears as a black line filled inside.

Inner Curve

Inner Curve is a curve that belongs to a Surface. Inner Curve is selected with Surface at the same time and moved together.

In 2D View, the default 180°(flat) Inner Curve is shown as a blue line.

Besides, when users put an angle on Inner Curve, if the angle is over 180°, it is displayed as a purple line, and if it is less than 180°, it is displayed as a yellow line.

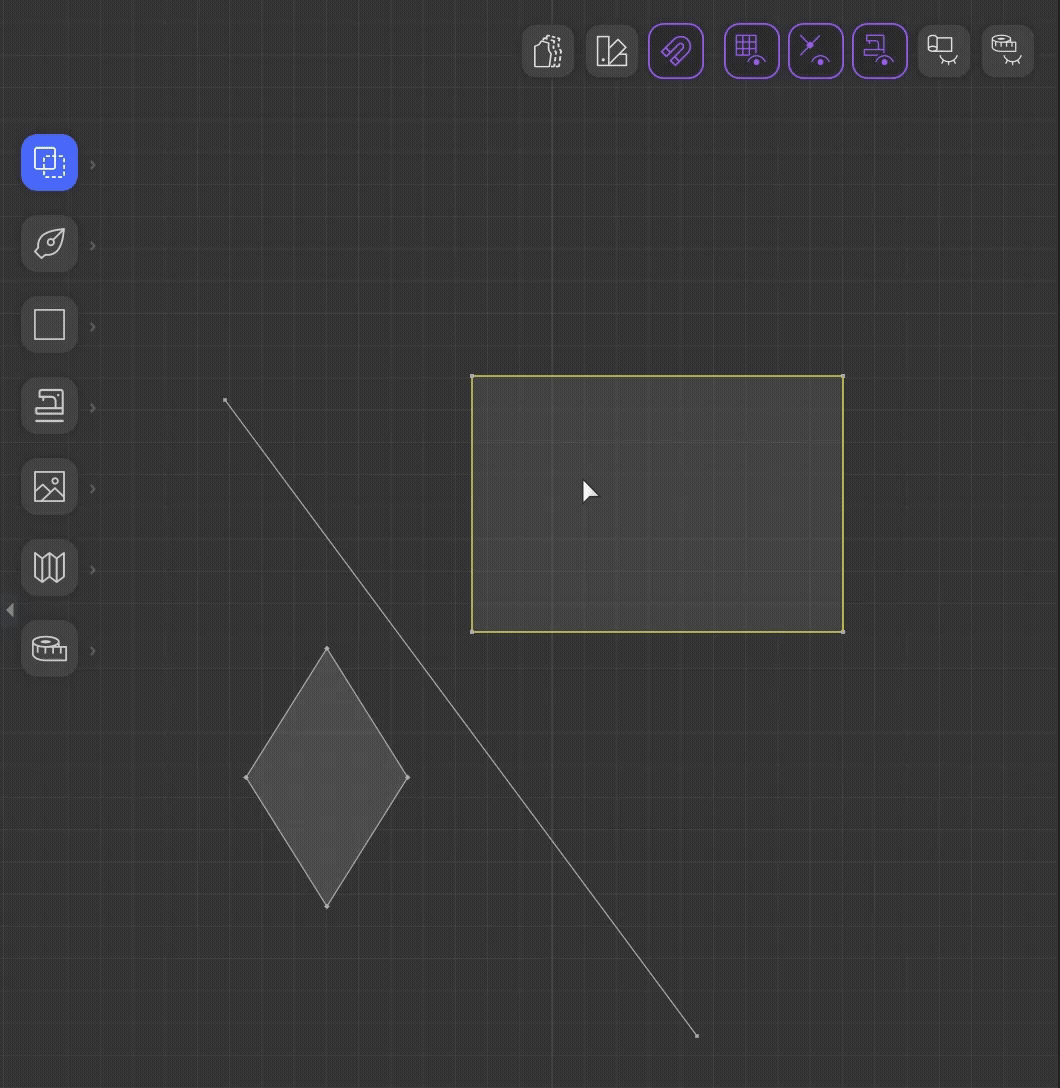

Outer Curve

Outer Curve is a curve that doesn’t belong to the Surface. Unlike the Inner Curve, it operates and moves independently of the Surface.

In 2D View, it appears as a black line not filled inside.

If users delete one of multiple connected Outer Curves, the entire Outer Curve is deleted.

Outer Curve is useful when executing Scissor for overlapped Surfaces.

Deactivated Curve

Deactivated Curve is not allowed to be selected in Surfaces, Curves/Points Selection Mode, so it could be used for the baseline.

In 2D View, it is shown as a green line.

Deactivated Curve is allowed to be selected by the 2D Selection Tool > Deactivated/Guideline Selection Mode.

Operation

Curve

Inner Curve

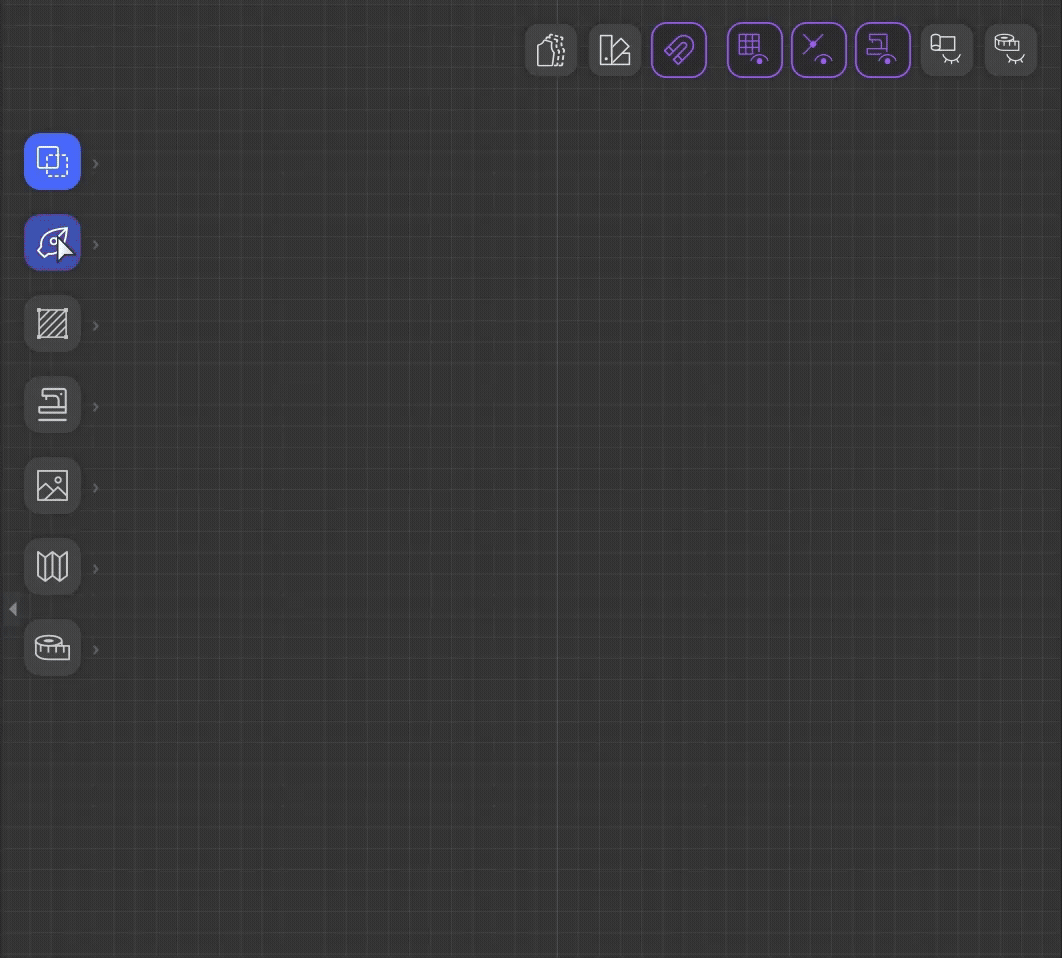

Operation Method 1_Curve Tool

1. Select 2D Action Toolbar > Curve Tool.



2. Pick a start point on a Surface in 2D View.

3. Then click another point to create a straight Line. Or dragging the mouse cursor while picking other points creates a Curve.

4. Press Enter or right-click to create the Inner Curve.

5. Inner Curve is created along the shape drawn by the Curve Tool.

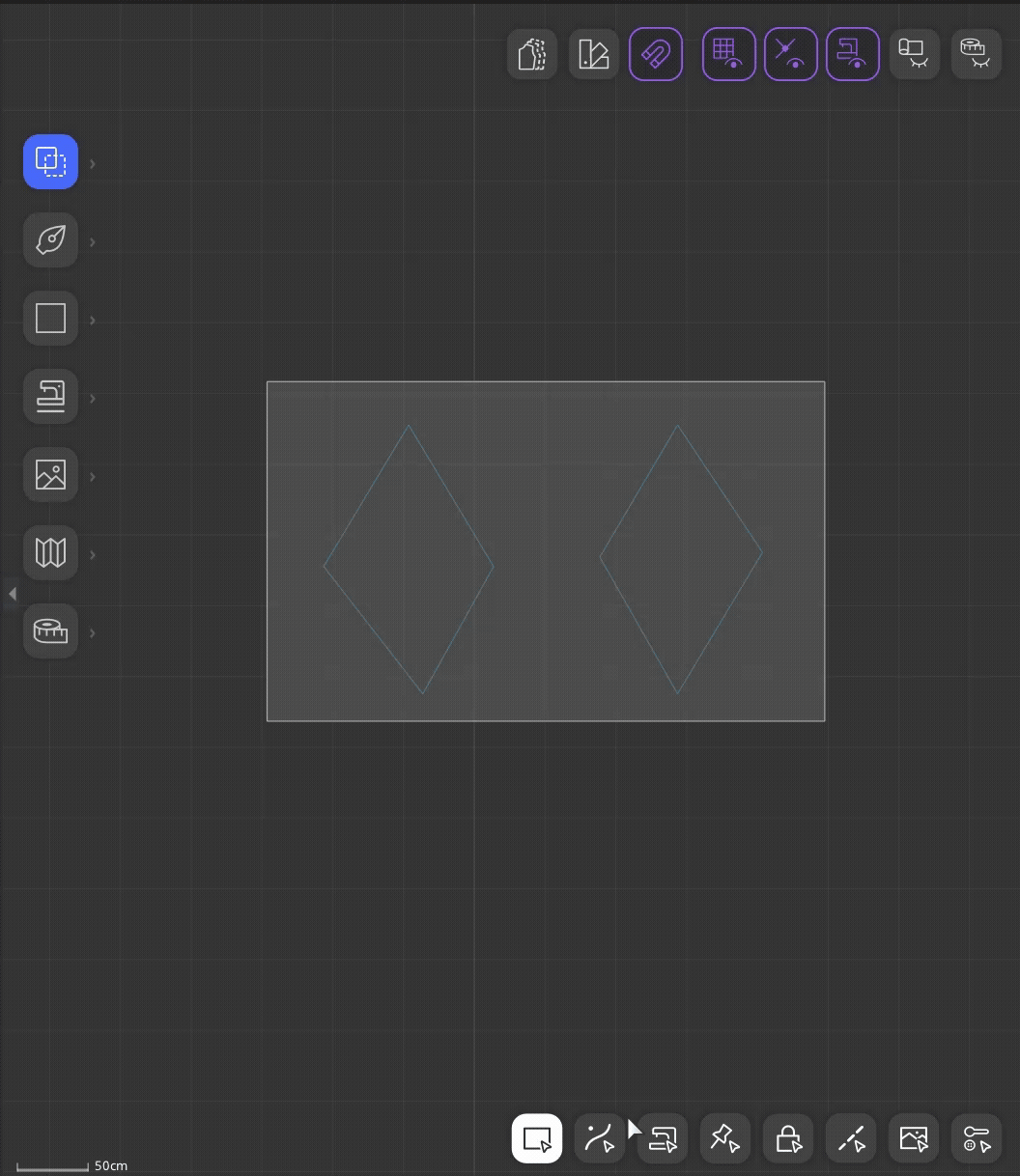

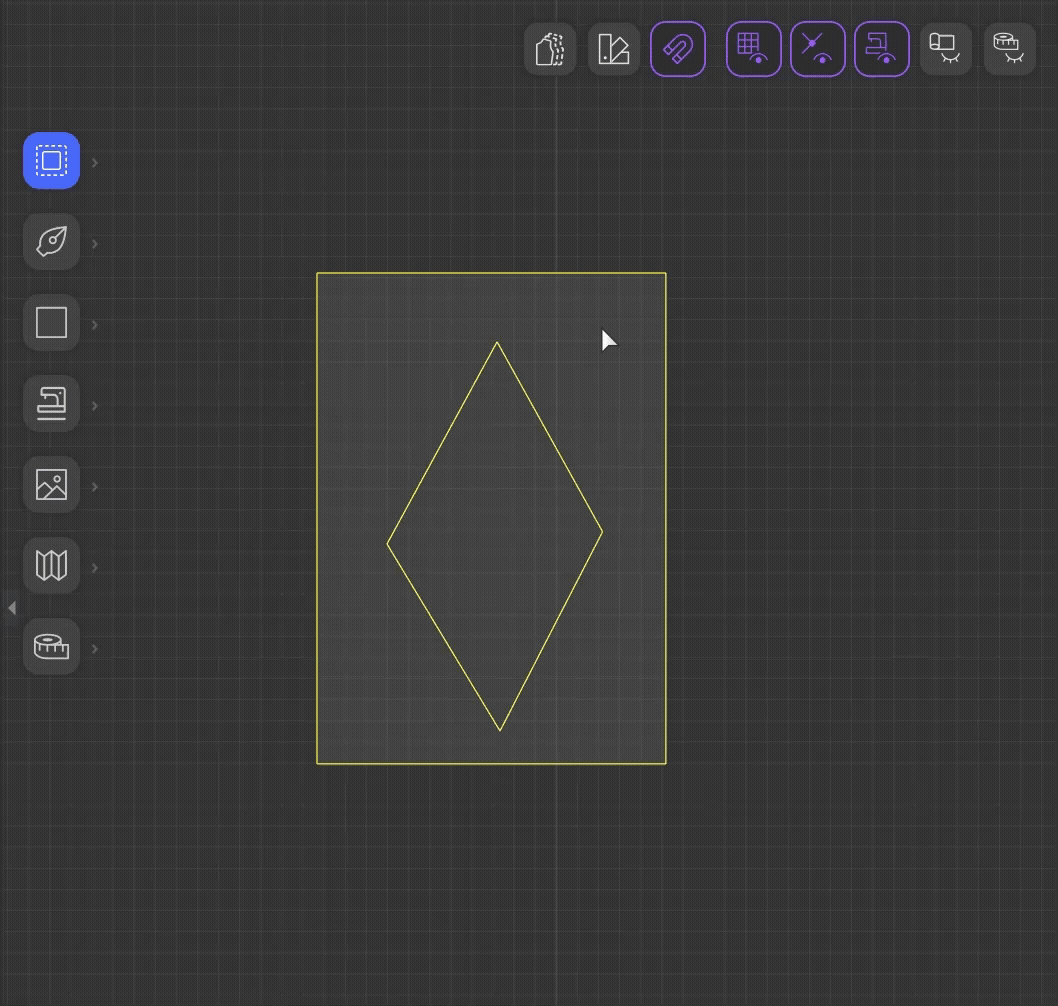

Operation Method 2_Make Inner

1. Place Outer Curve and Outline inside a Surface.
2. Select the Curve you want to convert to an Inner Curve in Curves/Points Selection Mode.
3. Apply Curve > Right Click > Context Menu > Make Inner on Curve.
4. Curve is converted to an Inner Curve belonging to the Surface.

Outline

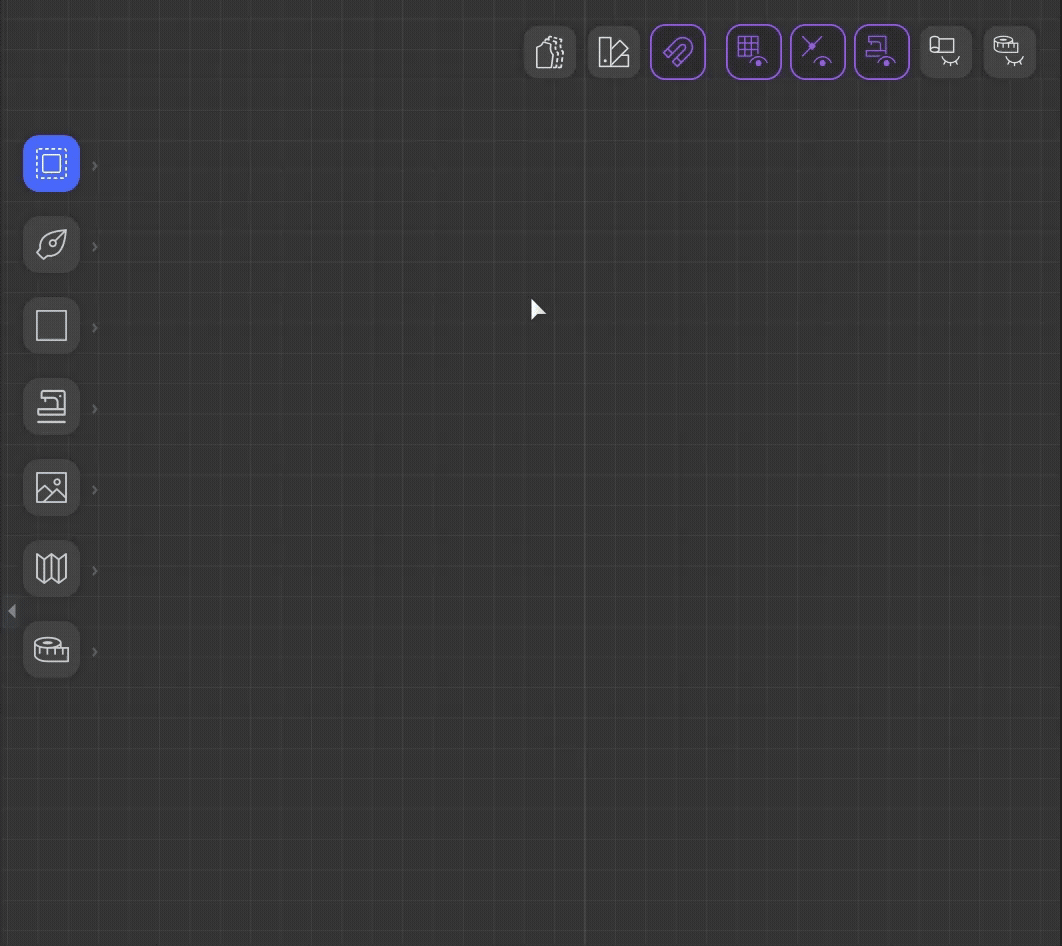

Operation Method 1_Curve Tool

1. Select 2D Action Toolbar > Curve Tool.
2. Pick a start point on any blank space in 2D View.
3. Create more than 3 points and go back to the start point to close curves and make a Surface.
4. The Surface is created as the inside of the closed curve is filled.

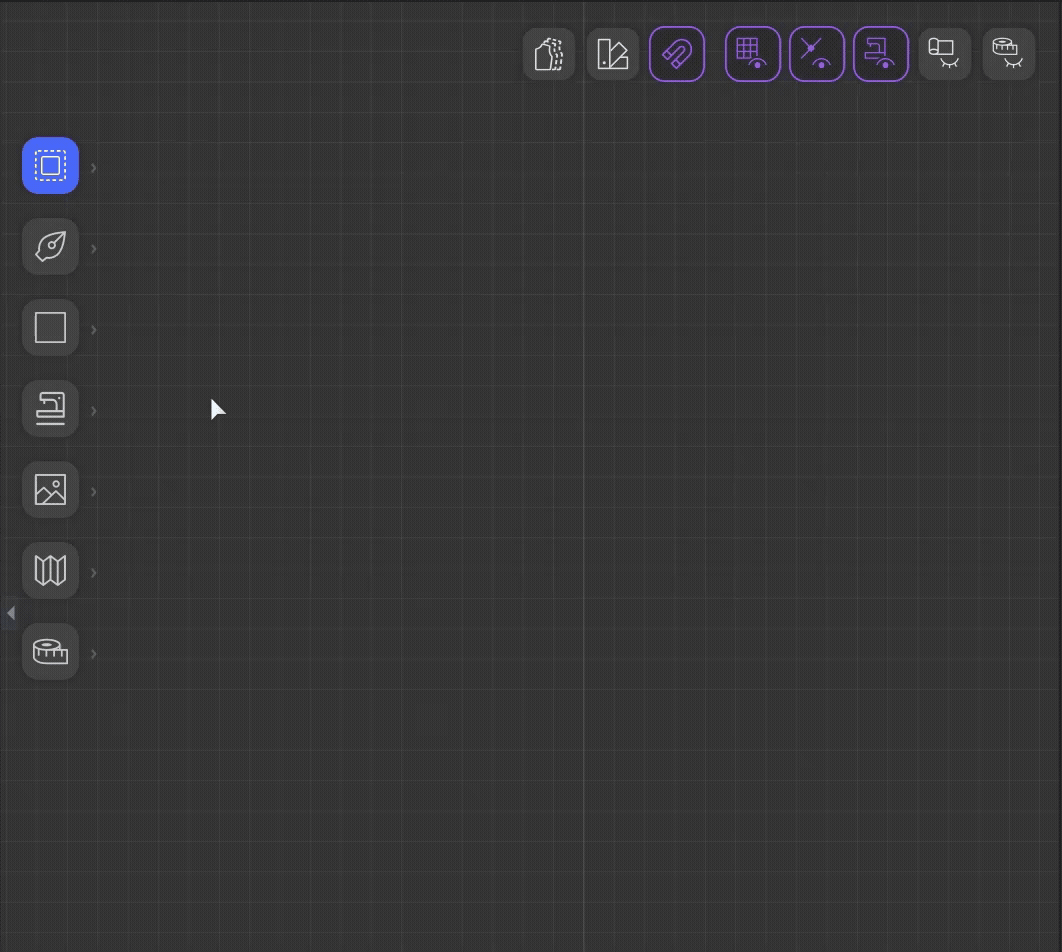

Operation Method 2_Rectangle/Circle Tool

1. Select 2D Action Toolbar > Rectangle Tool, Circle Tool.
2. Pick a start point on any blank space in 2D View.
3. Create the desired size of the figure by mouse dragging.

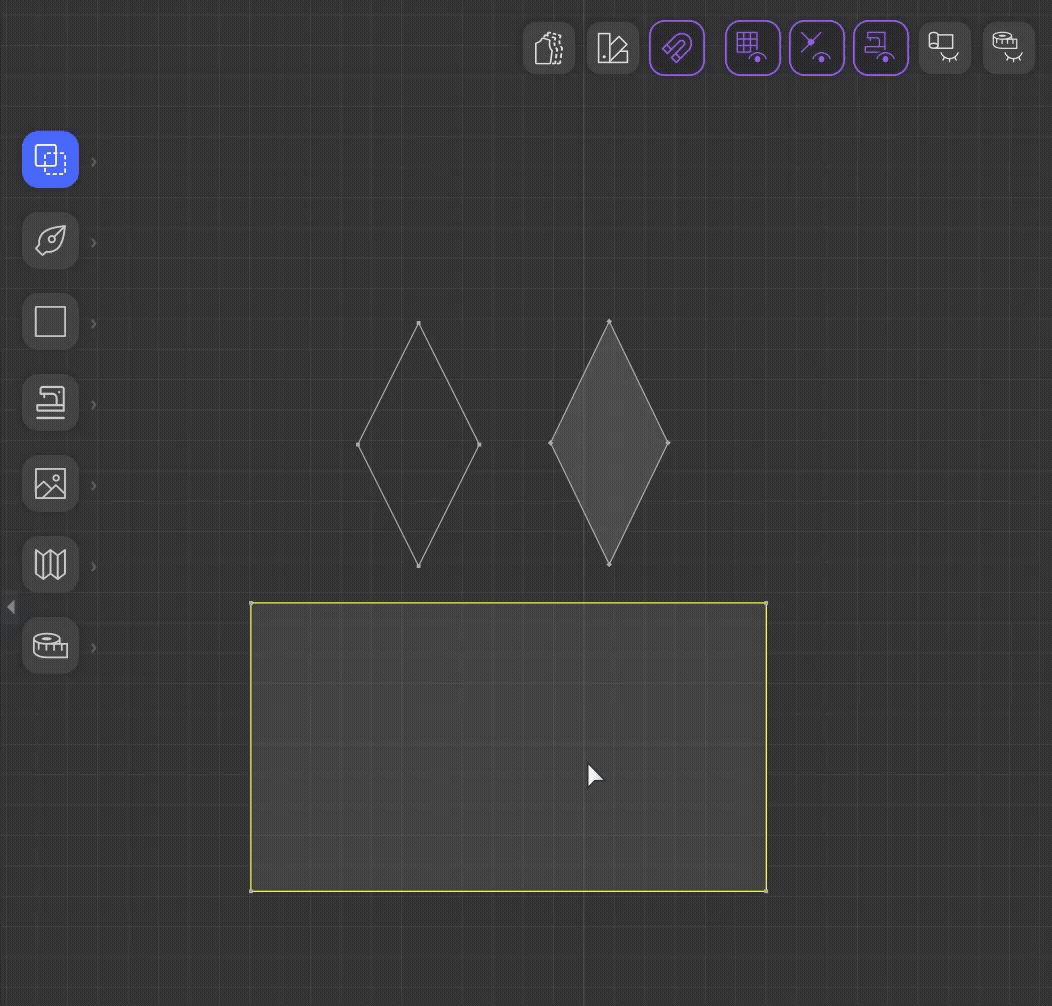

Operation Method 3_Surface Tool

1. Select 2D Action Toolbar > Surface Tool.

2. Select Inner Curve/Outline/Outer Curve that form a closed shape.

3. Create the Surface.

4. Press Enter to create a Surface composed of the selected Curve.

   (Selected Curve should construct a closed figure, and multiple types of Curve allow selection at the same time.)

5. The Surface is created as the inside of the closed curve is filled.

Operation Method 4_DXF Import

1. Go to Menu Bar > File > Import > DXF.
2. Select a DXF format file in the file explorer.
3. Set options on the Import Option message box ****and click the OK button.
4. DXF Pattern appears as a Surface in the 2D View.

Outer Curve

Operation Method 1_Curve Tool

1. Select 2D Action Toolbar > Curve Tool.
2. Pick a start point on any blank space in 2D View.
3. Then click another point to create a straight Line. Or dragging the mouse cursor while picking other points creates a Curve.
4. Draw the desired Curve shape and press Enter or right click to create Outer Curve.
5. Outer Curve is created along the shape drawn by the Curve Tool.

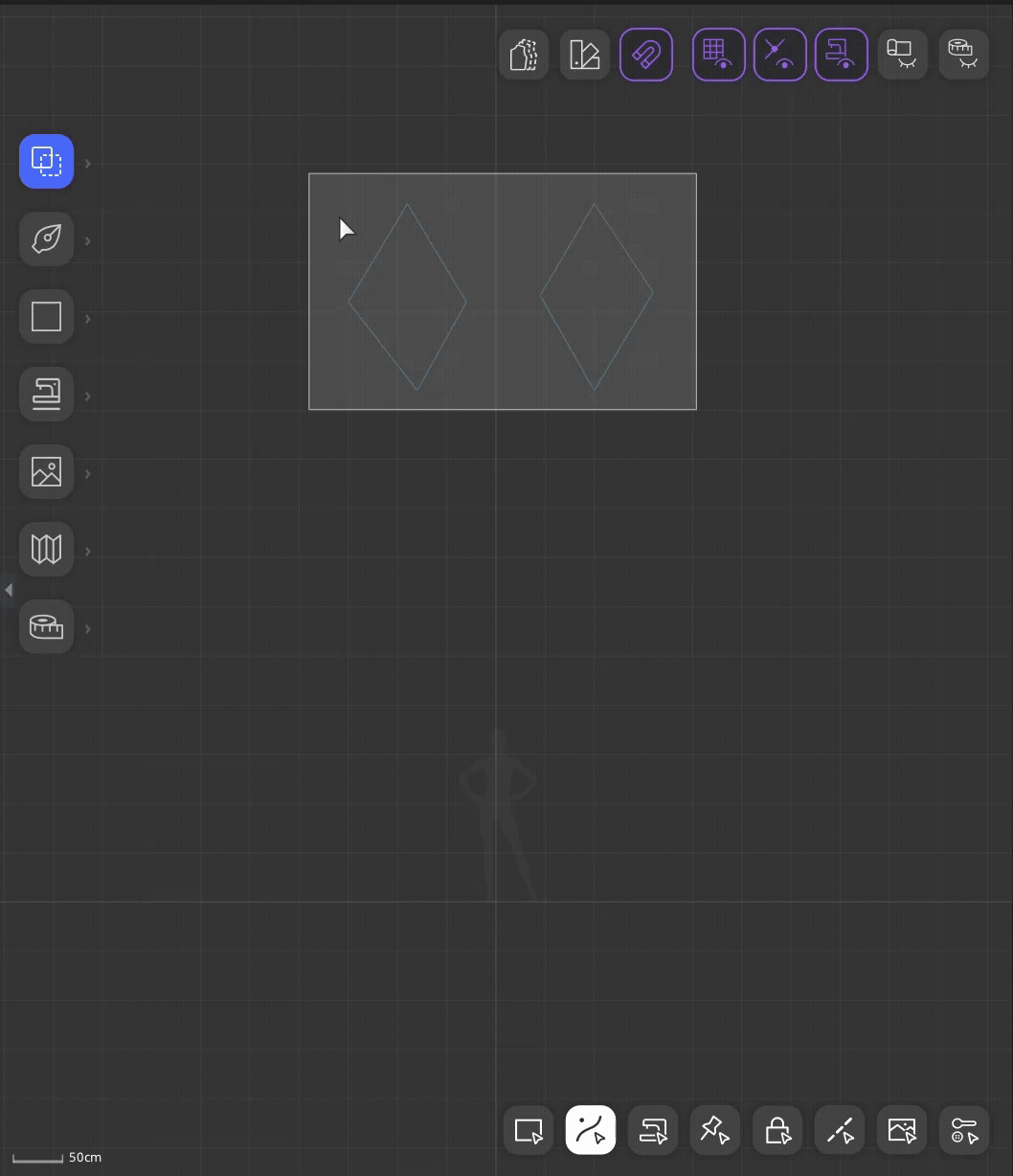

Operation Method 2_Separate from Surface

1. Select ****the Inner Curve you want to convert to Outer Curve in Curves/Points Selection Mode.

   (Selected Inner Curve should not construct a closed figure. If selected Inner Curve construct closed figure it will be converted to Surface.)

2. Apply Curve > Right Click > Context Menu > Separate from Surface on selected Inner Curve.

3. Inner Curve is ****converted to Outer Curve, separated from Surface.

Deactivated Curve

Operation Method

1. Select the Inner Curve you want to convert to the Deactivated Curve in Curves/Points Selection Mode.

2. Turn off Curve > Right Click > Context Menu > Active option.

3. Inner Curve is converted to Deactivated Curve, and the color changes to green.

   Deactivated Curve is not allowed to be selected in Curves/Points Selection Mode, but only in Deactivated/Guideline Selection Mode.

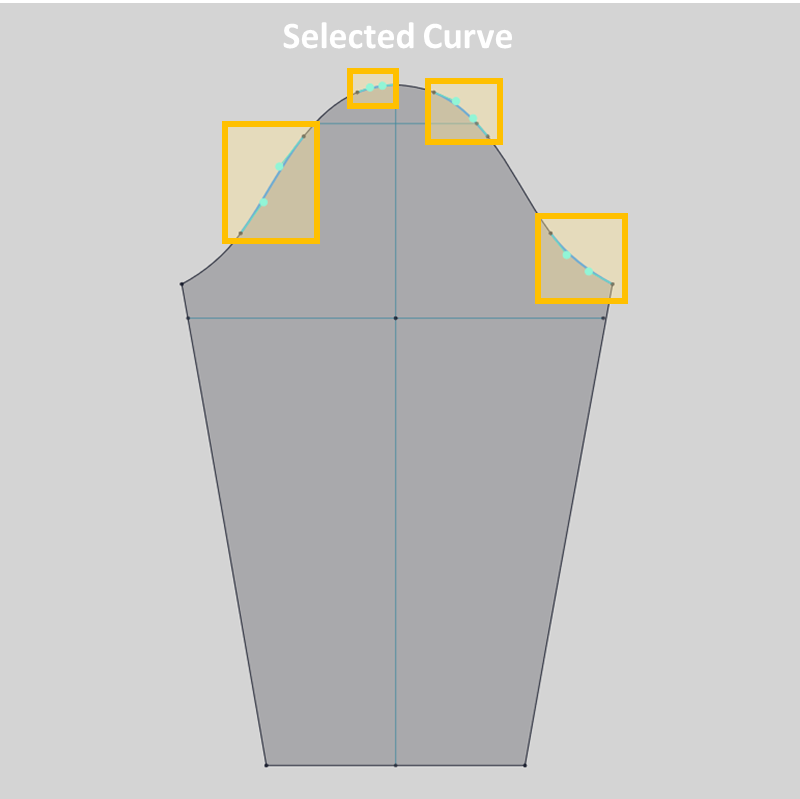

Selection Method 1_ Multi Select Curves (Shift)

1. Select Curve by Curves/Points Selection Mode

2. Select another Curve while pressing the Shift key.

3. The Curves are multi-selected.

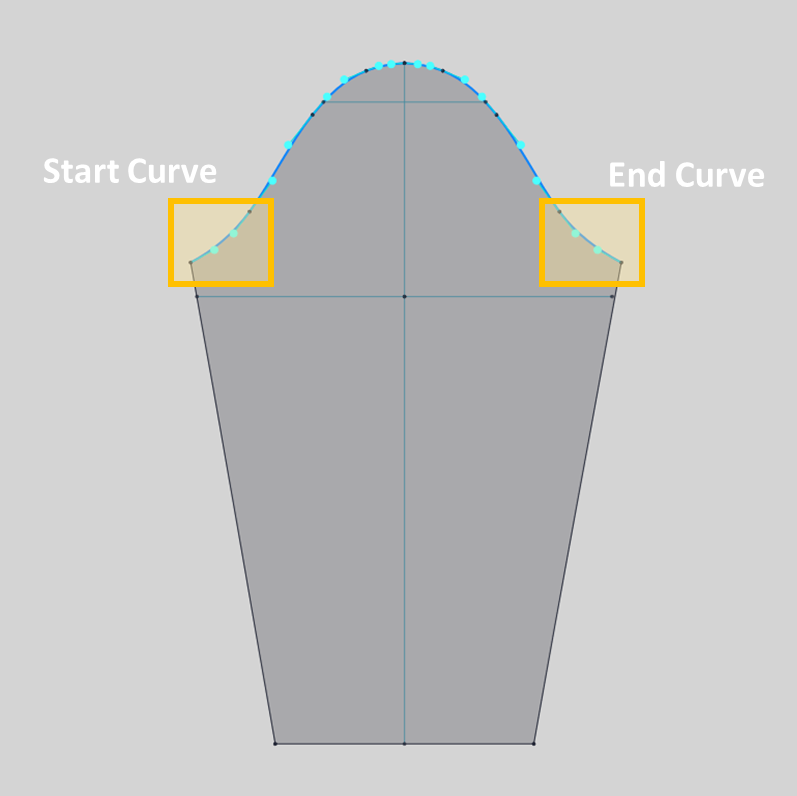

Selection Method 2_ Multi Select Consecutive Curves (Shift+Ctrl)

1. Select Start Curve by Curves/Points Selection Mode

2. Select another Curve as the End Curve while pressing the Shift+Ctrl key.

3. The Curves between the Start Curve to the End Curve are multi-selected.
