Point

  • Updated

Overview

Point is a component of Surface and Curve in 2D view.

Point is visible when 2D Viewing Toolbar > Point is activated. And users are able to select Point by 2D Selection Tool > All/Points.



Location

2D Viewing Toolbar > Point
2D Selection Tool > All/Points



Operation Method

Operation Method 1_Create Point


  1. Select 2D Action Toolbar > Curve Tool / Rectangle Tool / Circle Tool.
  2. Create Curve and Surface using selected 2D Action Tool.

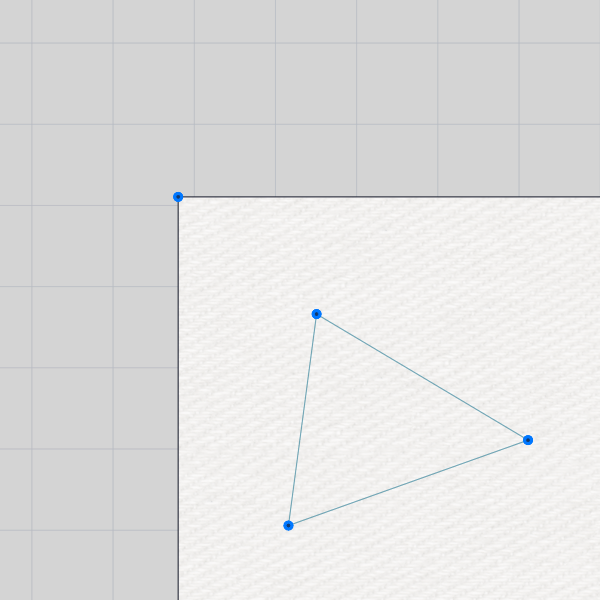

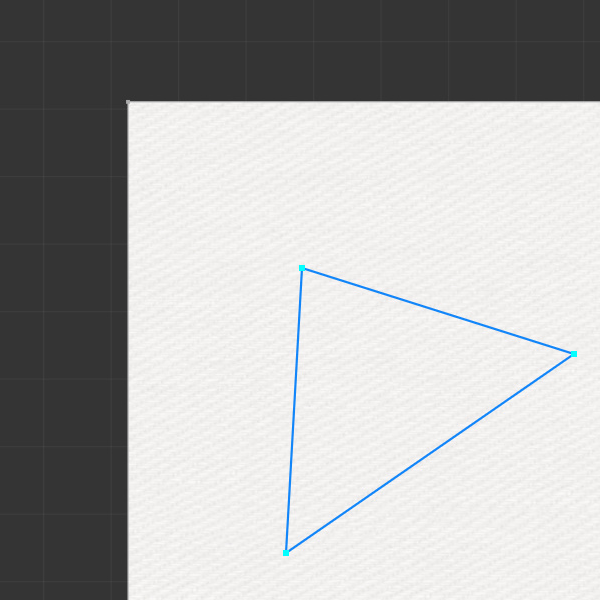

  3. Point is created at both ends of the Curve and corner of the Surface.

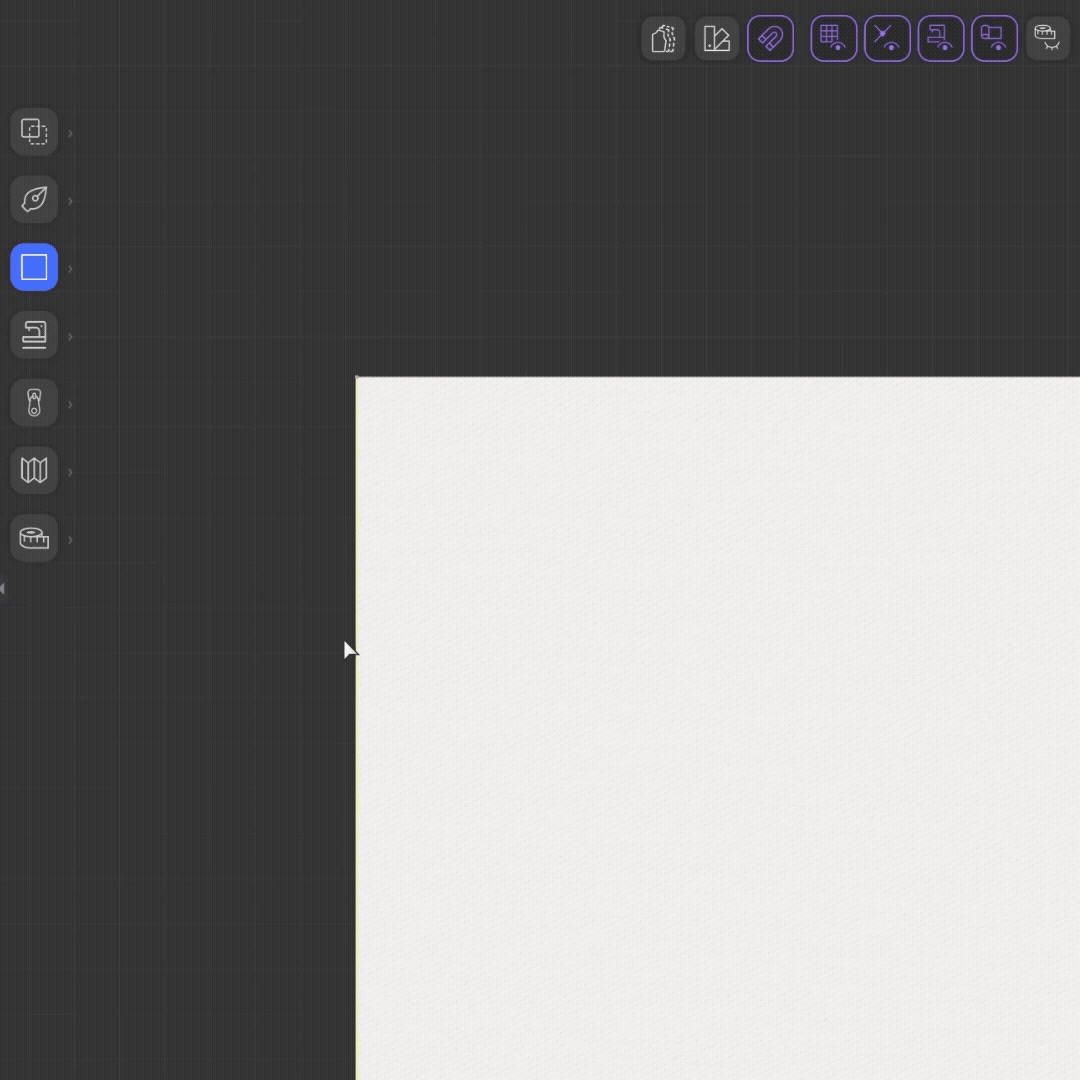

Operation Method 2_Smooth Point

Untitled.png Untitled.png

  1. Select Point by All /Points Selection Mode

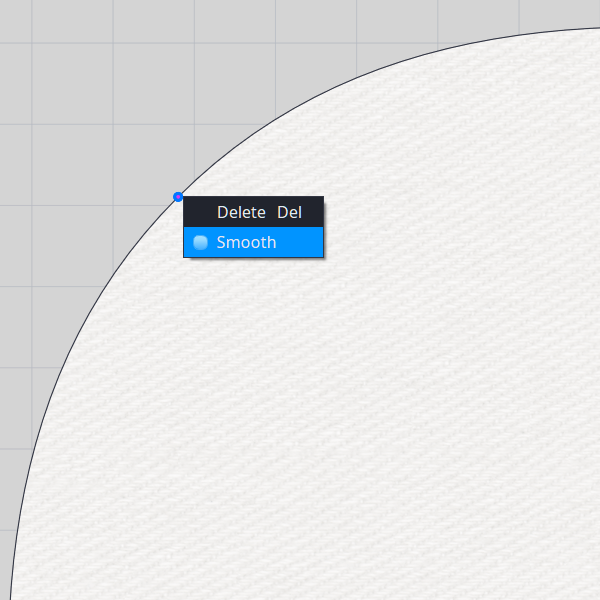

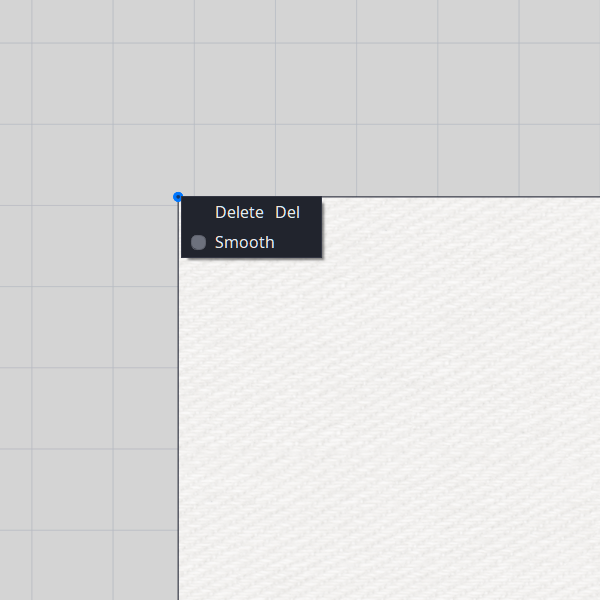

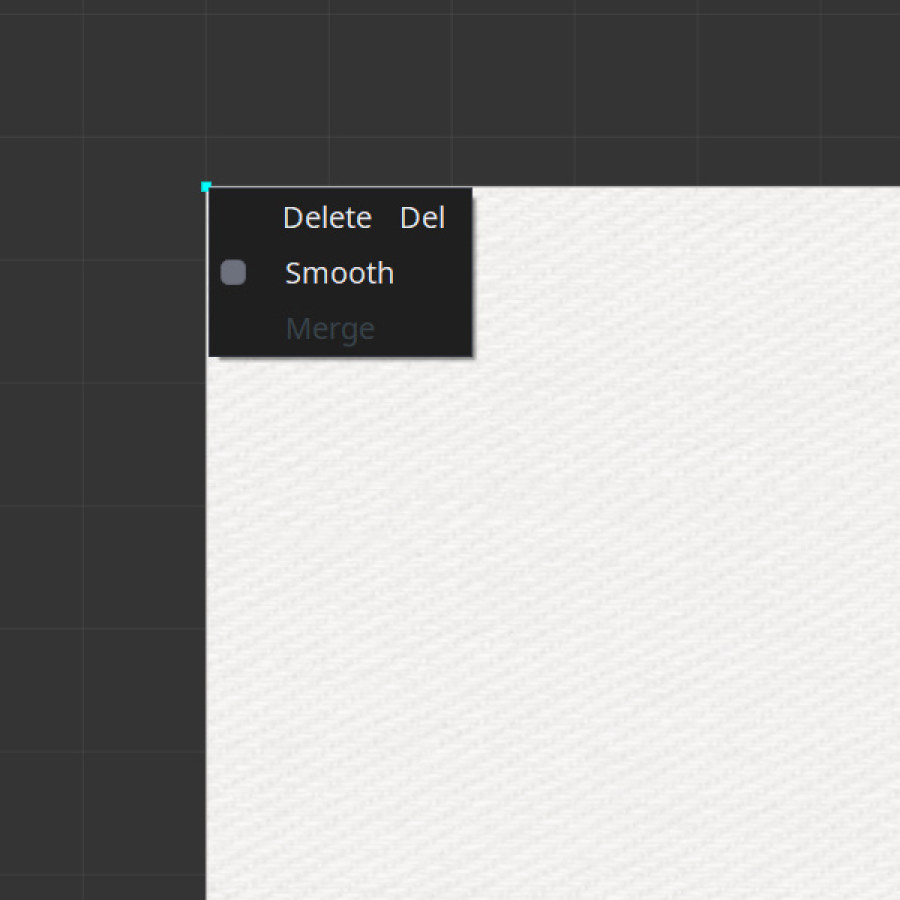

  2. Activate Smooth option by Point >Right Click > Context Menu > Smooth
  3. The Point corner turned to round shape and the color changes to pink.

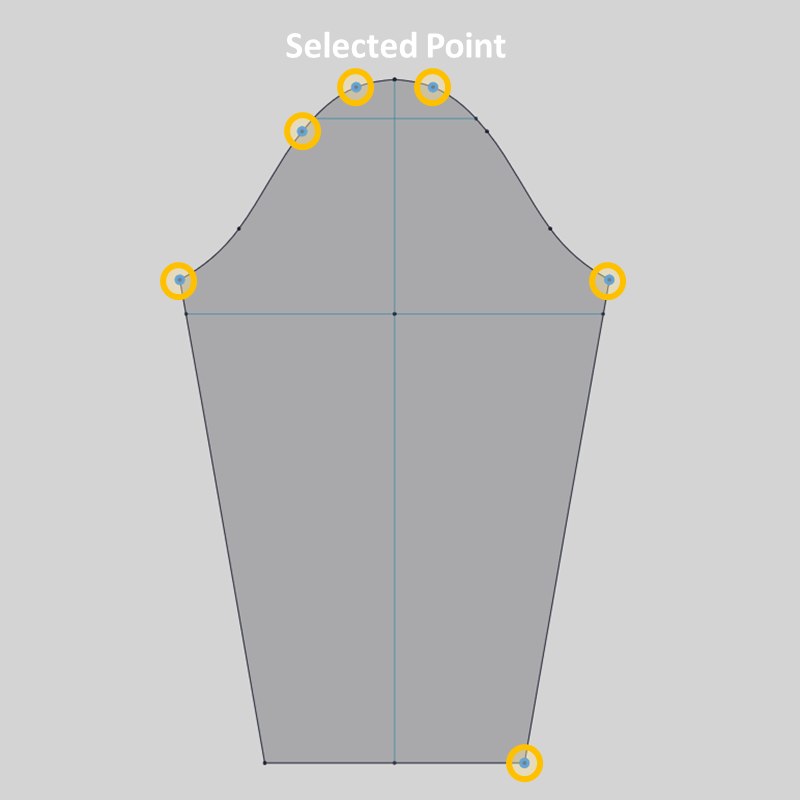

Selection Method 1_ Multi Select Points (Shift)


  1. Select Point by All /Points Selection Mode
  2. Select another Point while pressing Shift key.
  3. The Points are multi-selected.

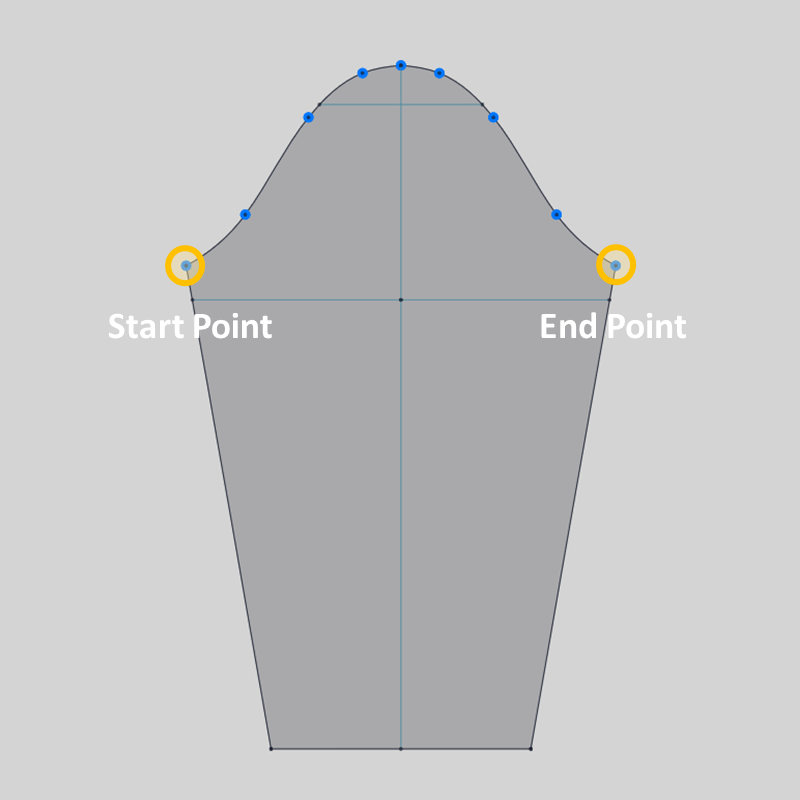

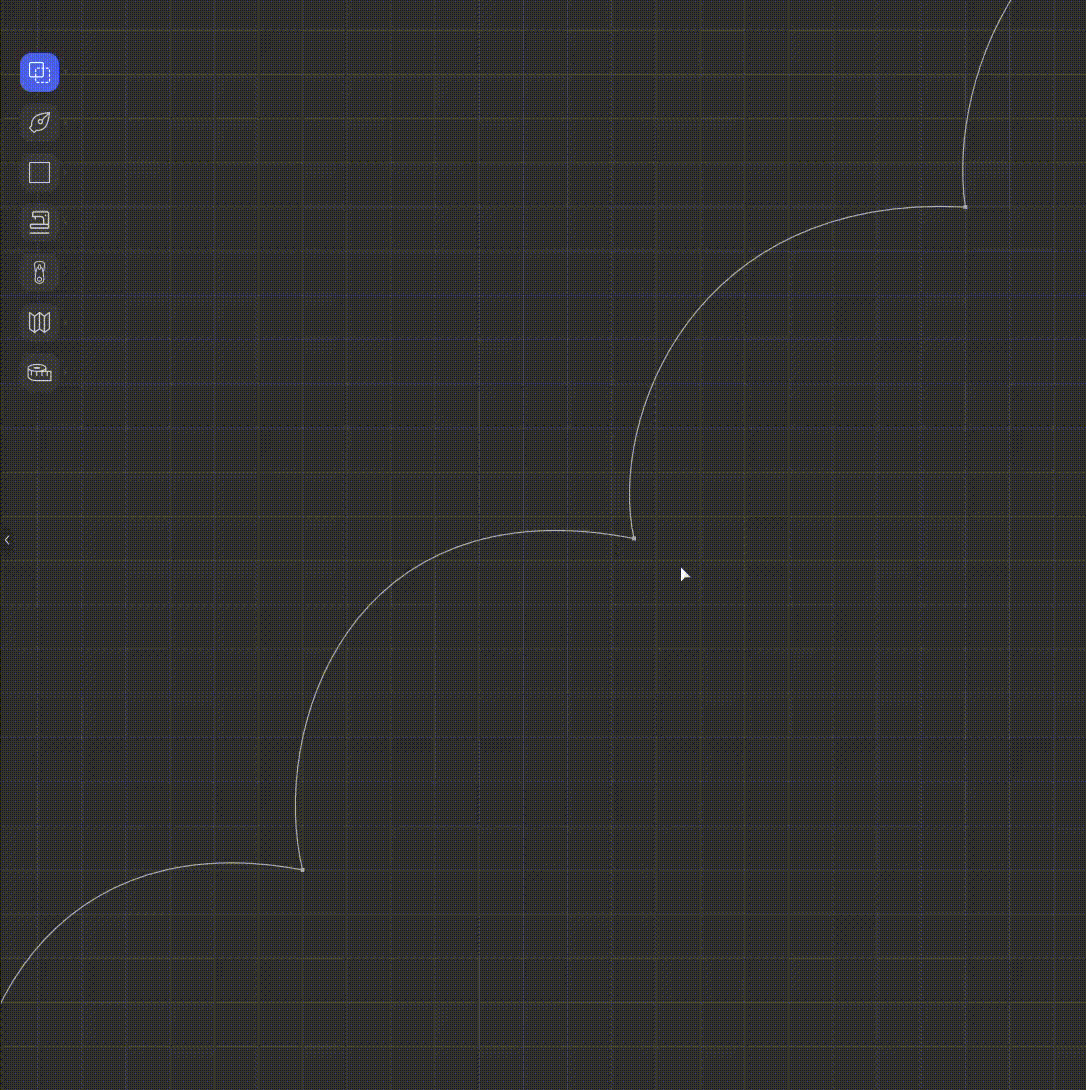

Selection Method 2_ Multi Select Consecutive Points (Shift+Ctrl)


  1. Select Start Point by All /Points Selection Mode
  2. Select another Point as End Point while pressing Shift+Ctrl key.
  3. The Points between Start Point to End Point are multi-selected.



Components

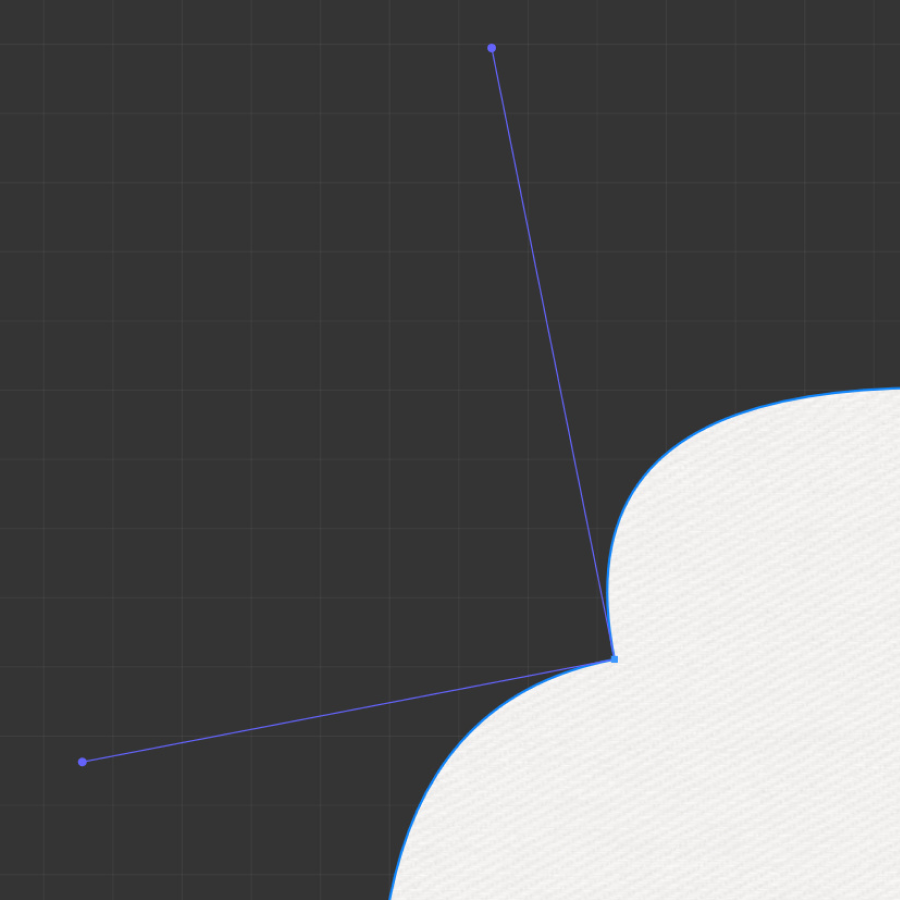

Point

Point is created when Surface or Curve is created.

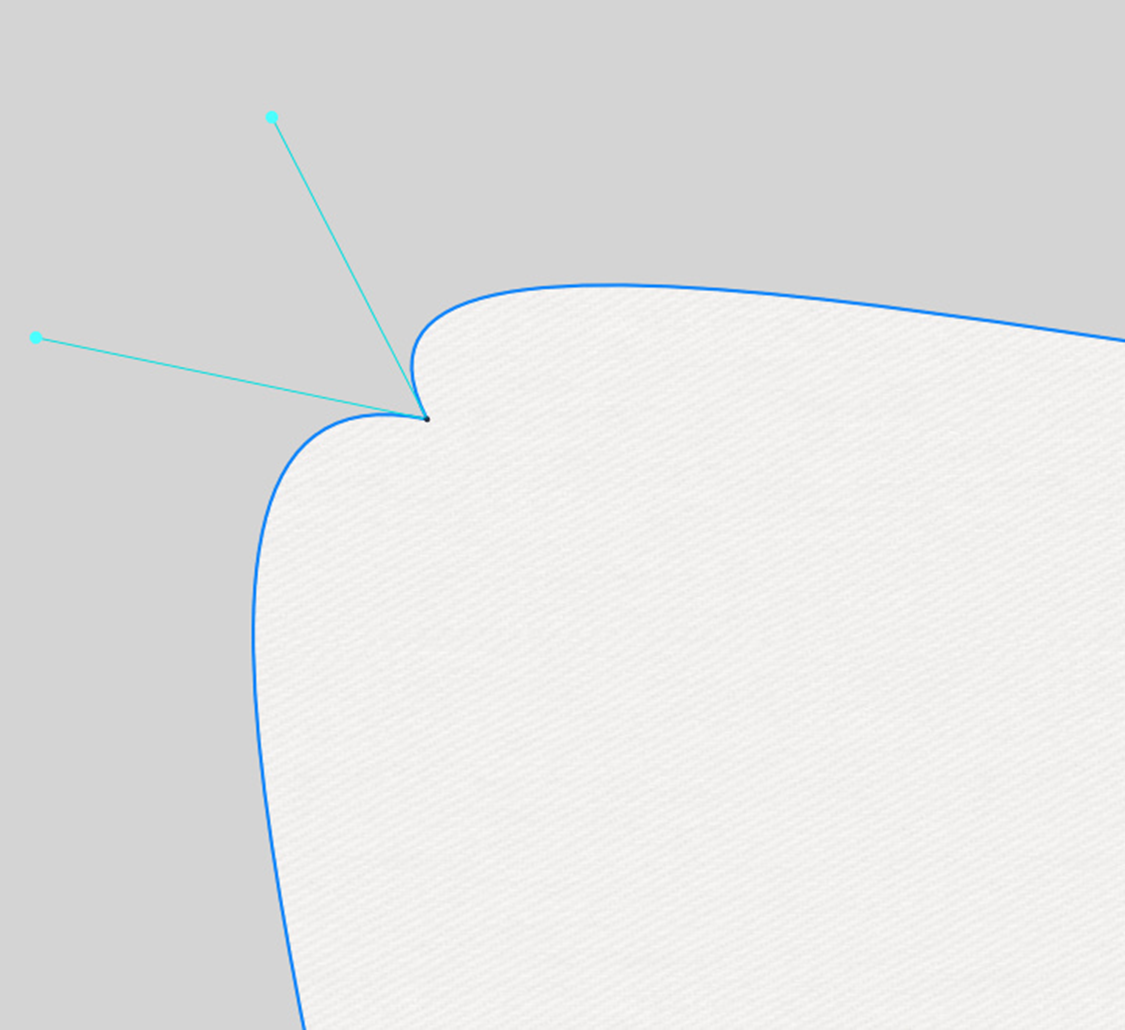

On Point, users are able to control Curve Handle on right and left both sides freely.

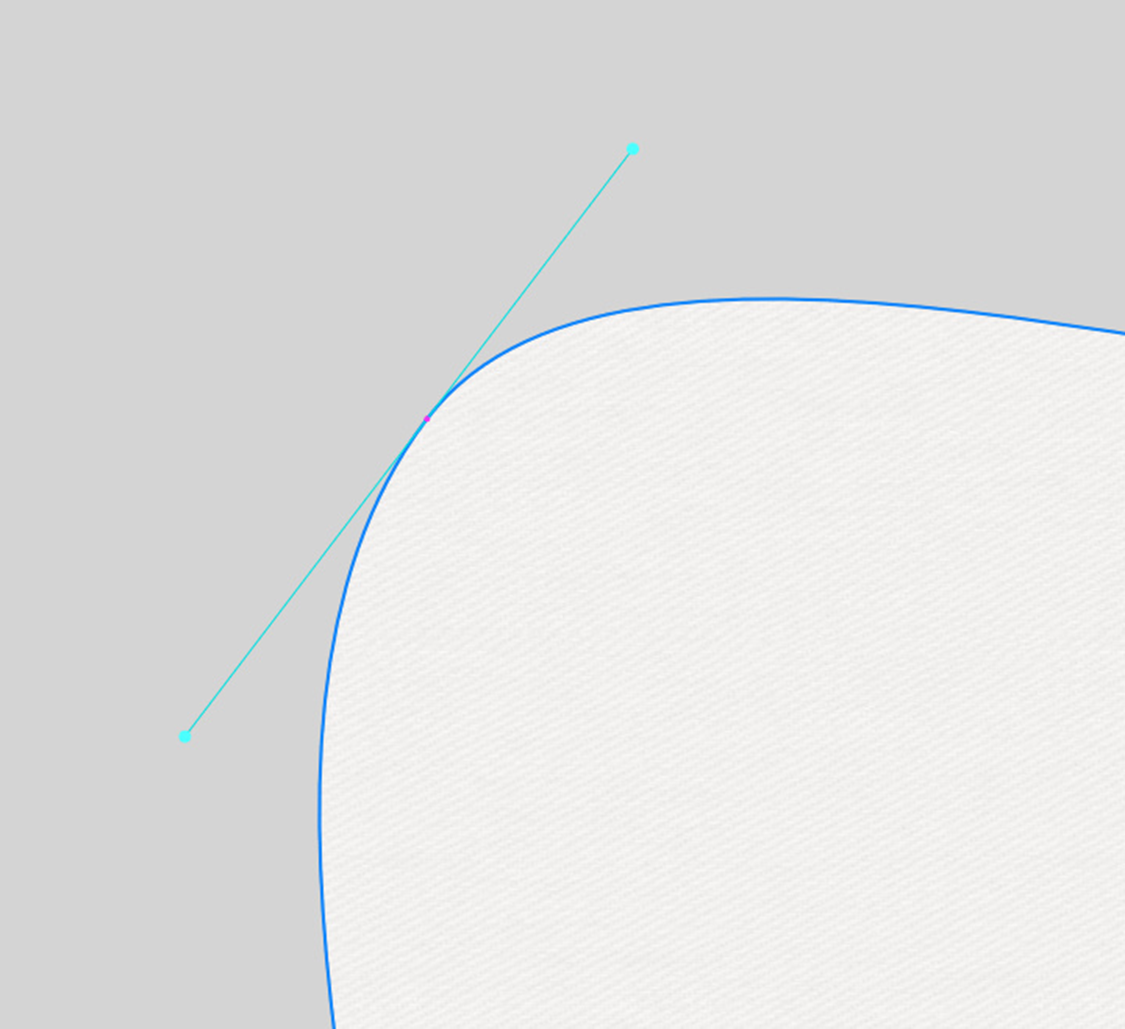

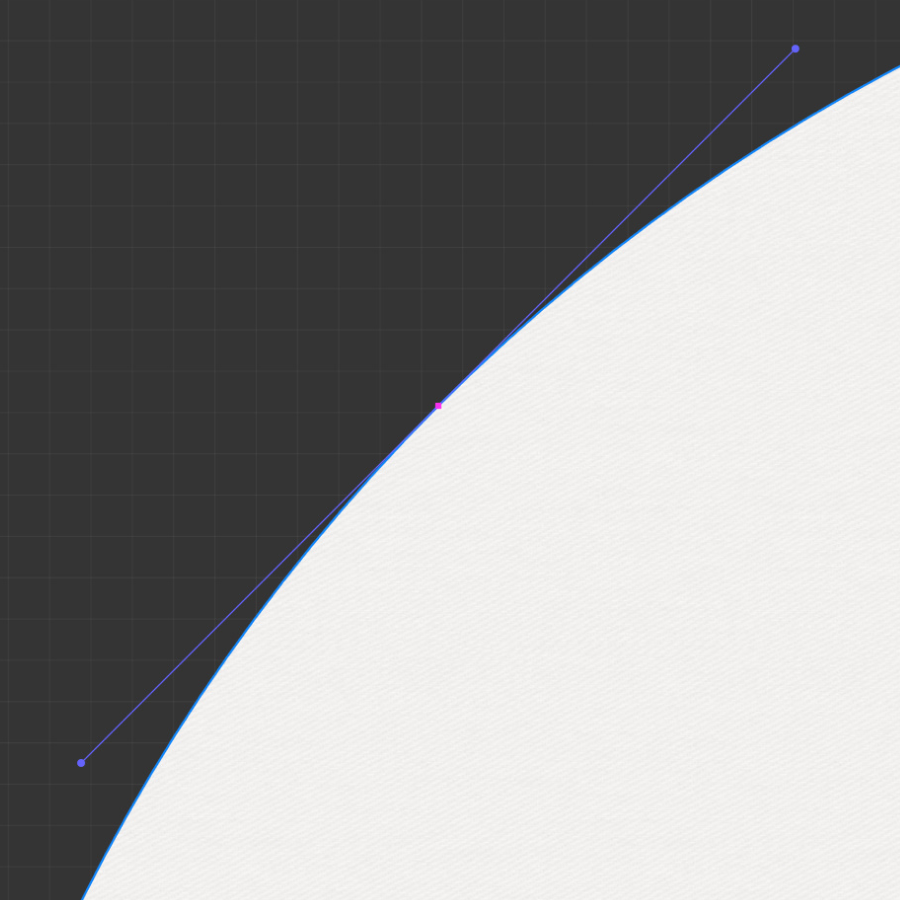

Smooth Point

On Smooth Point, Curve Handle on both sides of Smooth Point always keep horizontal.
