Overview

Body parameter is a function for creating avatars with various body types.

Body parameter controls body size with accurate parameter values.

Body parameter (ratio) is easy to adjust without using specific parameter values.

Location

UI Panel > Avatar > Default > Body parameter

UI Panel > Avatar > Default > Body parameter (ratio)

Operation Method

Body Parameter

1. Select avatar mesh and go to UI Panel > Avatar > Deafult > Body Parameters(cm).
2. Enable body parameter options for the avatar parameter that you wish to set.
3. Check the body type in 3D view, then adjust the parameters.

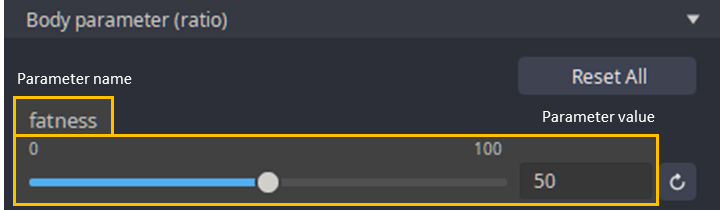

Body Parameter (ratio)

1. Go to UI Panel > Avatar > Default > Body Parameters(ratio).
2. Enter the desired value or adjust the slider.
3. Check the body type in 3D view, then adjust the parameters.

Components

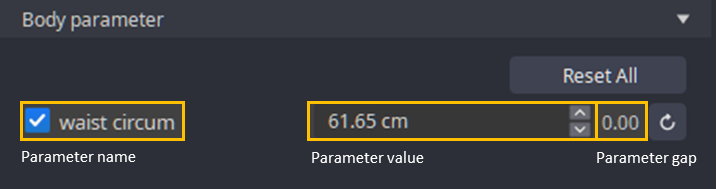

Body Parameter

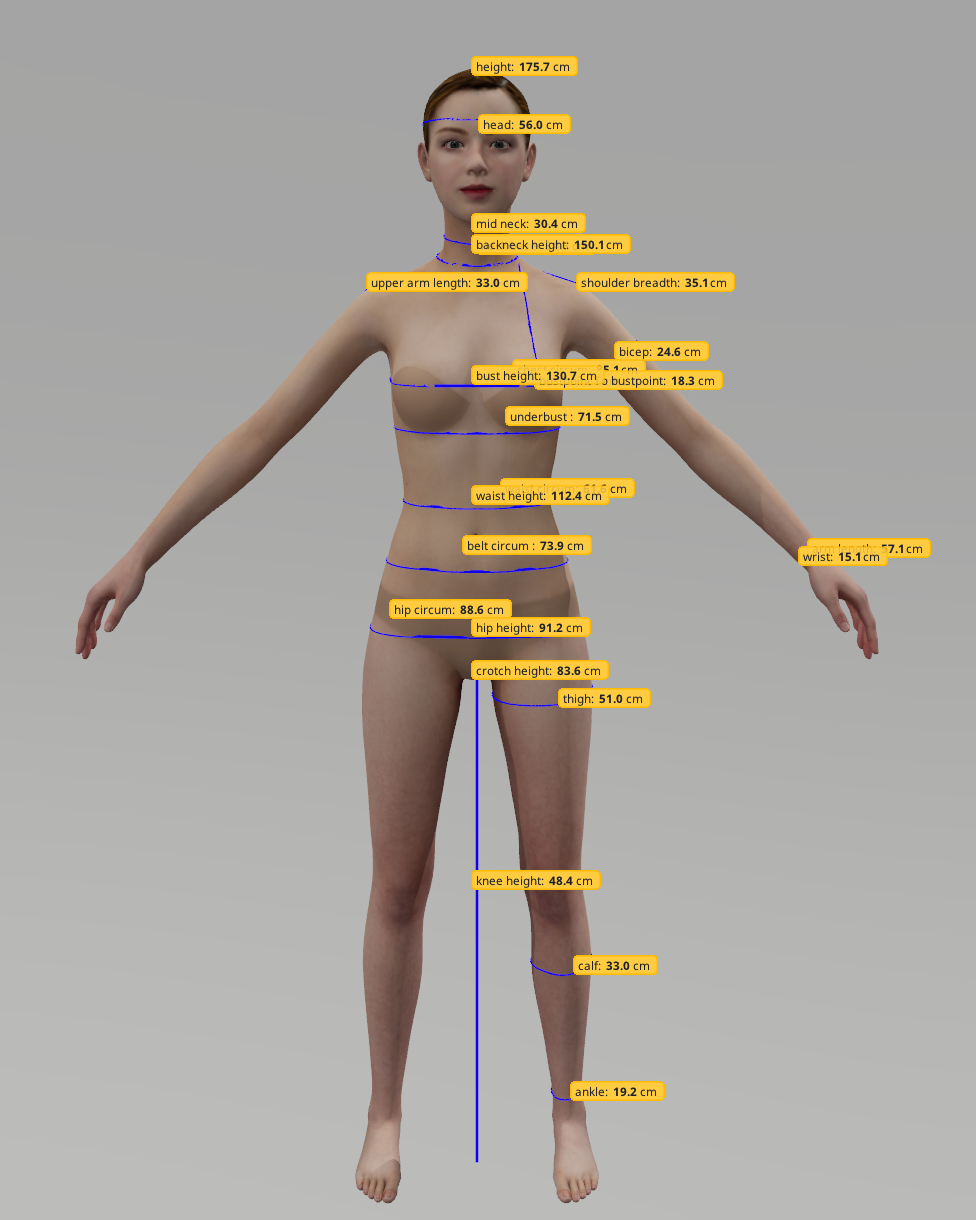

This option adjusts parameters and can be seen when enabling Measurement View in 3D view.

(Other parameters related to the adjusted values are adjusted naturally.)

• Parameter name

  The parameter name shows changeable parameters. Measurement view in 3D shows all parameters that can be controlled.

• Parameter value

  You can put accurate values in the parameter value input box.

• Parameter gap

  The parameter gap shows the gap between the input parameter values and the current 3D body parameters.

• Parameter name

  The parameter name shows changeable parameters.

• Parameter value

  The parameter value allows controlling the body shape by ratio. A size of 50% represents the default size of the avatar.
