Edit Colorway Item (Advanced)

  • Updated

Overview

Edit Colorway Item is a function for editing created colorway items.



Location

2D View > 2D Menu > Colorway UI Panel > Colorway



Operation Method

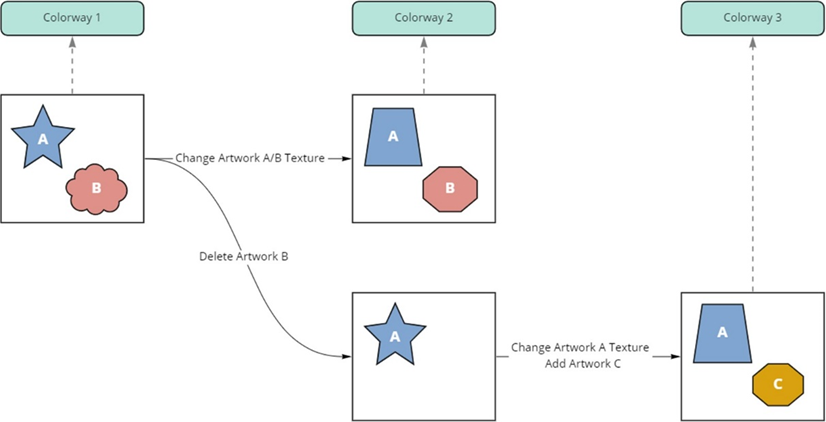

Create Colorway

  1. Create colorway 1 that includes artworks A & B.
  2. Change the artwork type of A & B to create colorway 2.
  3. In colorway 1, delete artwork B and add artwork C to create colorway 3.Untitled__4_.png

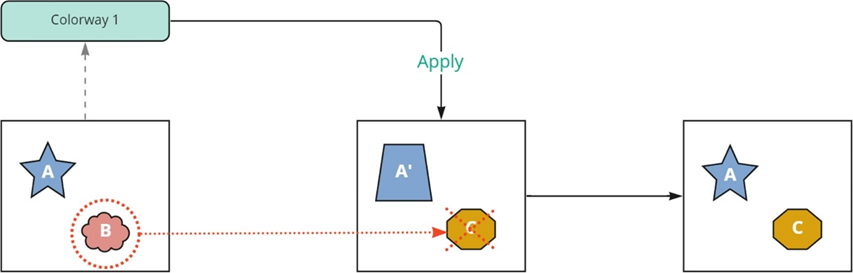

Apply 1

  1. Apply colorway 1 with artworks A & B through draping items with artworks A’ & C.
  2. Artwork A’ in the draping item is recognized the same as artwork A in the colorway to change A’ to A.
  3. Meanwhile, artwork C in the draping item has no artwork that can be recognized as the same artwork in colorway 1, so it can only be maintained and not changed.

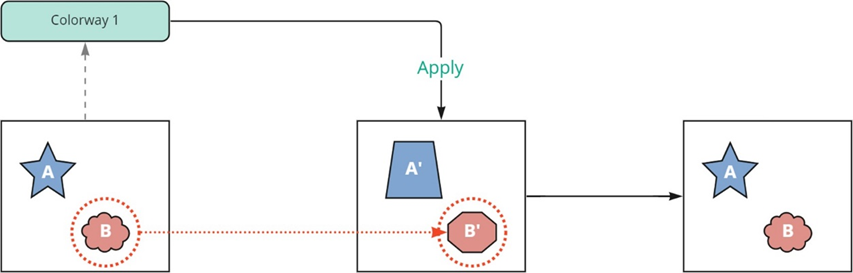

Apply2

  1. Apply colorway 1 with artworks A & B in the draping item with artworks A' & B'.
  2. Artwork A’ in the draping item is recognized the same as artwork A in the colorway to change A’ to A.
  3. Artwork B’ in the draping item is also recognized the same as artwork B in the colorway to change B’ to B.
