Zipper

  • Updated

Overview

Zipper can be added to show texture and apply a zipper function.



Location

2D View > 2D Menu > Zipper



Operation Method

Create

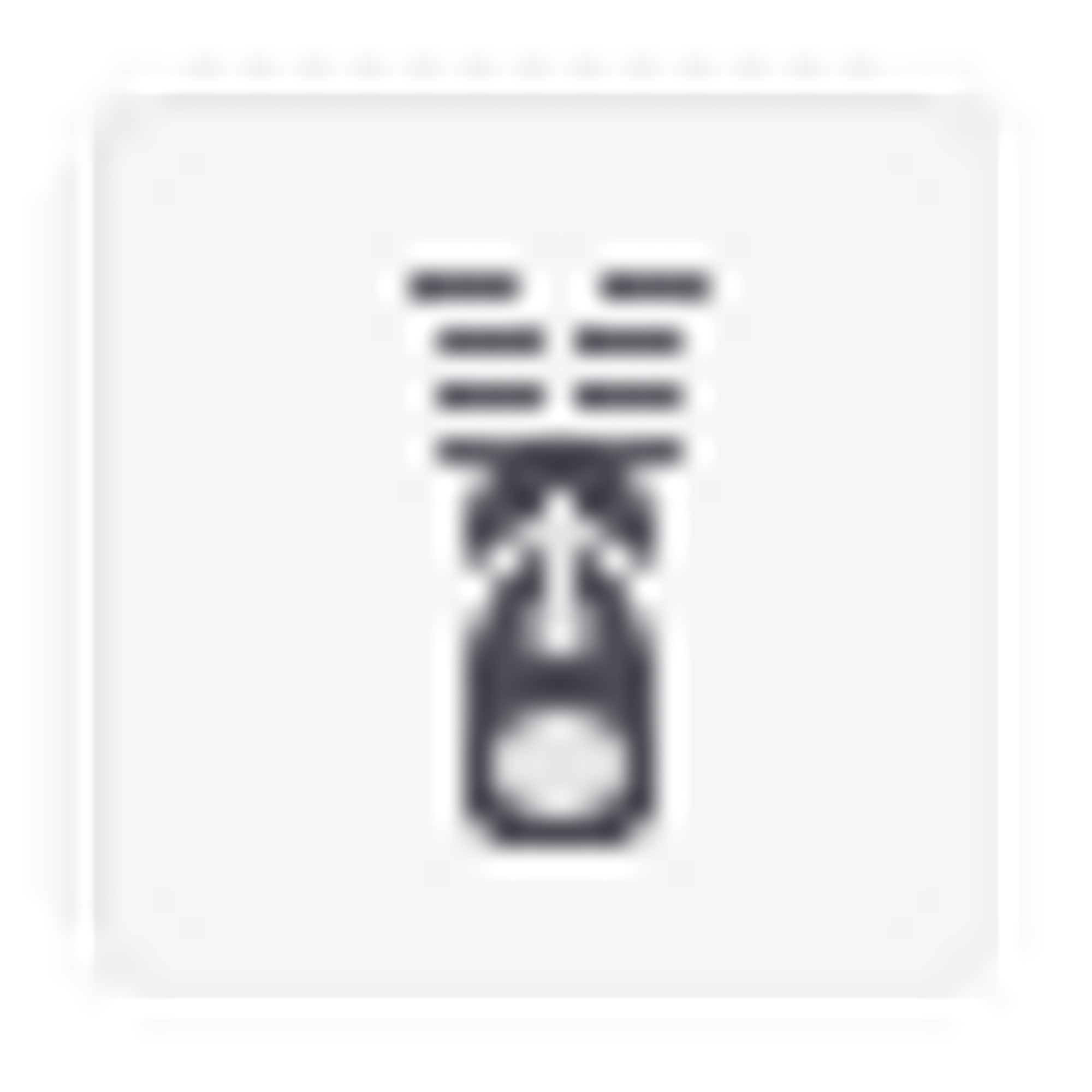

  1. Open 2D view, click on the 2D menu, then select Zipper zipper.png

  2. Use the Zipper cursor to create a zipper similar to multi-sewing according to the outline or inner curve of the surface in 2D view.

  3. You can check the created zipper pattern in 2D and 3D views.

    ※Note: All zippers are locked when created.



Move

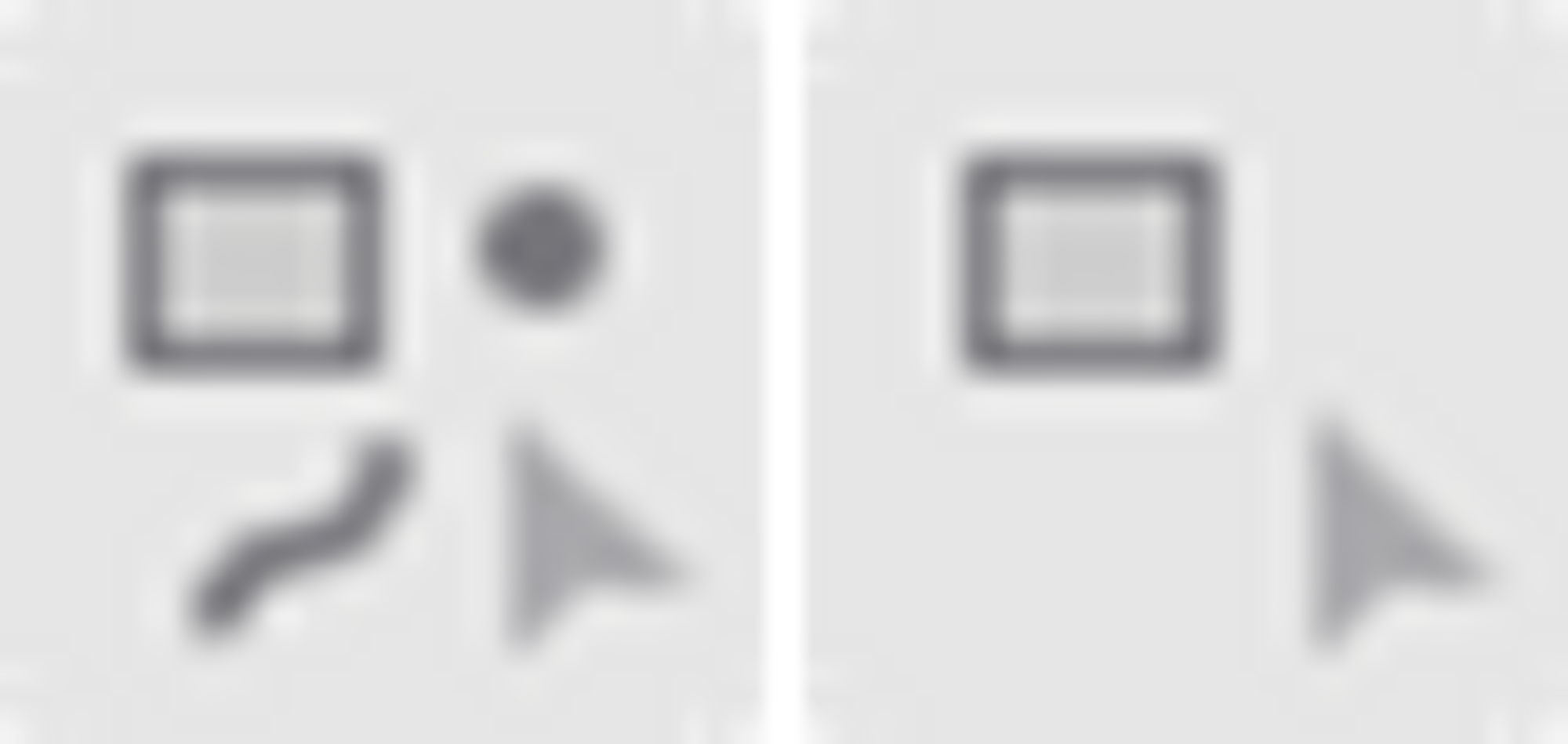

  1. Select the zipper pattern in All/ Surface Selection Mode seletion.png to edit the zipper type and handle direction.

  2. The sewing between zipper tape will be updated at the same time.
