Button connection

  • Updated

Overview

Button Connection is a function for connecting and locking buttons and buttonholes.



Location

2D View > 2D Menu > Button Connection



Operation Method

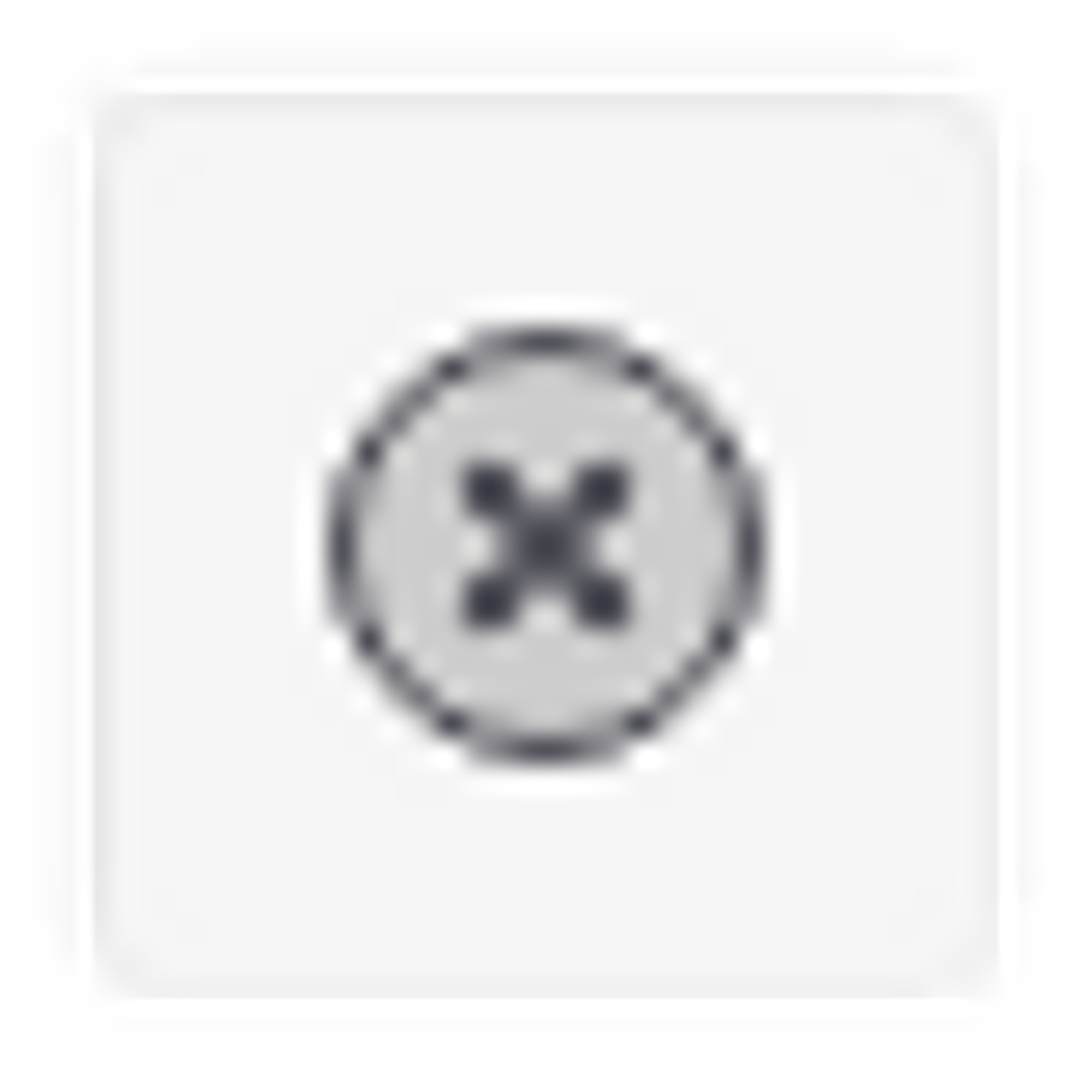

  1. Open 2D view, click on the 2D menu, and select Button Connectionbutton_connect.png

  2. Select buttons and buttonholes to be locked as pairs.

  3. You will see a solid line that connects the button and buttonhole in 2D view.

  4. You can see that the button and buttonhole are connected after simulation.
※Tip: For stable simulation results, arrange the pattern with a buttonhole above the pattern with the button in 3D view.
