Overview

Button can be added to the surface and connected to a buttonhole to be locked.

Location

2D View > 2D Menu > Button

Operation Method

Create

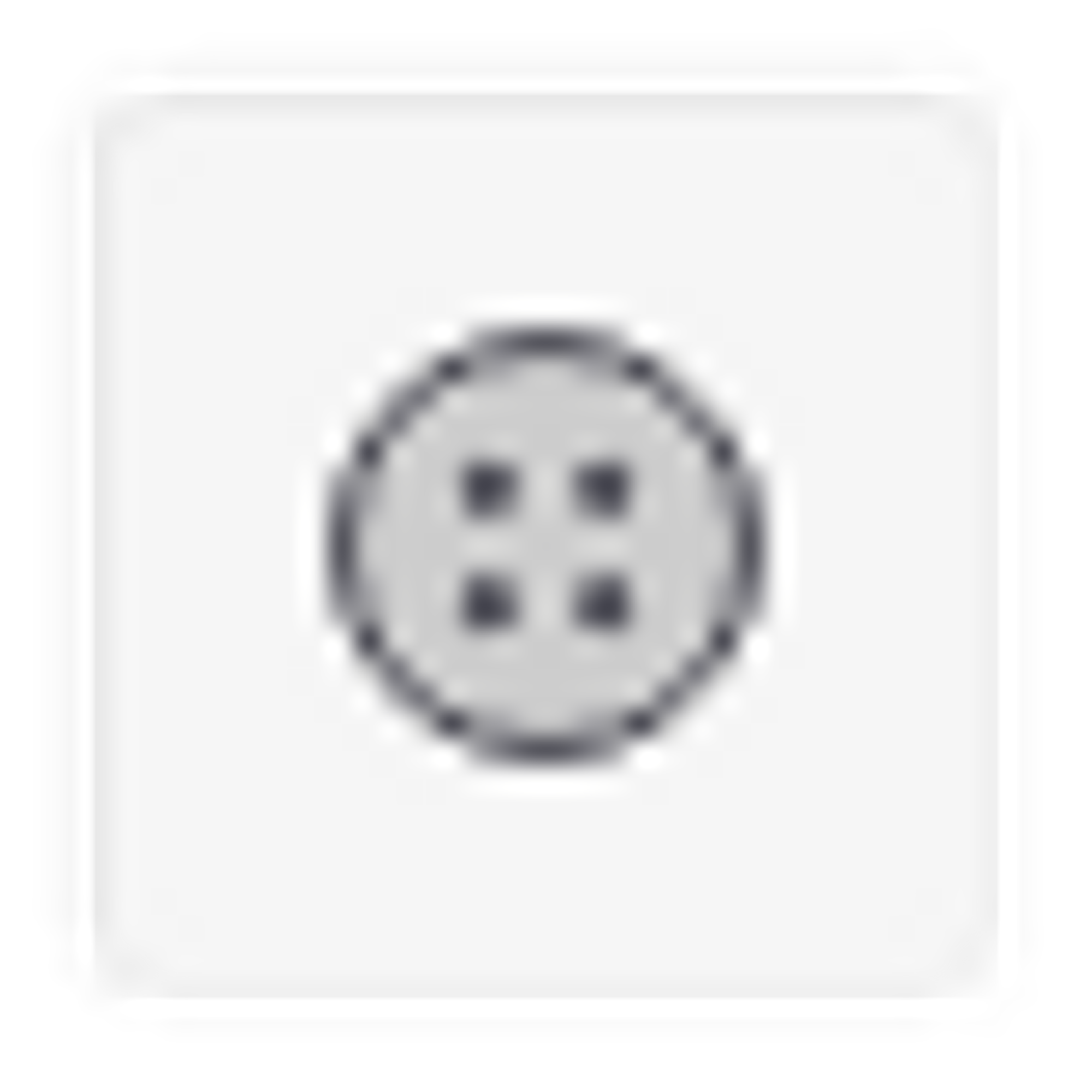

1. Open 2D view, click on the 2D menu, then select Button

2. Select the desired button type via UI Panel > Properties > Button Properties.

3. Use the Button cursor to click on a desired location on the surface in 2D view to create a button.

Move

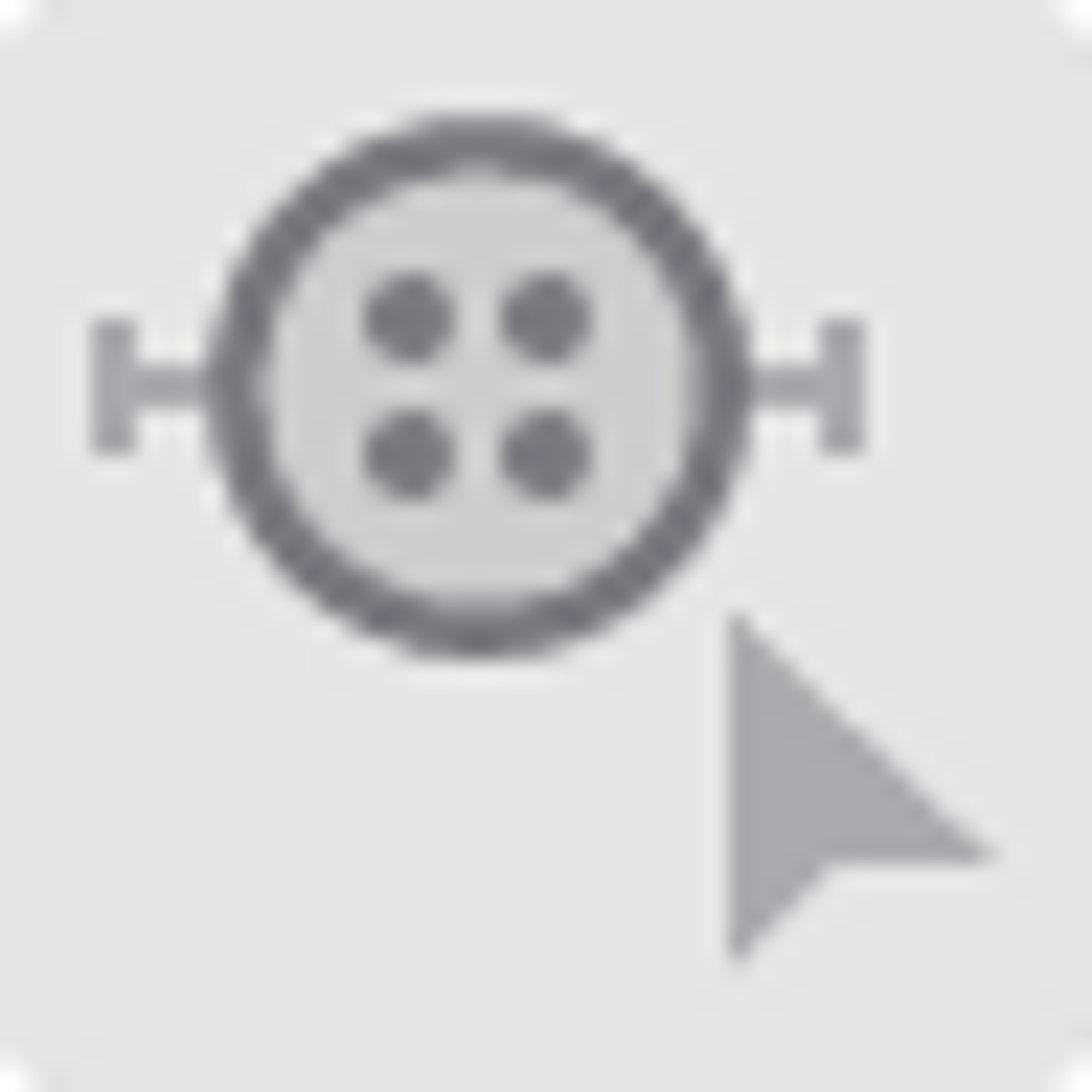

1. Select the button via Button Selection Mode to move in 2D and 3D views.

2. Double-click the desired button type to apply via Button Selection Mode (UI Panel > Properties > Button Properties).
