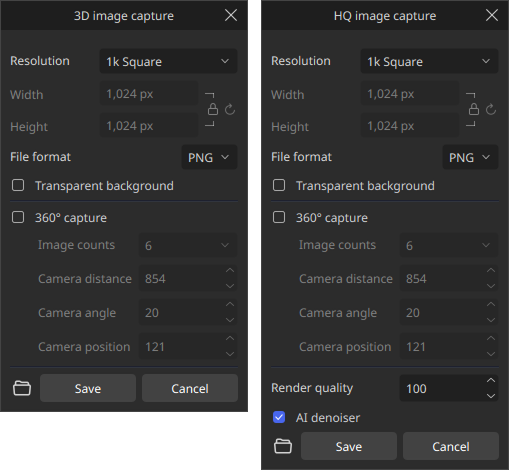

Capture HQ Preview images

Overview

3D Image Capture is a function for saving the image and video shown in the 3D view and the High-quality preview(Beta) as an image or video file.

The difference with regular screenshots, the output can be saved in the exact size desired, even up to 4K.

Location

3D View > Rendering toolbar > 3D Capture

Operation Method

1. Go to 3D View > Rendering toolbar > Image Capture.
2. Select an option and click Save.

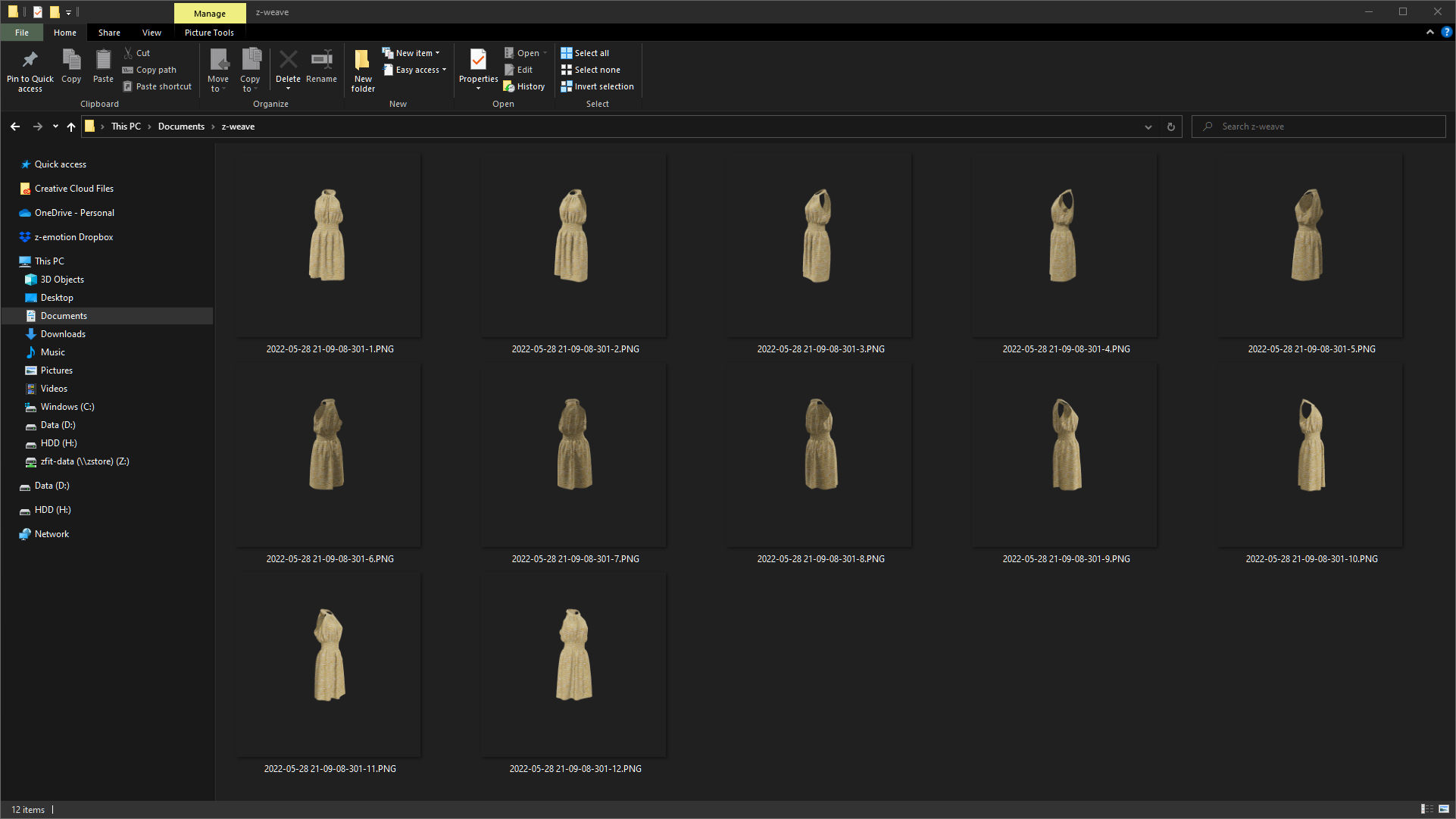

3. The captured image can be accessed through This PC > Documents> z-weave folder, as shown in the figure below.

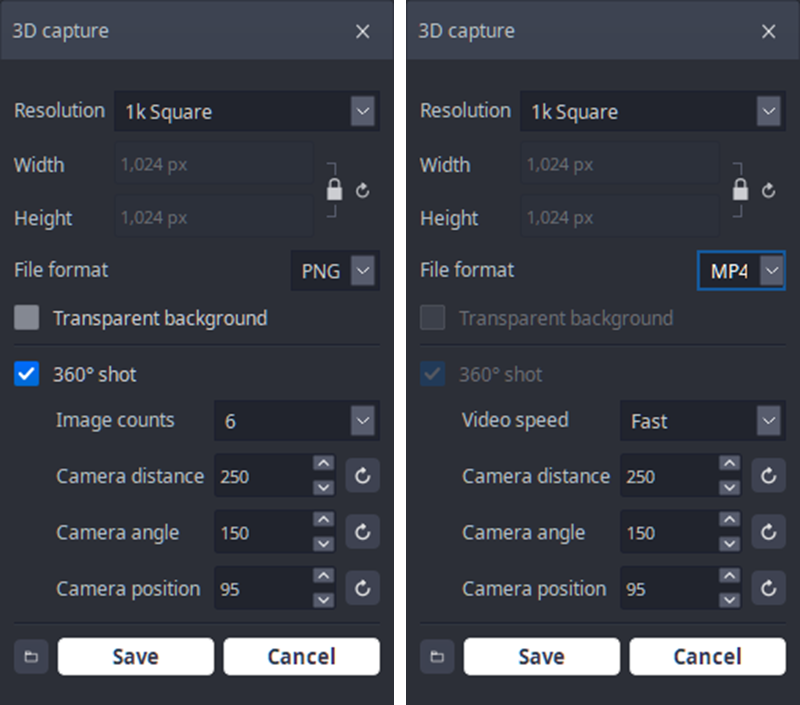

Components

Resolution

This function is for designating the image size.

A predetermined resolution can be used such as 720p, 1080p, 1k square, etc. Or it can be set custom for any resolution.

Width/Height

Custom resolution enables width/ height controls to set the horizontal/vertical length of the image.

File Format

This option is for choosing the image file format, like PNG or JPG, and the video file format, like MP4.

Transparent background

This option is for determining whether to capture the background as is or to make it transparent.

360° Images

360° Images is a function that rotates the camera 360° around the avatar to capture the screen from various angles.

Image Counts

This option is for determining how many 360° images will be taken. The higher the value, a smoother 360° image can be captured. For example, an image count of 36 captures images by turning 10° at a time.

Camera Setting

This option sets the camera to be captured, and can be used with the 360° shot option activated.

Default Setting

The default camera settings are camera distance 250, camera angle 150, and camera position 95.

When the checkbox is enabled, the camera will be set to default values and the input window will be disabled.

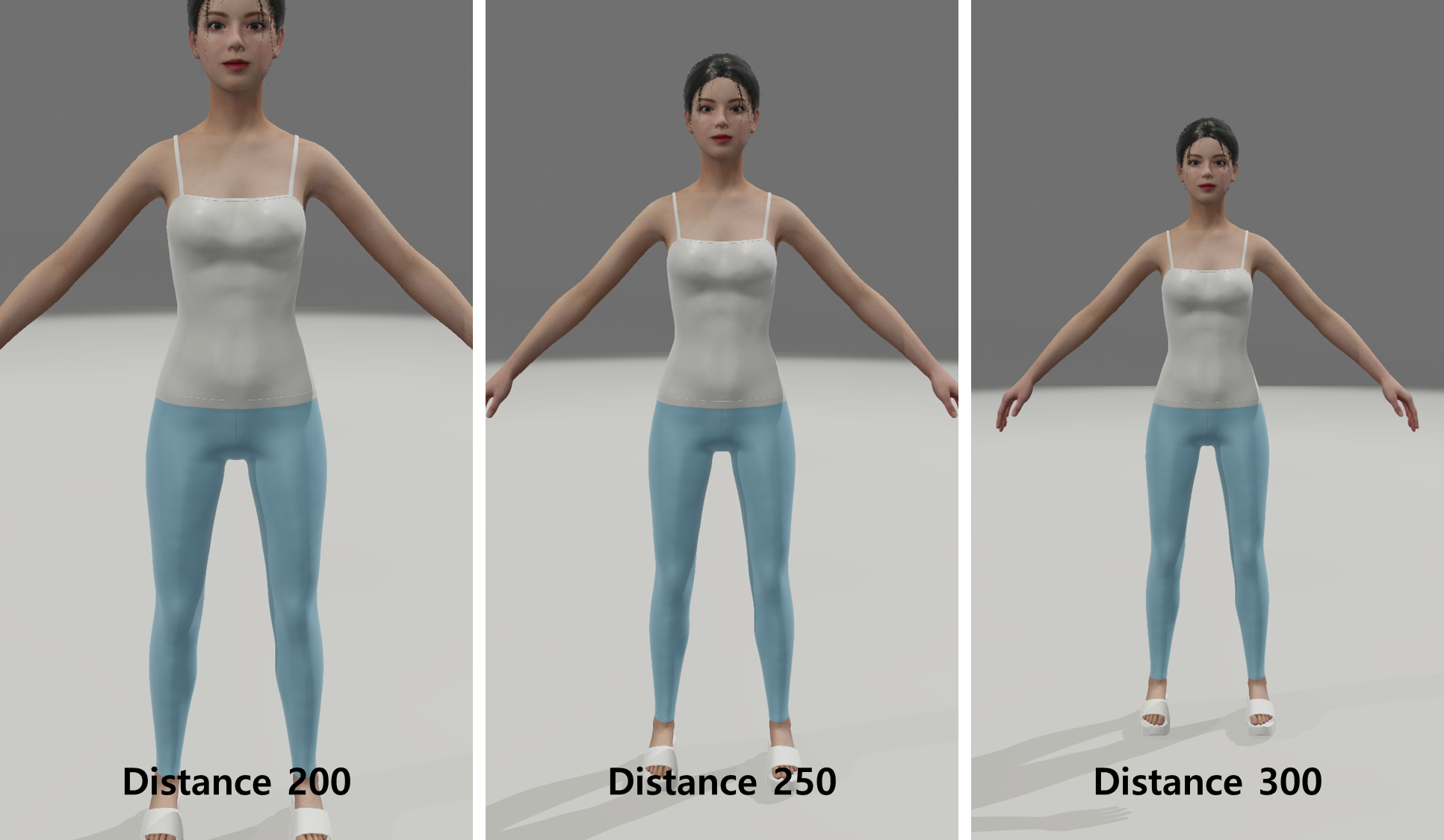

Camera distance

Option to set the distance between the camera and the object.

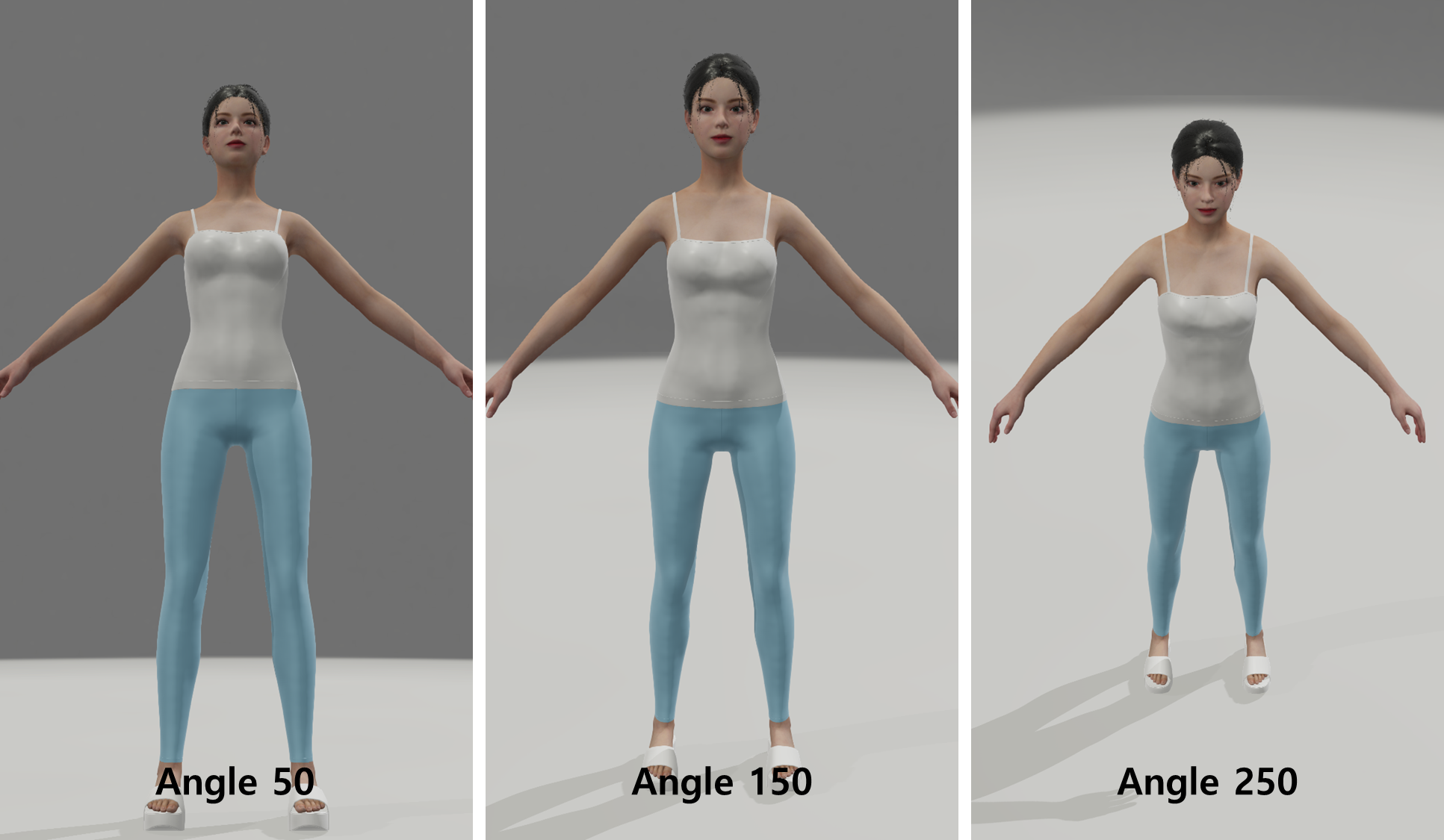

Camera angle

Option to set the angle of the camera.

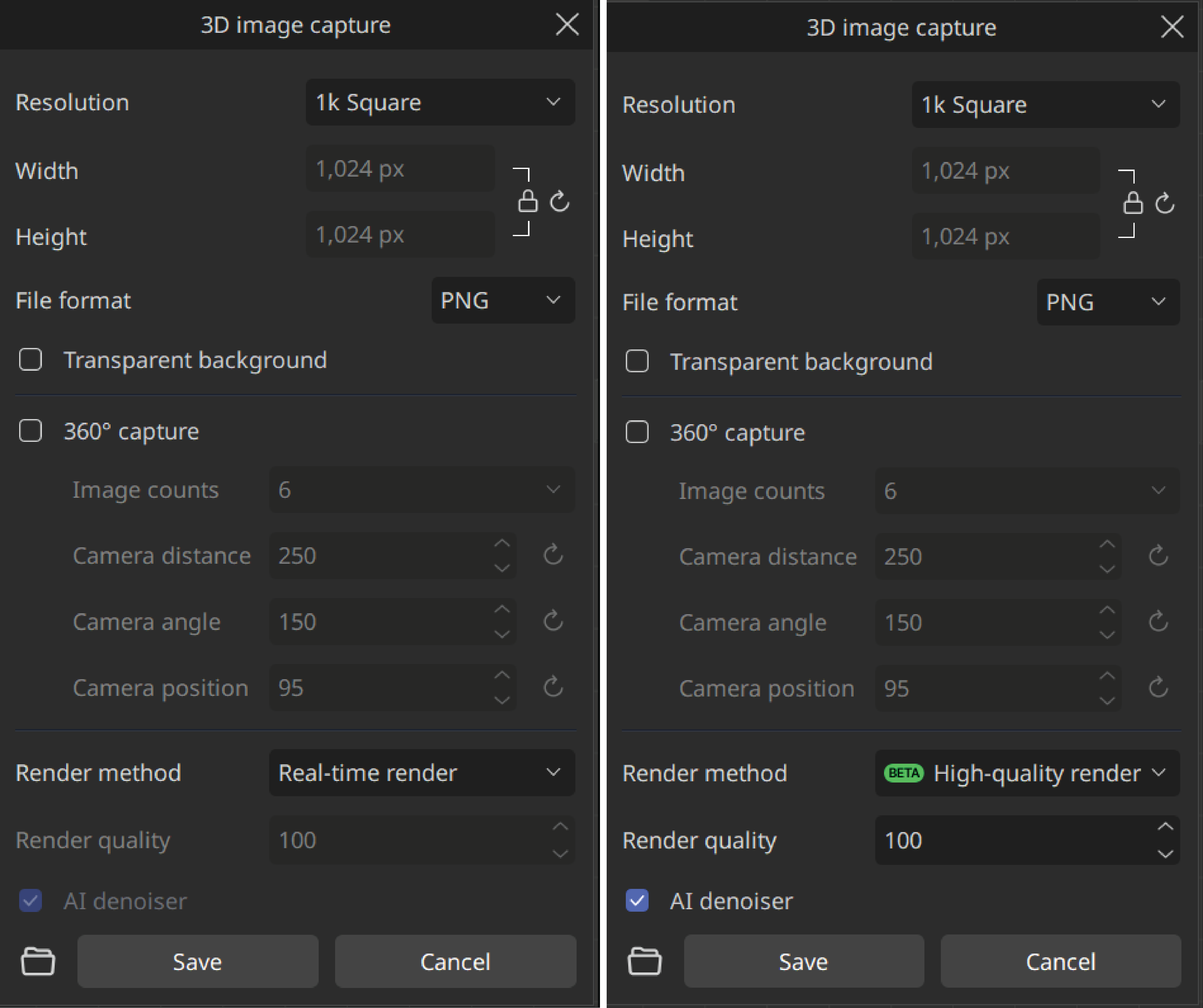

Render Method(Beta)

This option allows users to select the render method to capture. • Real-time Render: Captures the image as it appears in the 3D view. • High-Quality Render: Captures a high-quality image as shown in the High-quality Preview.

Render Quality(Beta)

This option is for adjusting the quality of the rendered capture image. More higher the value and more high quality rendering image.

AI Denoiser(Beta)

This option allows the user to export a 3D capture image with an AI denoiser, producing a cleaner image with less noise.

Folder

This function is for opening the folder where the image is saved.

The default path is C:\Users\window user name\Documents\z-weave.
