Light Control

  • Updated

Overview

Light Control is a function for adding or deleting lights and adjusting the location and color.
In addition to the light of the skies image, additional lights can be installed by the user.



Location

UI Panel > Rendering > Environment Configuration



Operation Method

Add Light

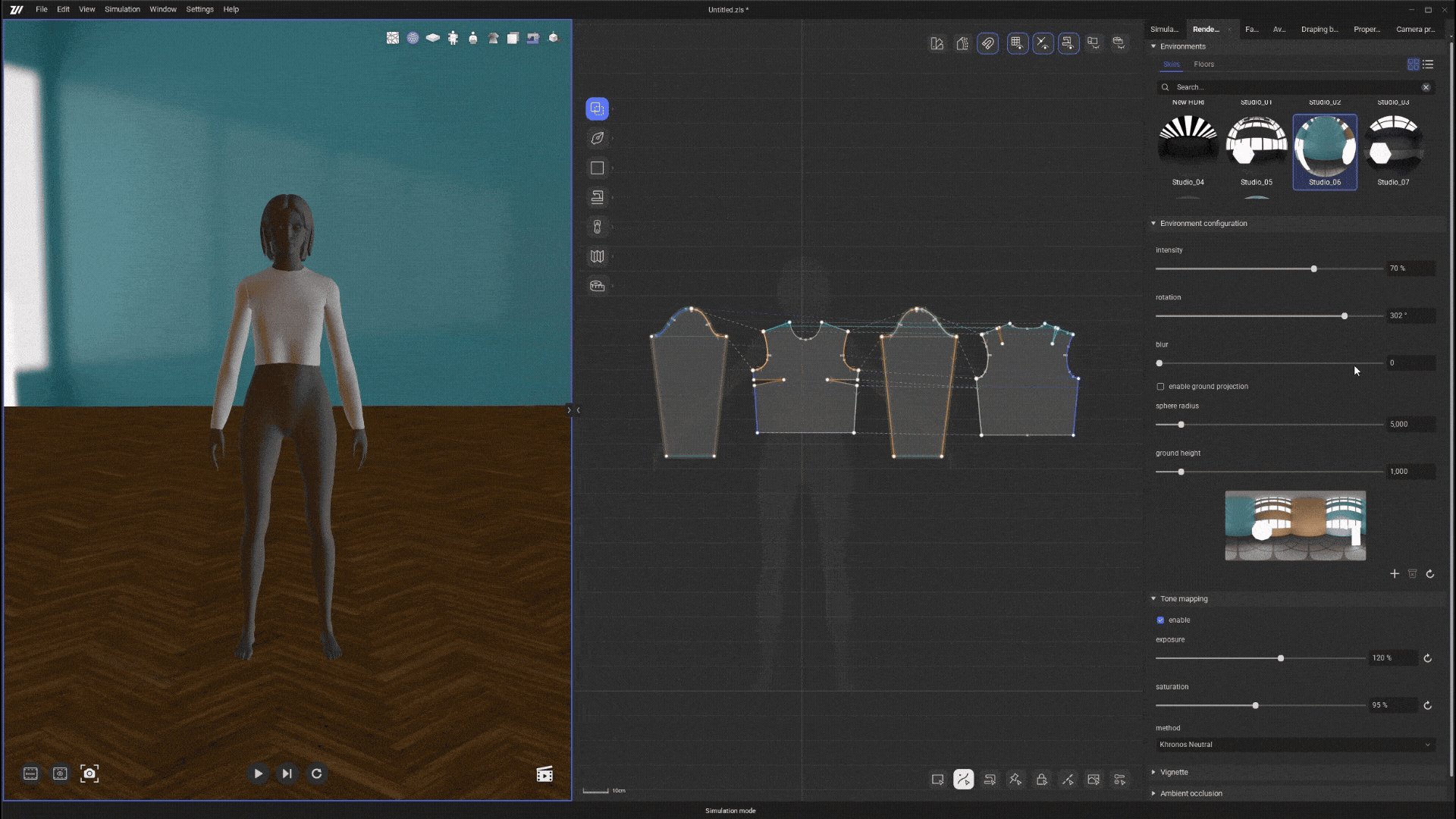

  1. Click + on the bottom via UI Panel > Rendering > Environment Configuration.
  2. The added light is located on top of the skies thumbnail, and the effects are reflected in 3D view.

Delete Light

  1. Click on the light expressed via UI Panel > Rendering > Environment Configuration > Skies Thumbnail.
  2. Press the bin button at the bottom of the section.
  3. The corresponding light disappears on top of the skies thumbnail, and the effects are reflected in 3D view.

Change Light Properties

  1. Click on the light to change via UI Panel > Rendering > Environment Configuration > Skies Thumbnail.
  2. Select light and light properties will appear in Environment Configuration.
  3. Change properties such as color and intensity via Light Properties.



Components

Color Color of the selected light.
Intensity Intensity of the selected light.
X/Y Position Shows the latitude/ longitude of the selected light location.
Shadows Determines whether or not to make shadows with the selected light.
Shadow Map Resolution When set as low, the shadow border becomes blunt; when set as high, the shadow border becomes clear.
