Tack/Pin

  • Updated

Overview

Tack/Pin is a function for fixing the surface in point units.
You can use Tack to fix on the surface or an avatar, and Pin to attach the surface in the air.



Location

Menu > Edit > Tack
Menu > Edit > Pin



Operation Method

Tack

  1. Click Menu > Edit > Tacktack.png to change the mouse cursor to tack mode.

  2. Click on a location on the surface to create one side of the tack.

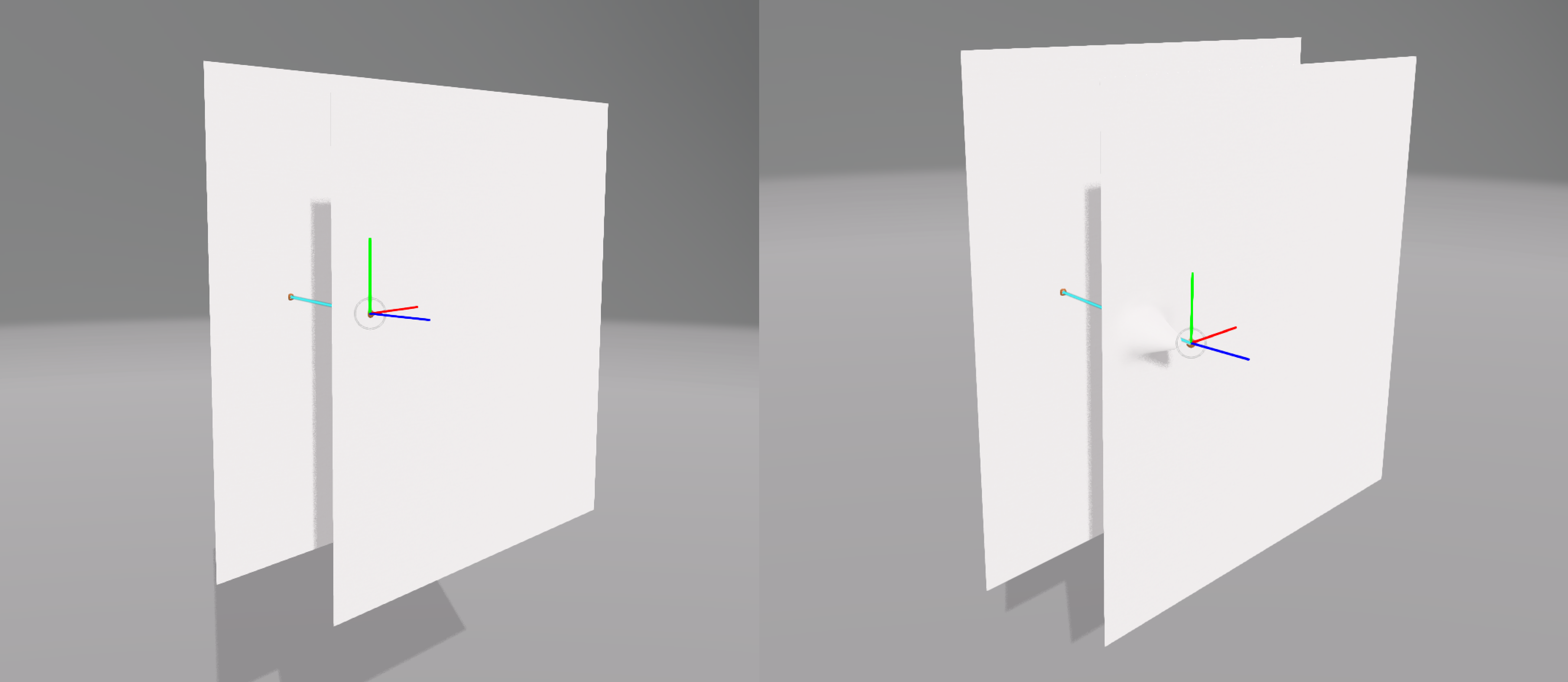

  3. Click the location where the tack was made earlier to create another tack on the opposite side to make a pair. The order of 2 and 3 is irrelevant. However, it must be composed of pairs of surface–surface or surface–avatar.

  4. You can check the pair of connected tacks by selecting them in Pin/Tack selection mode
    After running the simulation, you can figure out how far apart the tacks are.

  5. When the simulation is paused, tacks can be added, moved, enabled/disabled.



    ※ Notes: You can select all tacks by context menu in Pin/Tack Selection Mode.

Pin

  1. Click Menu > Edit > Pin pin.png to change the mouse cursor to pin mode.

  2. Click on a location on the surface to create a pin.

  3. You can fix the exact location of pins when running the simulation.

  4. When the simulation is paused, pins can be added, moved, enabled/disabled.

    ※ Notes: You can select all pins by context menu in Pin/Tack Selection Mode.




Components

Tack

Two tacks make up a pair, so options applied to one tack will automatically apply to the other tack.

Distance This value is for adjusting the distance between a pair of tacks.
Strength

This value is for setting how strongly to tacks are attached.
The higher the value, the better it maintains distance and is less affected by external impacts or physical properties. The lower the value, the weaker it becomes as it is far away from the set distance.
Enable This function is for enabling/disabling tack.
Show in 3D View This function is for hiding the orange sphere that displays tack in 3D view.



Pin

Enable This function is for enabling/disabling the pin.

Show in 3D View

 This function is for hiding the green sphere that displays pin in 3D view.
