Overview

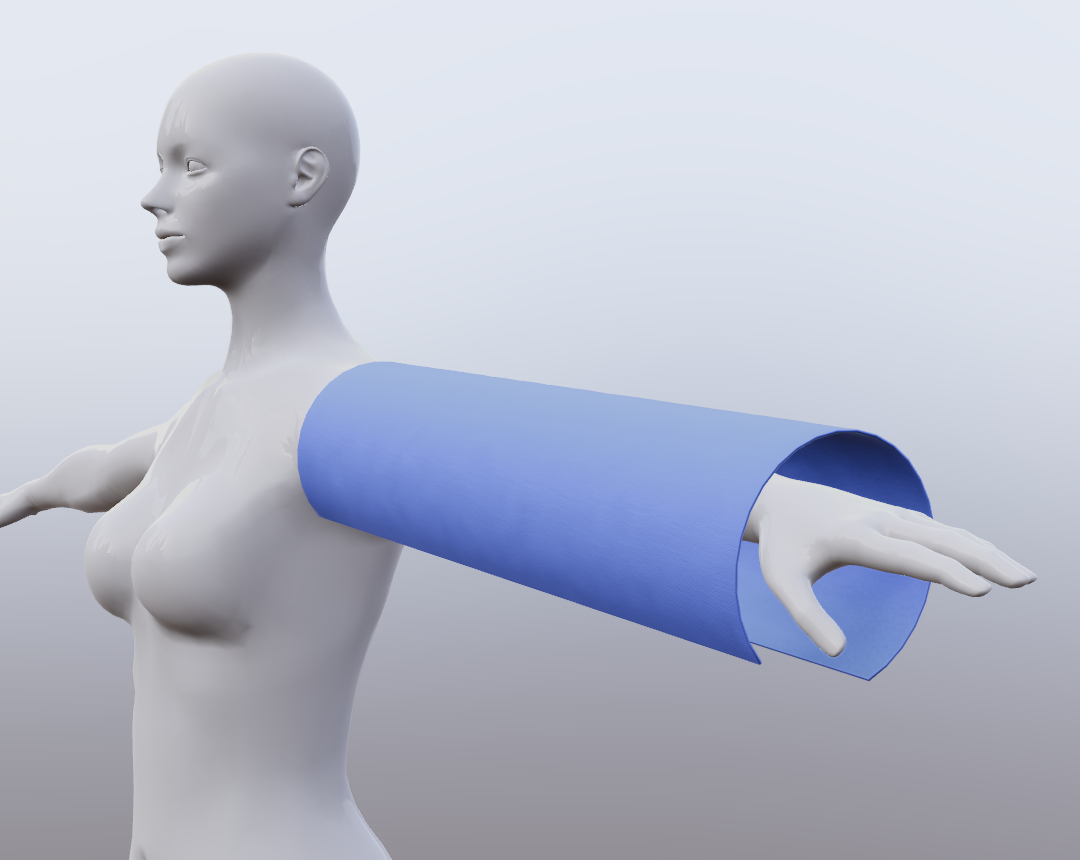

Deform is a function to roll the surface so that it is properly placed on the avatar.

Location

Surface > UI Panel > Properties > Deform Parameter Surface > X axis (Shift+mouse scroll) Surface > Y axis (Ctrl+mouse scroll) Surface > Spiral (Alt+mouse scroll)

Operation Method

1. Place the surface in the 3D view.
2. Select the surface to deform in Surfaces Selection Mode.

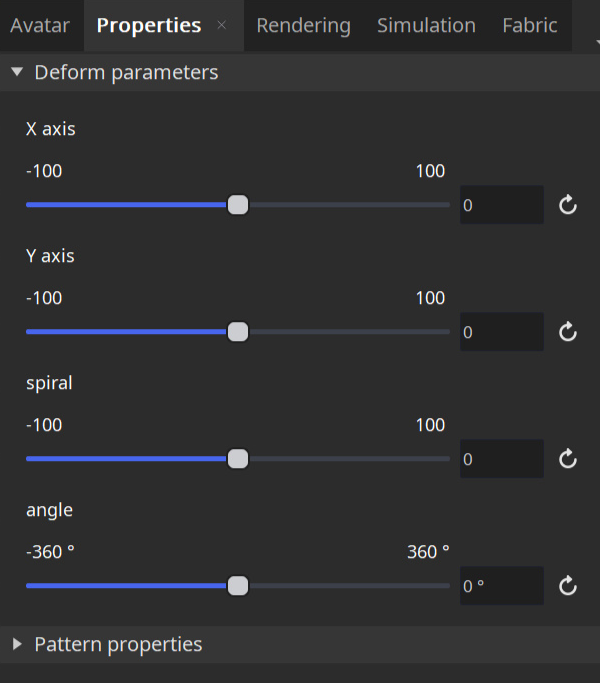

3. Enter the value for the X axis, Y axis, and Spiral via UI Panel> Properties> Pattern Properties> Deform Parameters.
4. Roll the surface around according to the value in the 3D view.

Components

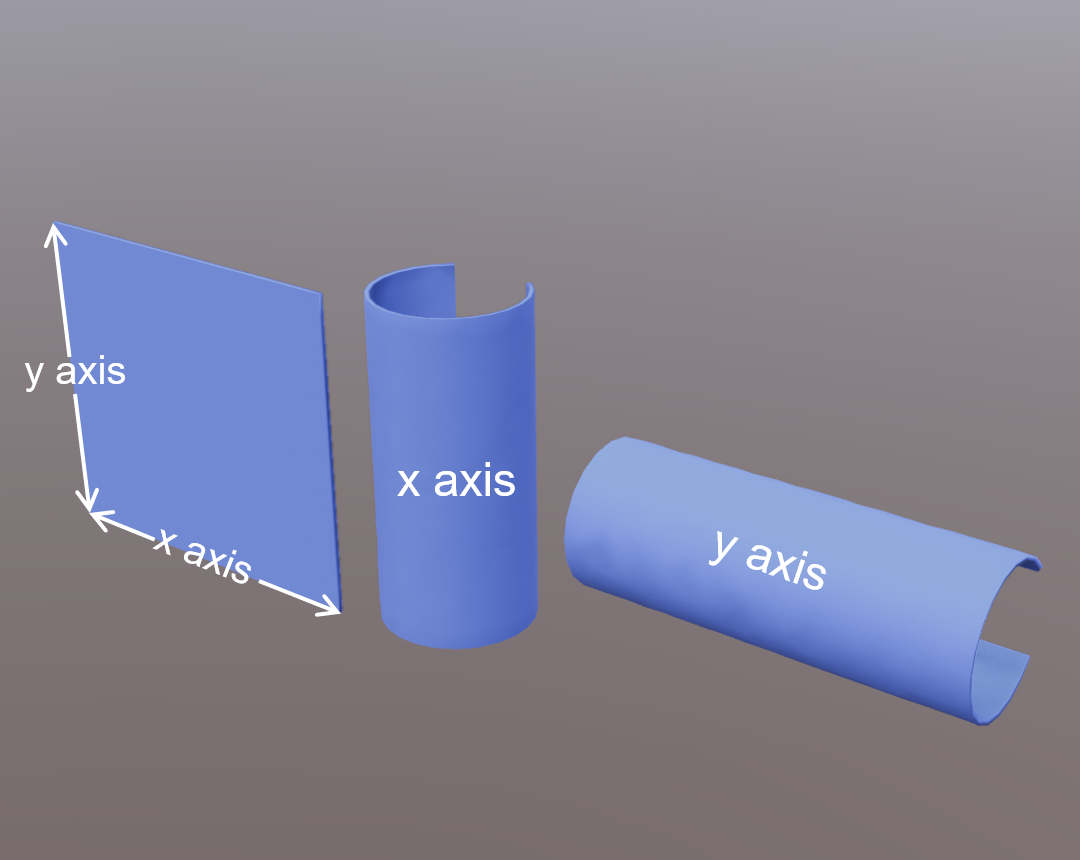

X/Y axes

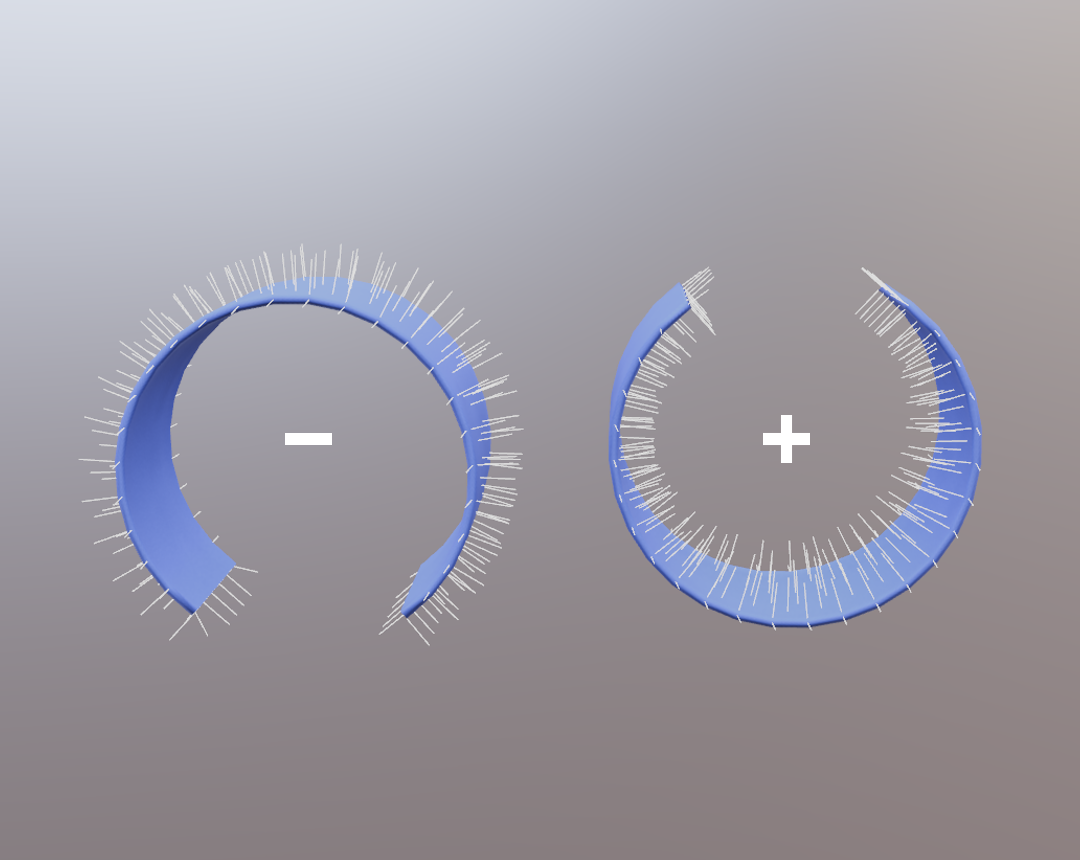

X/Y axes values can be adjusted to set the degree of roundness to roll the surface in the X/Y axes. When the value is a positive number, it rolls in the direction of the surface (=Normal direction). When the value is a negative number, it rolls in the opposite direction of the surface.

※ Note: Surface direction can be checked via Menu > View > Normal.

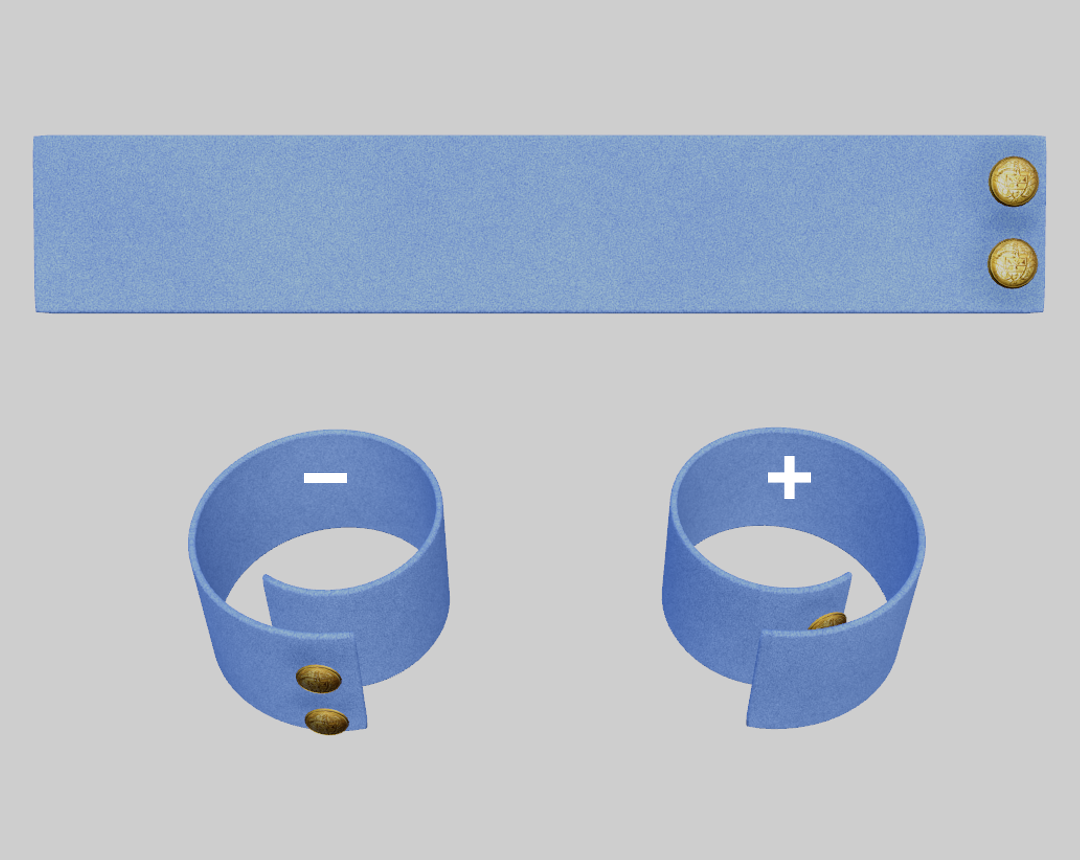

Spiral

This option is for switching the direction of the surface spiral. It determines which side to raise the end of the shape.

When the value is a negative number, the right side of the surface (seen from the front) is raised and covers the left side. When the value is a positive number, the left side of the surface is raised and covers the right side.

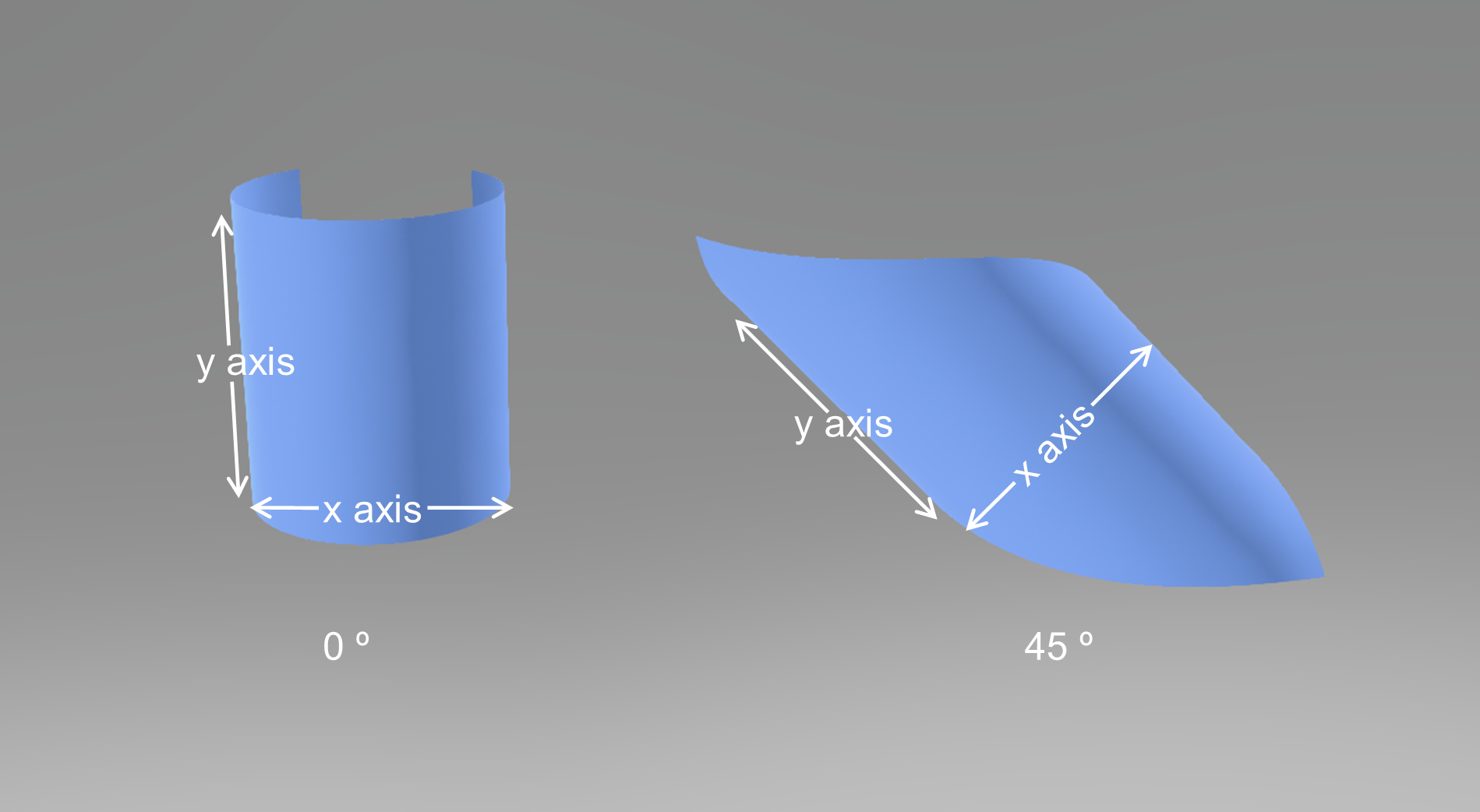

Angle

This option is for changing the axis of rolling.
