Objective

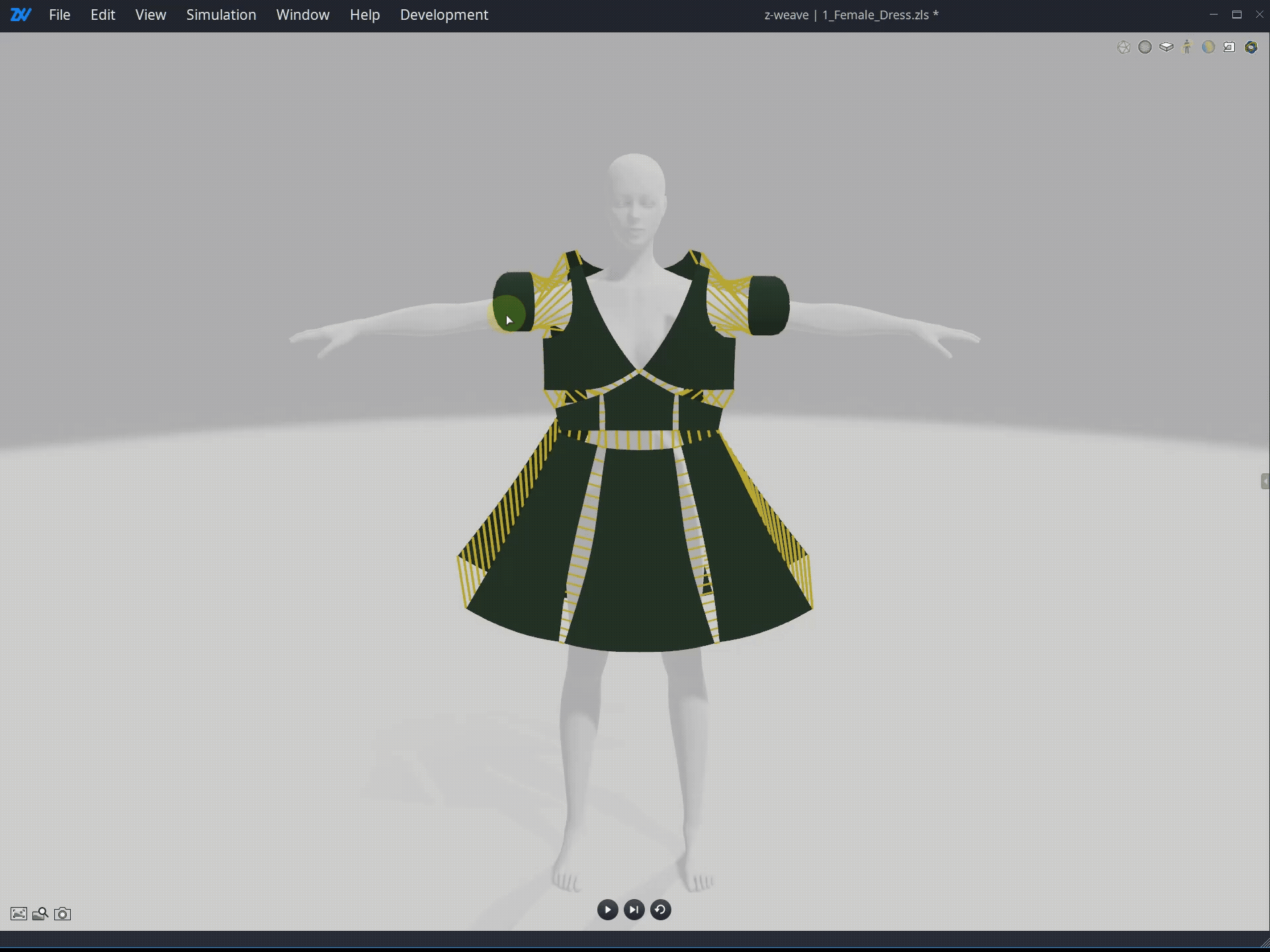

Quick Move is a function for picking two points or one point in different locations to place on the surface easily in the 3D view. It is available to pick each surfaces or surface to the avatar.

Select two points on the surface and select two points on the avatar or another surface to place the pattern in the desired location. Also it is available to select one point on the surface and select one point on the avatar or another surface.

Location

3D View > Surface > Context Menu > Quick Move

Operation Method

Surface to Avatar

1. Select the surface in Surfaces Selection Mode in 3D view.
2. Right-click on the selected surface to open the context menu, then choose a Quick Move.
3. Click on two points or one point on the surface to set a base point in 3D view.
4. Click on the selected two points or one point on the avatar to set the location where the pattern will attach.

Surface to Surface

1. Select the surface in Surfaces Selection Mode in 3D view.
2. Right-click on the selected surface to open the context menu, then choose a Quick Move.
3. Click on two points or one point on the surface to set a base point in 3D view.
4. Click on the selected two points or one point on the another surface to set the location where the pattern will attach.

※ Note: You can do it in any order for steps 3 and 4.
