Overview

Show in 3D View is a function for selectively making the surface visible or not visible in the 3D view.

Unlike Join in Simulation, it is not visible in the 3D view but is included in the simulation.

Location

Surface > UI Panel > Properties > Pattern Properties > Show in 3D

2D View > Surface > Context Menu > Show in 3D 3D View > Surface > Context Menu > Show in 3D

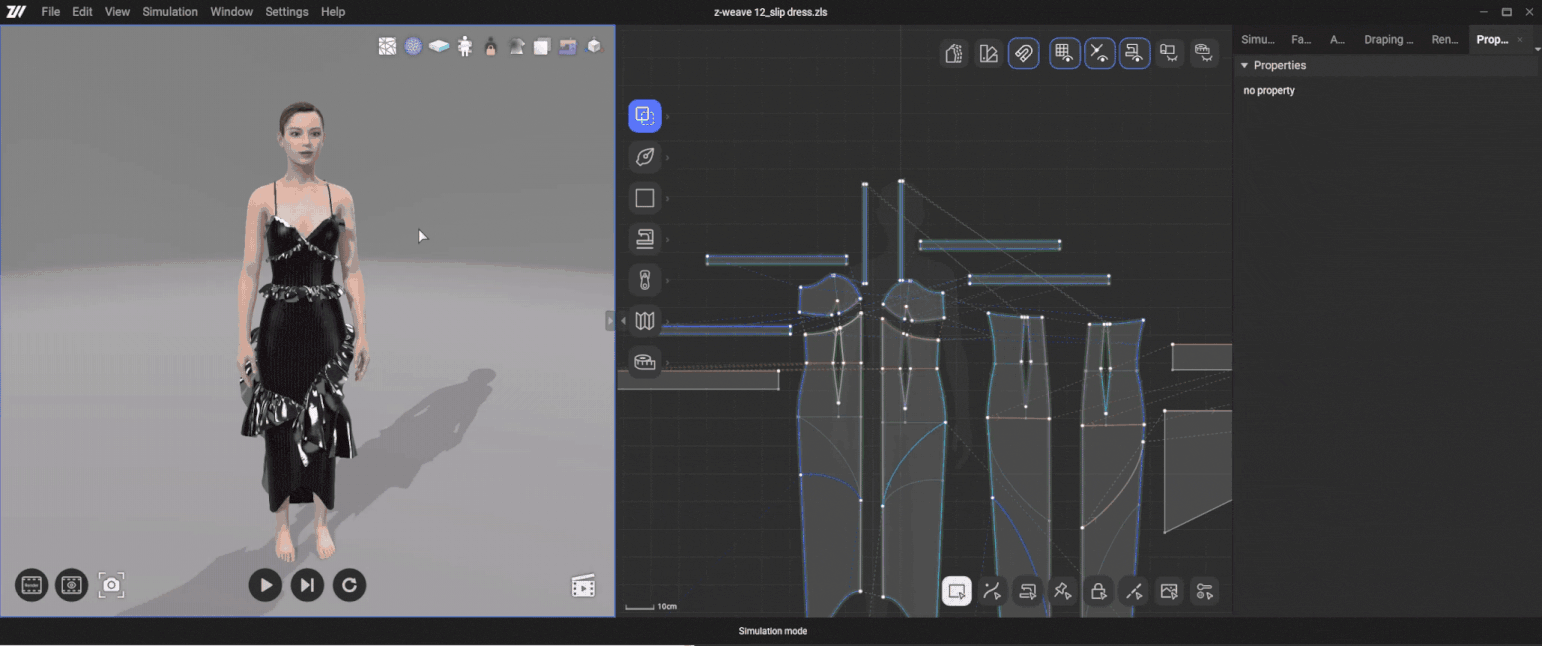

Operation Method

1. Select the surface in Surfaces Selection Mode.
2. Enable or disable the function via UI Panel > Properties > Pattern Properties > Show in 3D View.
3. Enabling it will show the surface in the 3D view. Disabling it will not show the surface in the 3D view.
