Overview

The Flip function is to flip a surface up/ down (X-axis), left/ right (Y-axis), and front/ back (Z-axis).

Location

2D View > Surface > Context Menu > Flip > Flip Horizontal/ Flip Vertical / 3D Flip

3D View > Surface > Context Menu > Flip > Flip Horizontal/ Flip Vertical / 3D Flip

Operation Method

1. Select the surface in Surfaces Selection Mode.

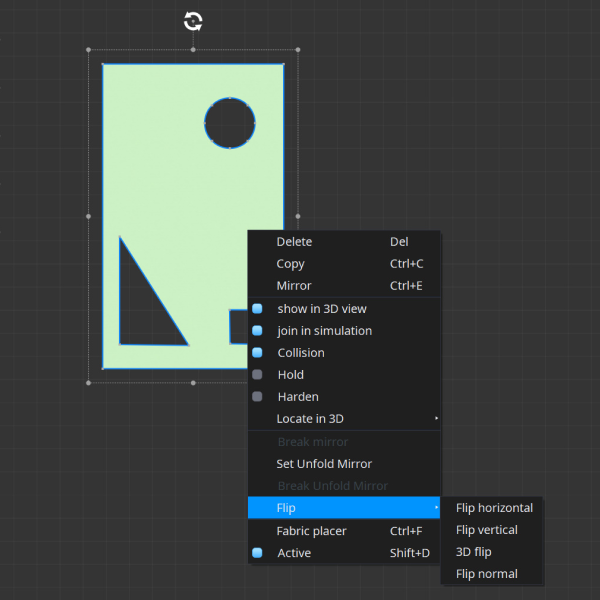

2. Right-click on the selected surface to open the context menu, then select Flip.
3. Select the action: Flip horizontal/ Flip vertical/3D flip/Flip normal.

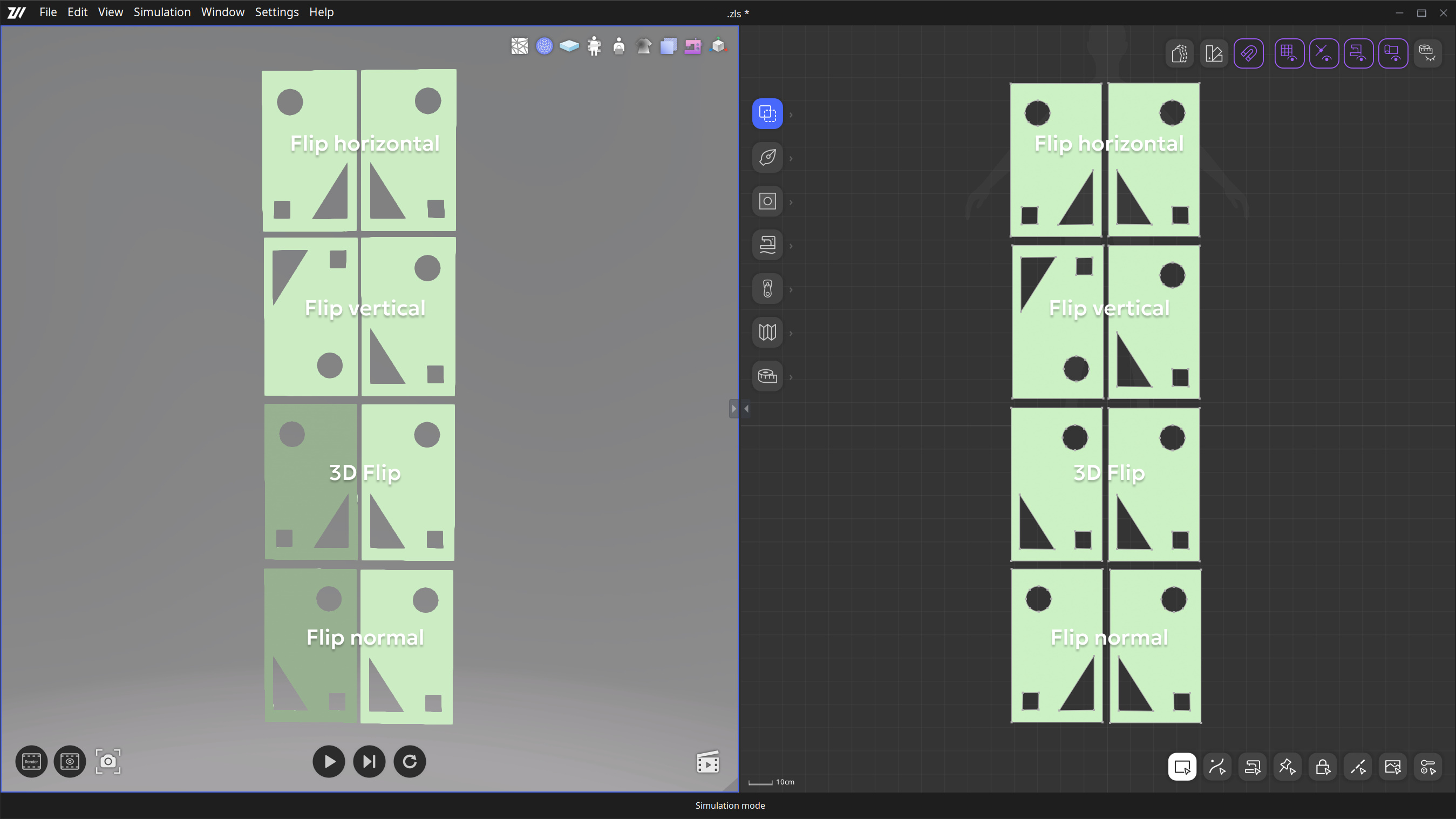

Components

Flip Horizontal

Flip Horizontal is a function that flips the surface left/right.

Flip Vertical

Flip Vertical is a function that flips the surface up/down.

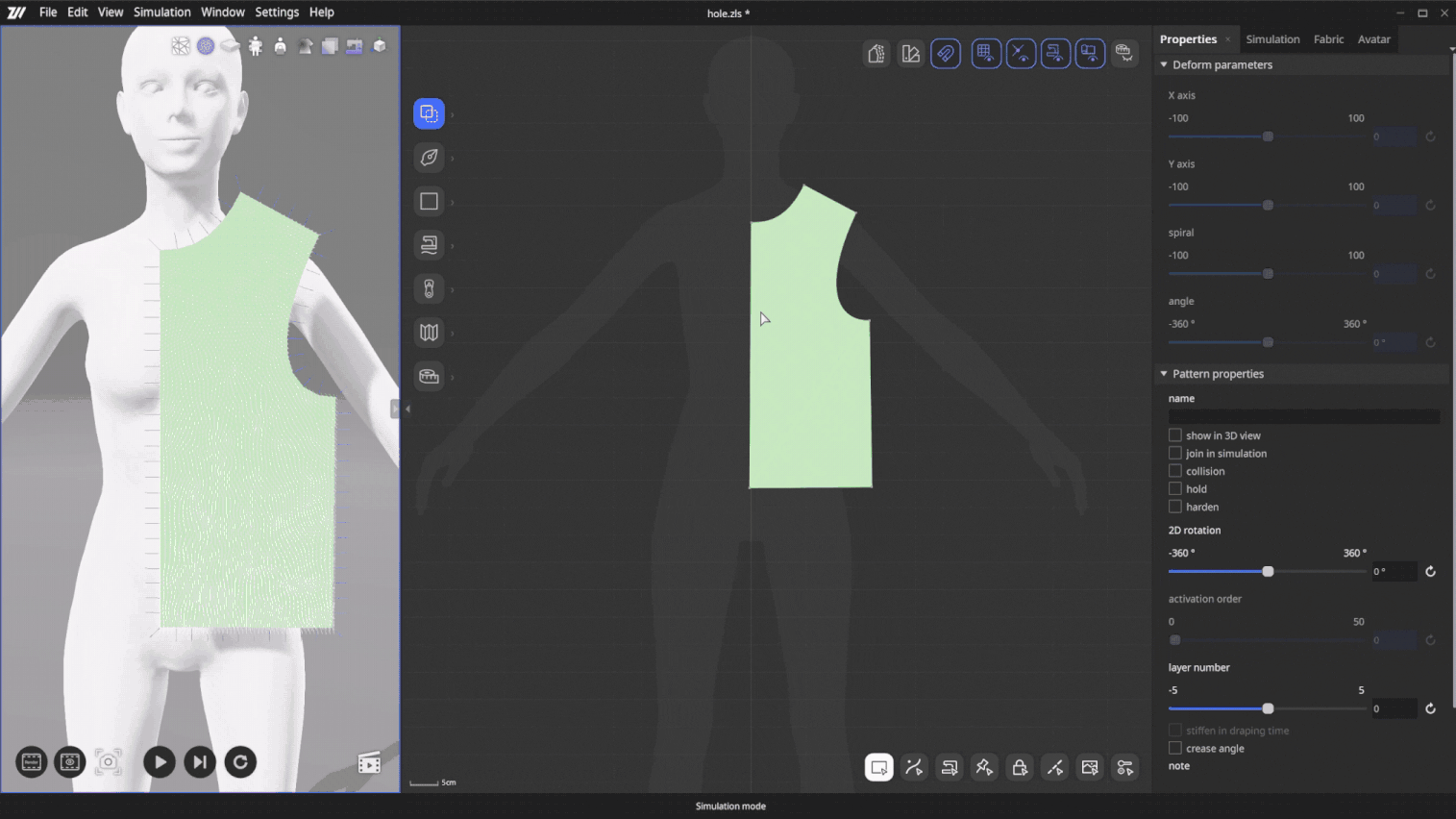

3D Flip

3D Flip is a function for flipping the surface front/back along the Y axis.

Flip Horizontal & Flip Vertical can be seen in 2D and 3D views, but 3D Flip can only be seen in the 3D view.

Flip normal

Flip normal is a function that flips the direction of the face normal.

The Flip normal makes the surface flipped horizontally in the 2D view.
