Overview

Unfold is a function that creates symmetry based on a segment among the outlines of a surface.

Location

2D View > Outline > Context Menu > Unfold

Operation Method

1. Select the outlines of a surface in All/ Curves Selection Mode.


   ※Note: Outlines must be full curves without any breaking points.

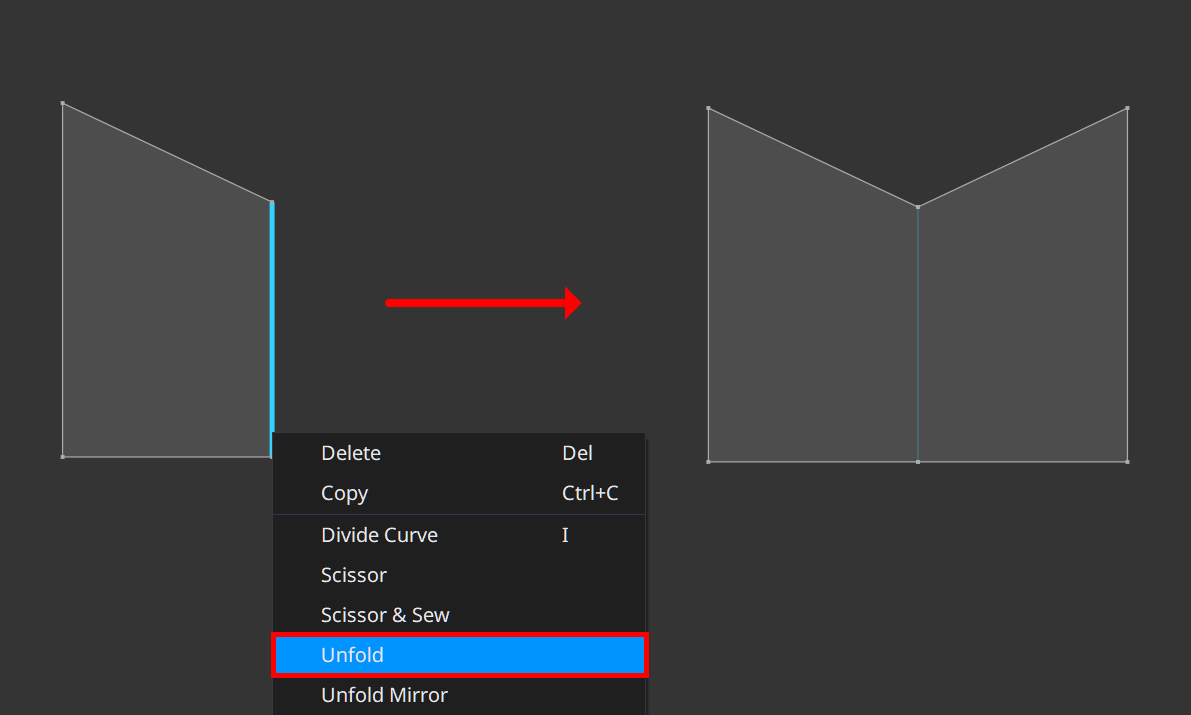

2. Right-click on an outline to open the context menu, then select Unfold.
3. The surface will unfold symmetrically based on the selected outline.
