Hole

  • Updated



Overview

The Hole tool is used to make holes on surfaces.

Location

2D View > 2D Menu > Hole

2D View > Curve > Context Menu > Scissor

Operation Method

Hole

  1. Click on the 2D menu, then select Hole.
  2. Select the surface to create a hole.
  3. Create a start point of the hole on the surface, then use lines/ curves to draw your figure.
  4. Return to the start point to complete the hole, or press C to close the figure; it will automatically connect the last point to the start point to create the hole.

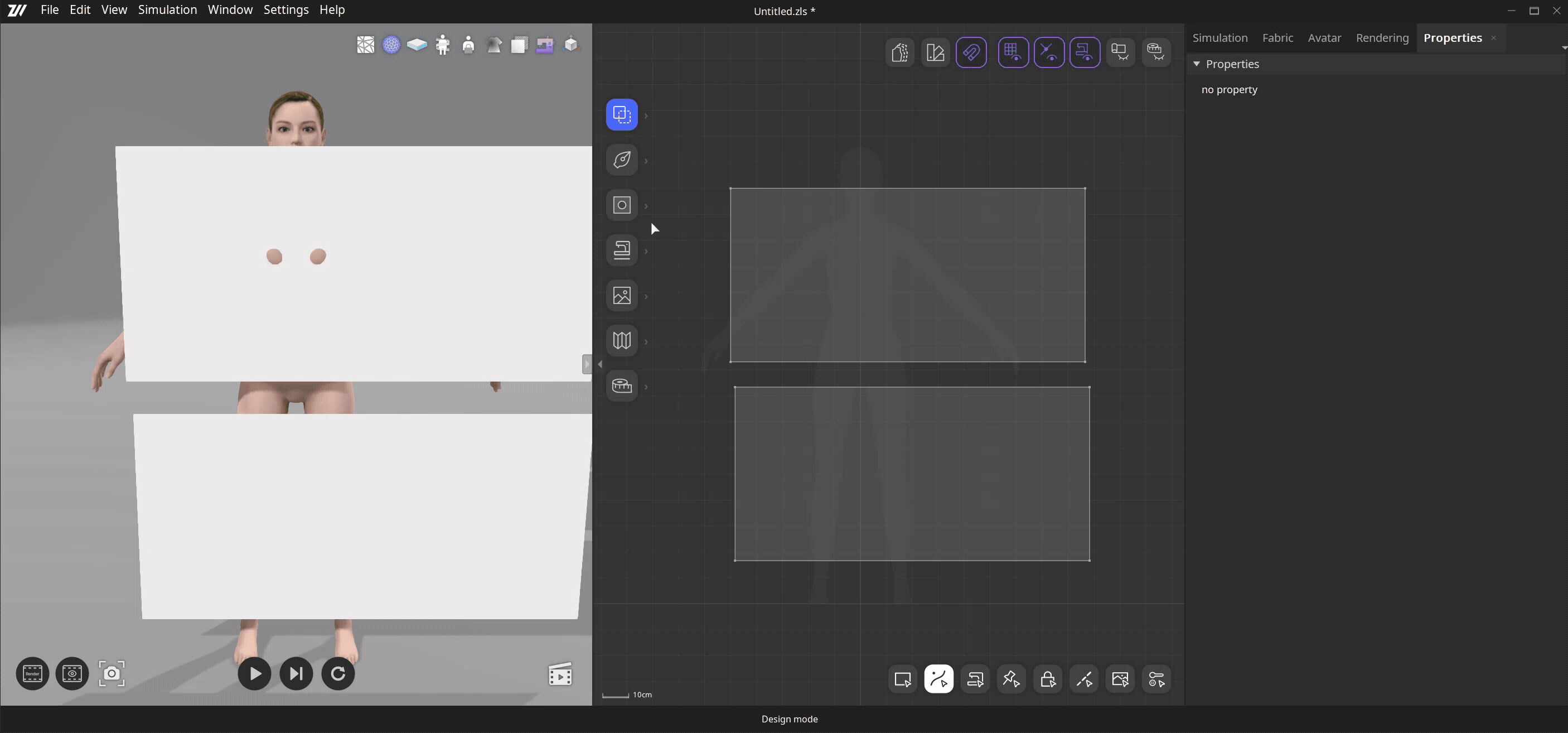

Screen Recording 2025-07-14 141900 (1).gif

Scissor

  1. Draw your desired hole on the surface using inner or outer curves.
  2. Right-click on a curve, then open the context menu and select Scissor. (The selected lines/ curves must be a closed figure with all the lines connected.)
  3. A hole will be created according to the selected line/ curve shape.
