Overview

The Rectangle tool is used to draw rectangles directly in 2D view.

Location

2D View > 2D Menu > Rectangle (M)

Operation Method

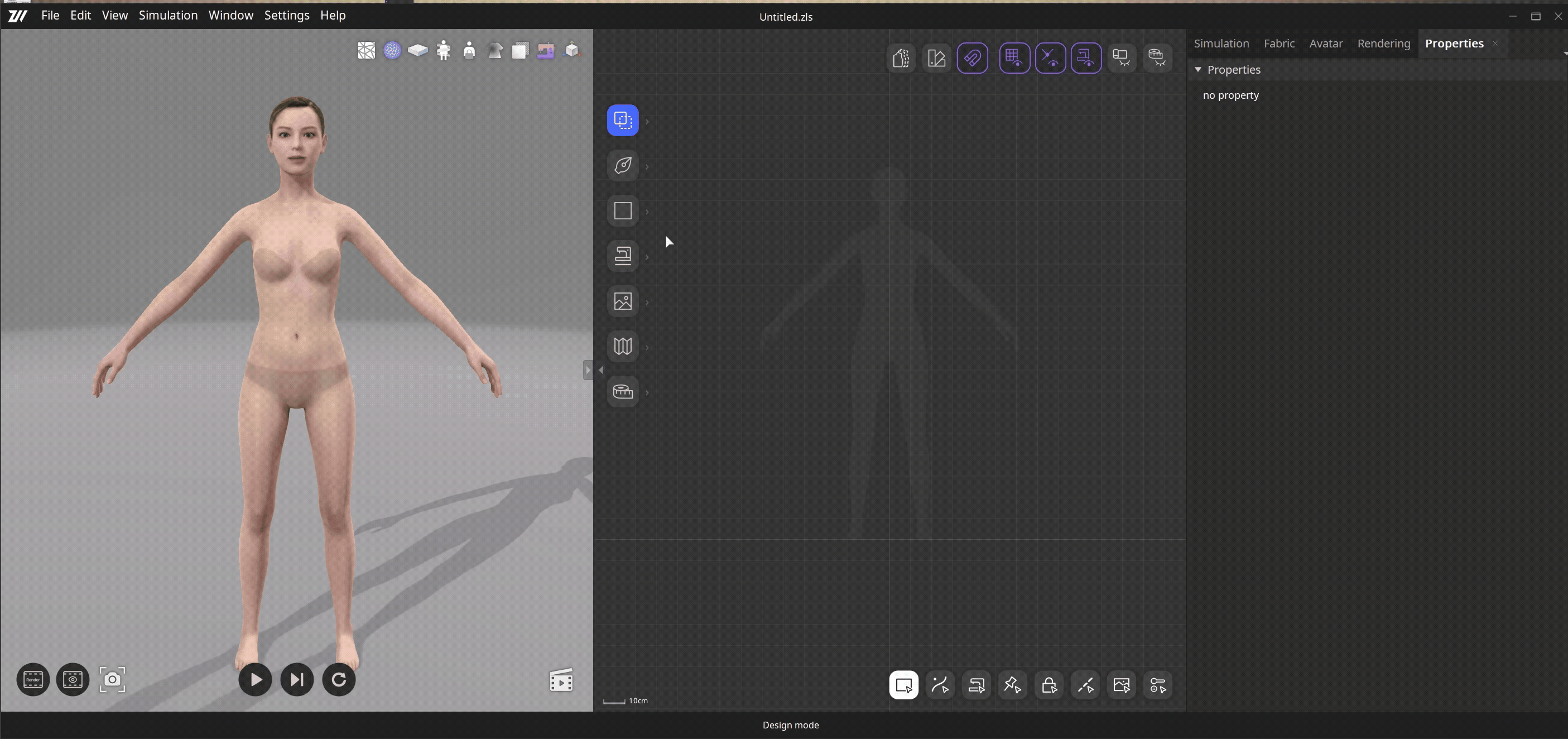

1. Select Rectangle Tool on 2D Action Toolbar.
2. Click or Drag on the empty space in 2D view, specify the rectangle size in the Rectangle dialog box or drag until it reaches your desired size.
