Overview

The OBJ file format is a standard 3D image format that can be exported and opened by various 3D image editing programs. ZLS files can also be converted to OBJ files for extraction.

Location

Menu > File > Export > OBJ

Operation Method

1. Click File from the top menu bar.
2. Click Export and select the OBJ file to be converted.

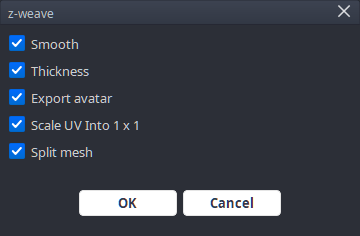

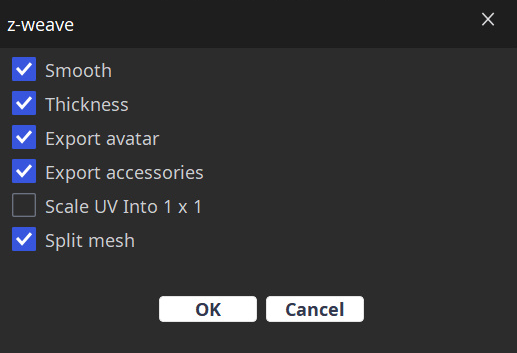

3. Select what data to include in the Export window.
4. Select the path to save.
5. Exported file will be saved in the set path.

Components

• Smooth
  This function extracts a softer surface similar to the Smoothing option in the 3D menu.

• Thickness
  This function reflects the thickness set for surfaces similar to the Thickness option in the 3D menu. Disabling Thickness extracts all surfaces thinly.

• Export Avatar
  This function is for extracting avatars that were worked on. Disabling the avatar extracts the file without the avatar, similar to disabling Show Avatar in 3D (UI Panel > Avatar).

• Scale UV into 1x1
  This function exports the UV mesh in (1,1) coordination.

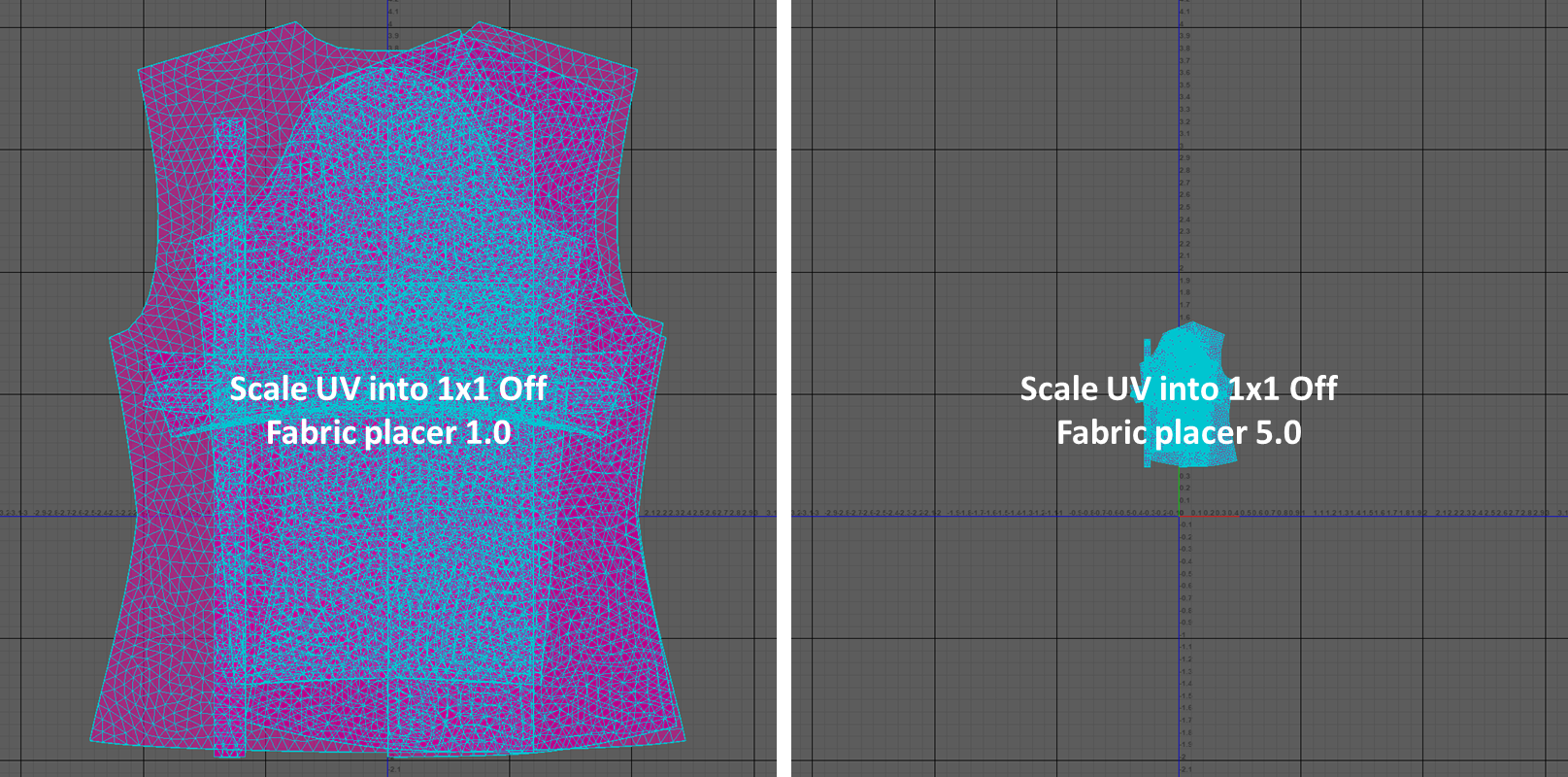

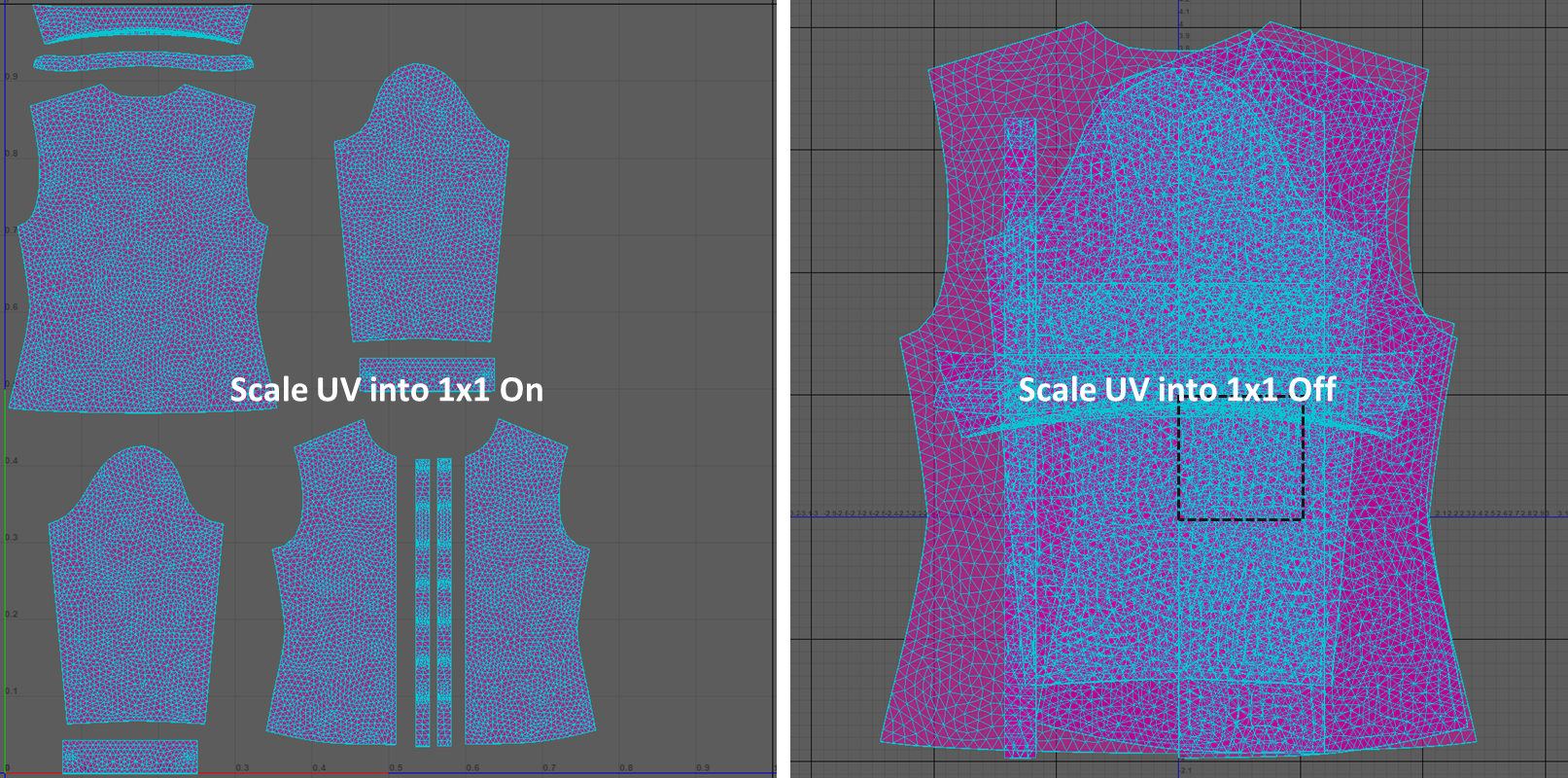

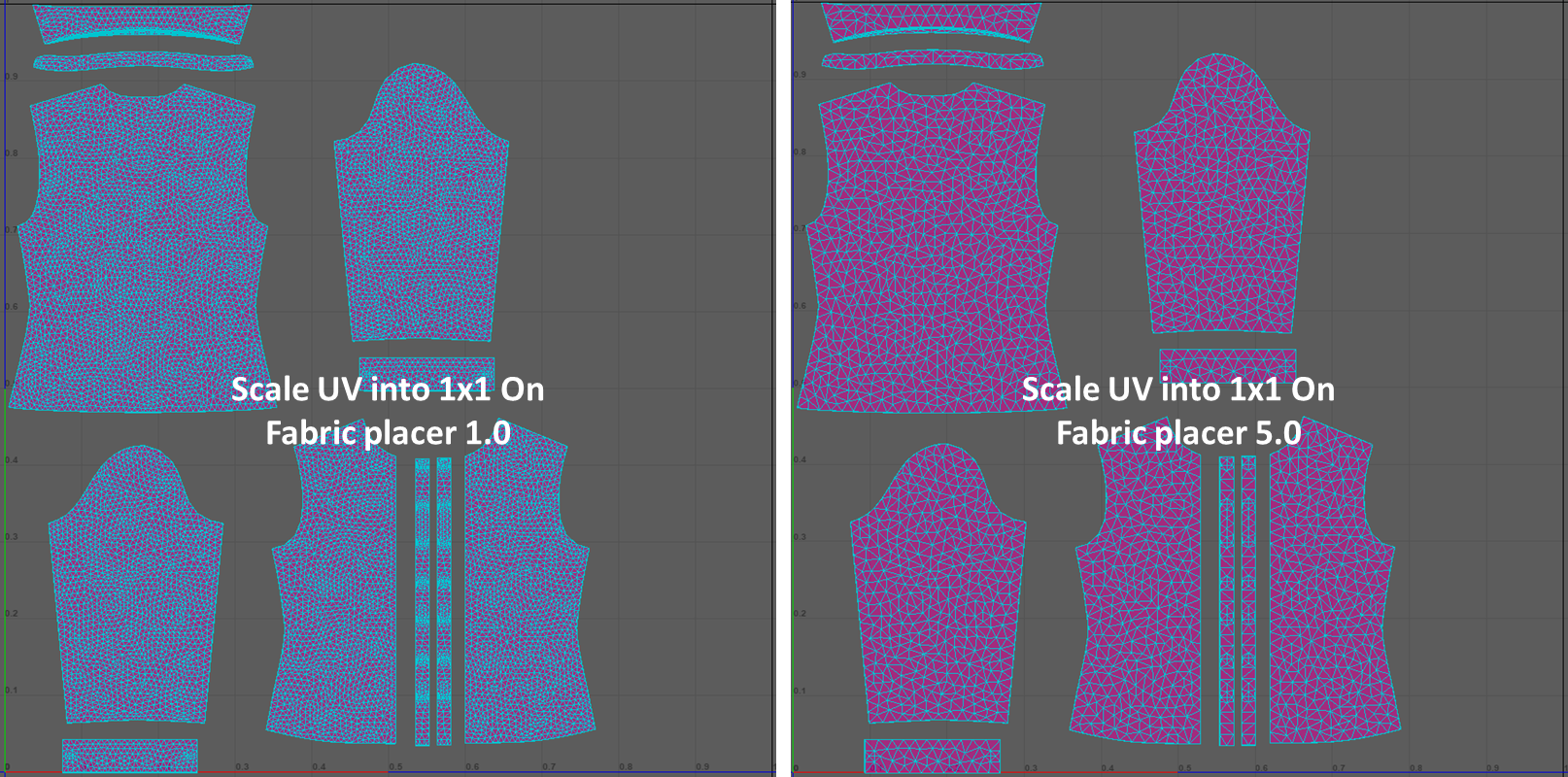

  When it is turned on, UV is exported to fit in the (1,1) coordinates and ignores the fabric placer. On the other hand, when it is turned off, UV does not fit in (1,1) coordinates, and UV size changes depending on the size of the fabric placer applied.

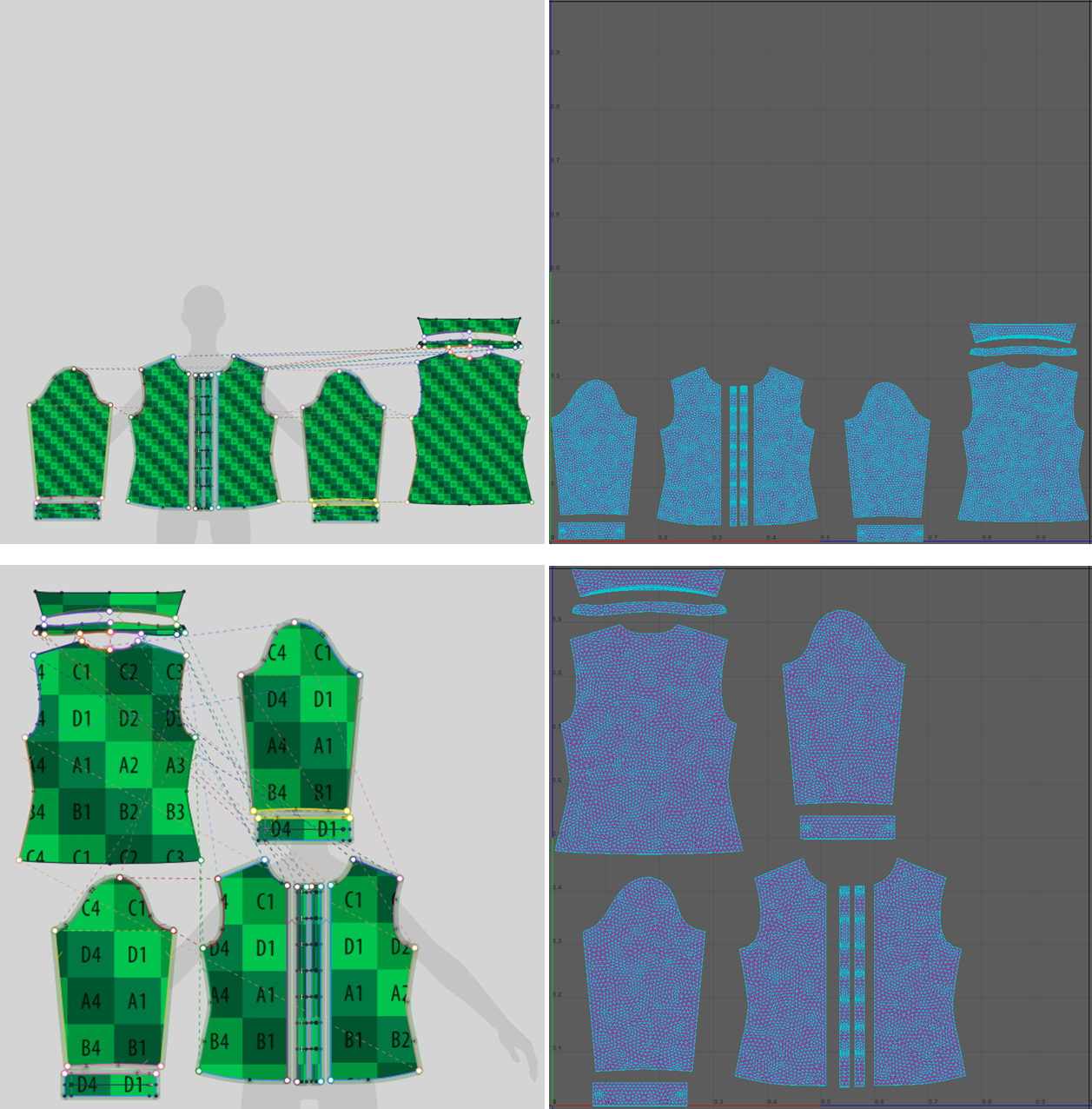

  The UV layout follows the z-weave 2D layout. So we recommend placing the pattern according to the square ratio if you use this option.


• Split mesh
  This function extracts the meshes for a surface's front, back, and sides separately.

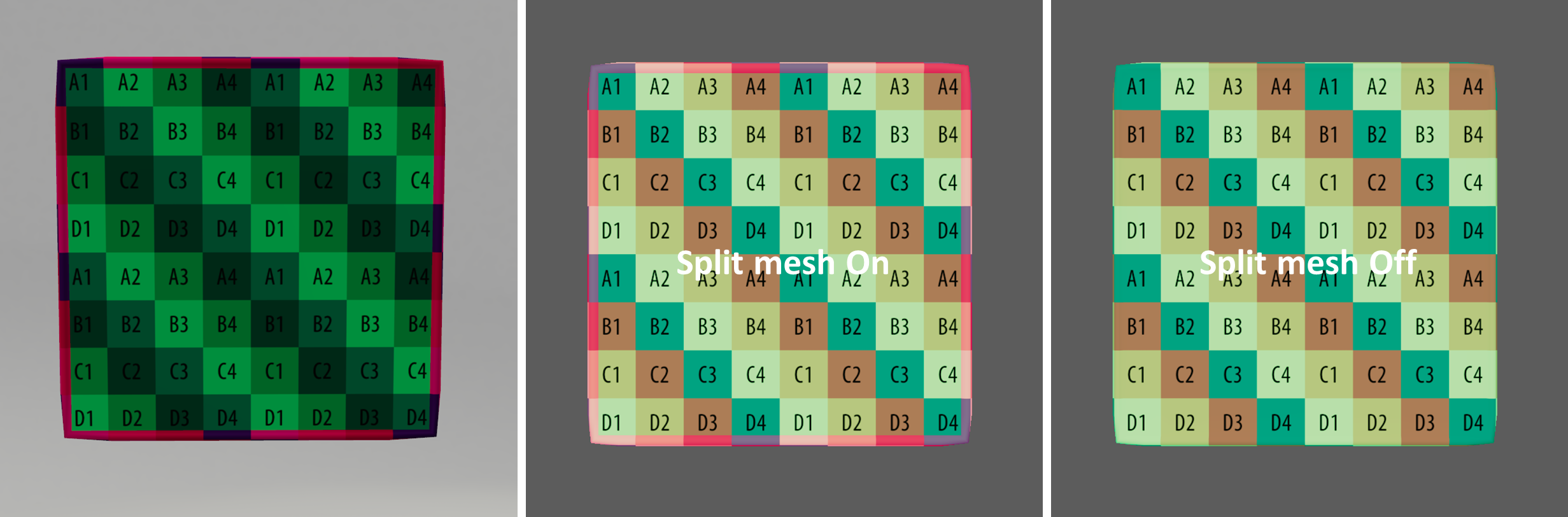

  When this option is enabled, each face's front, back, and side meshes are extracted separately. The separated meshes can be assigned different materials.

  If the option is turned off, the result is a single, non-separated mesh that cannot have different materials assigned to each side and will use a common material.
