Overview

HQ Rendering Panel is a feature that allows you to adjust the settings and environment of HQ Rendering.

Location

High-quality render > UI Panel > Rendering

Components

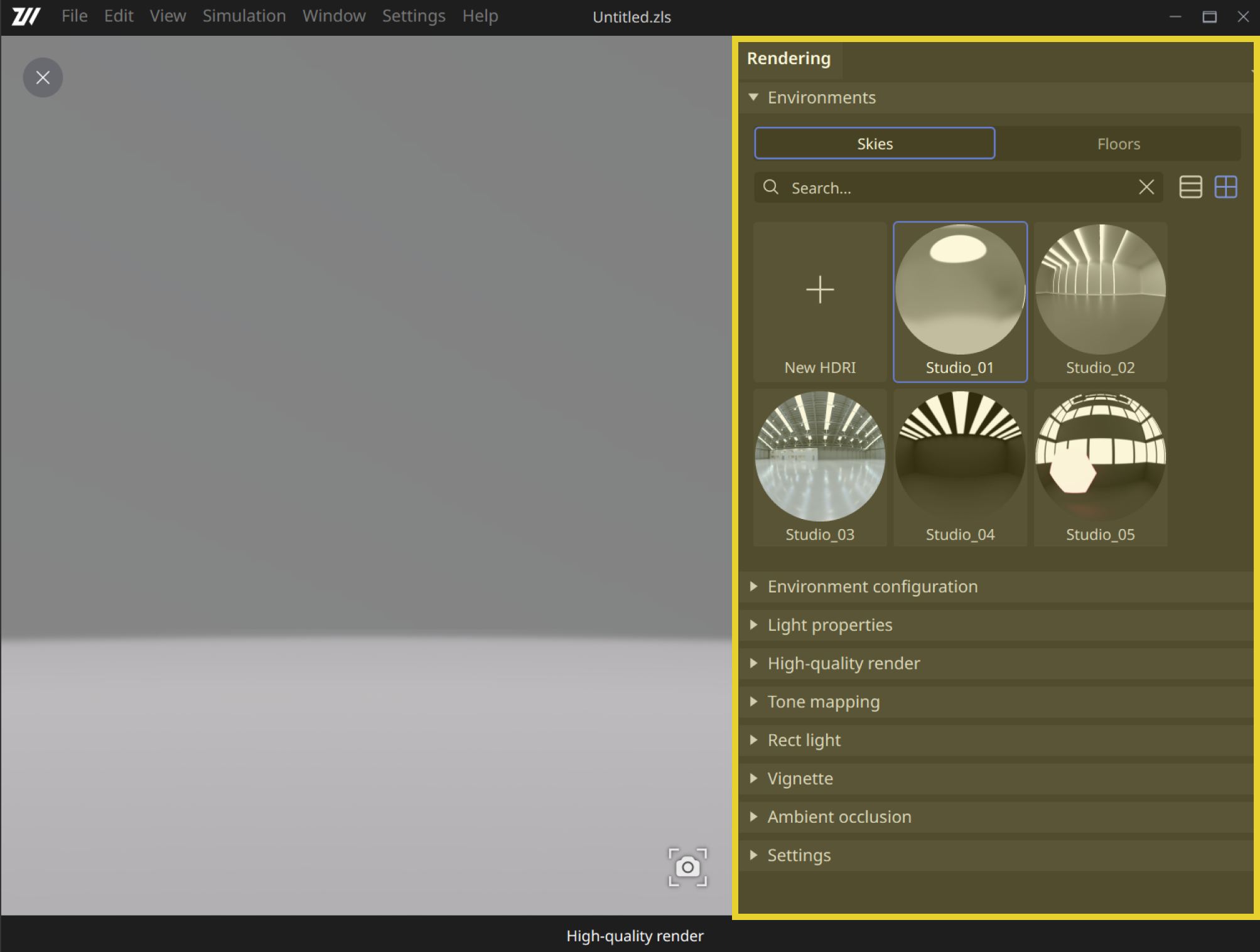

A side panel is located to the right of the High-quality Render window, which can change the rendering options.

Users can access the control via HQ Render > Basic for basic manipulation of HQ Render.

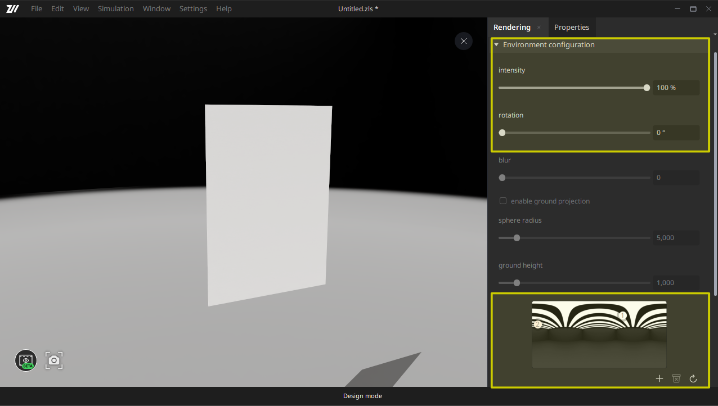

• Environment configuration

  High-Quality Preview reflects the High Dynamic Range Imaging (HDRI) environment settings under Environments configuration > intensity / rotation / lighting.

• Light properties

  Light properties is a function for adding or deleting lights and adjusting the location and color. In addition to the light of the skies image, additional lights can be installed by the user.

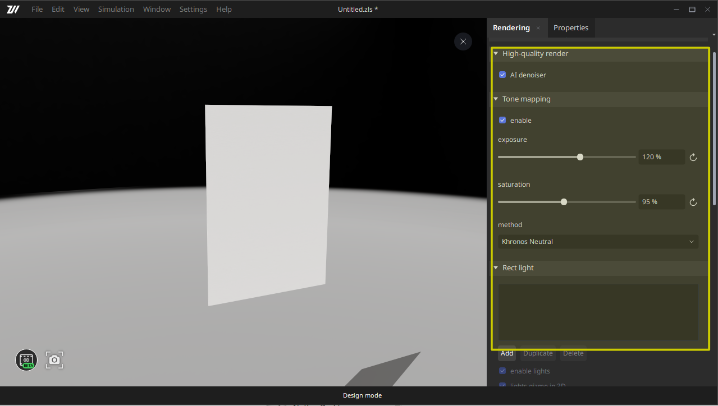

• High-quality render

  AI denoiser gradually removes noise to create a cleaner image.


• Tone mapping

  High-Quality Preview reflects the Tone mapping settings under Tone mapping > exposure / saturation / method.

• Settings
  In Settings, you can set the rendering environment for the 3D view.
