Overview

Button Connection reverse is a function for reversing the connection between buttons and buttonholes.

Location

2D View > Button connection > Context Menu > Reverse button connection

Operation Method

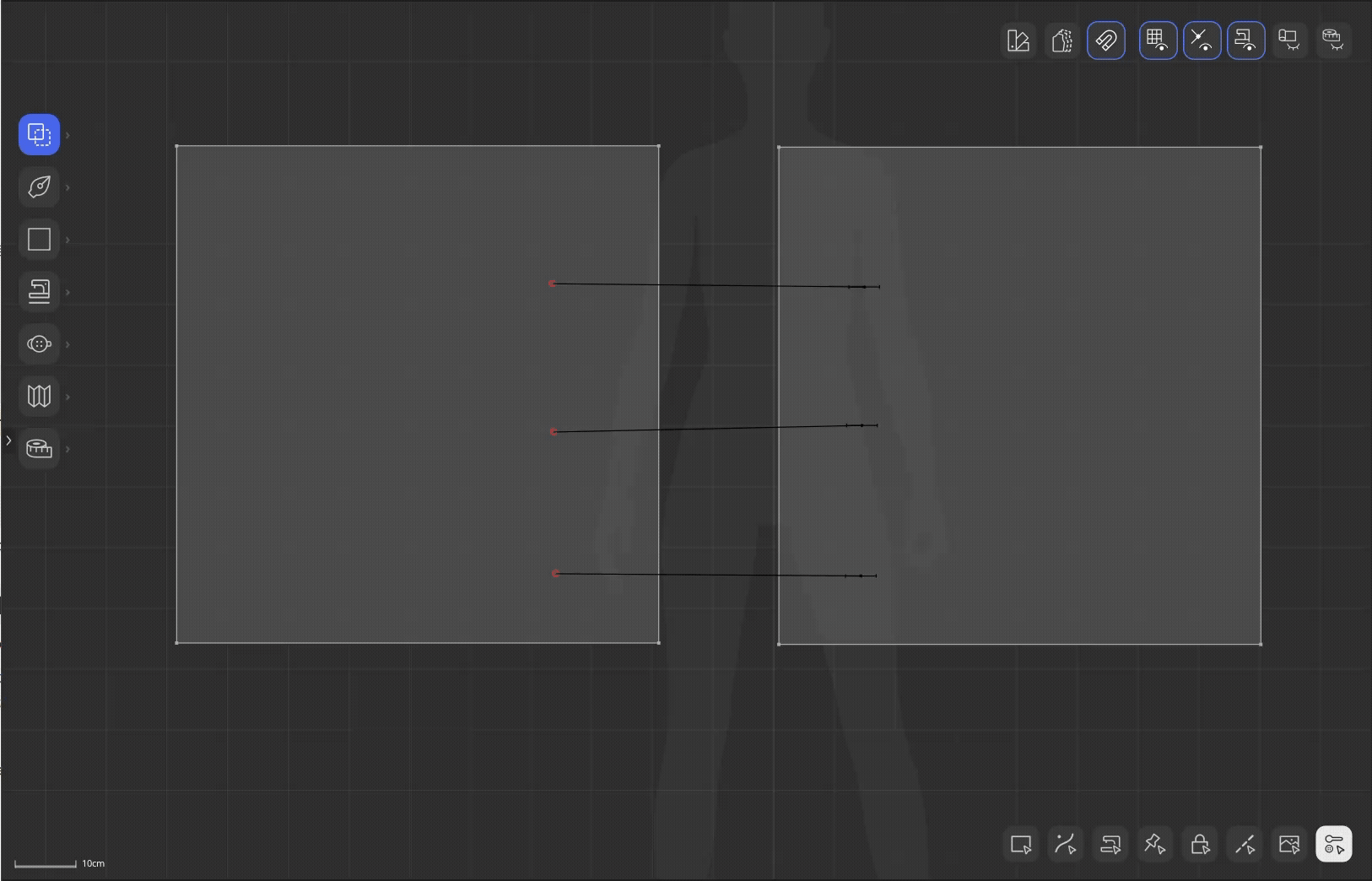

1. Open the 2D view and click on the button connection in Button Selection Mode.
2. Right-click on the selected button connection to open the context menu, then choose a Reverse button connection.
3. You will see that the button and buttonhole position are reversed in the 2D view.
4. You can see that the button and buttonhole are reversed after the simulation.
