High-quality preview

Overview

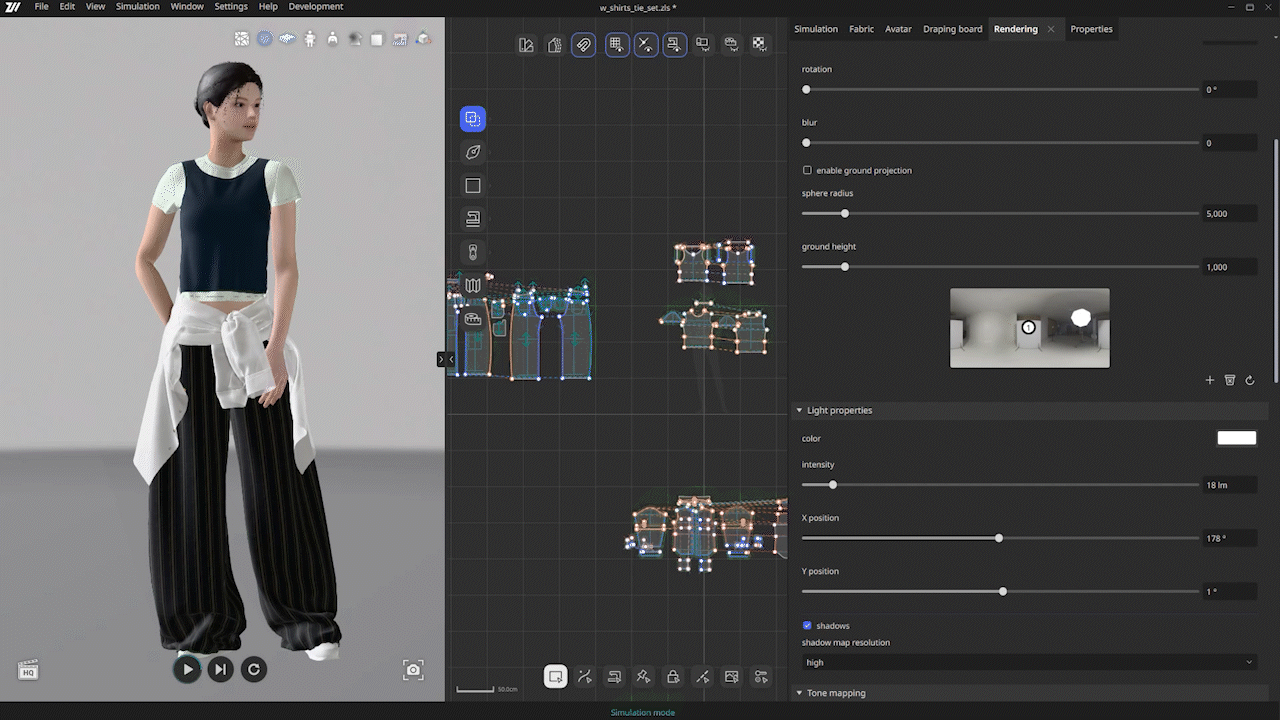

HQ Preview is a function for previewing the image for creating an High-quality Preview.

The set options and values are reflected in the HQ Render screen.

Location

3D View > Rendering toolbar> High-quality Preview

Operation Method

1. Go to 3D View > Rendering > High-quality Preview.
2. All windows, excluding 3D view, are closed, and the 3D view is switched to High-quality Preview mode.
3. Manipulate the camera viewpoint by dragging the mouse or wheel. When the viewpoint changes, rendering restarts.

Components

Control Rendering properties

Rendering properties affect the High-quality Preview and can be accessed via the UI Panel > Rendering tab

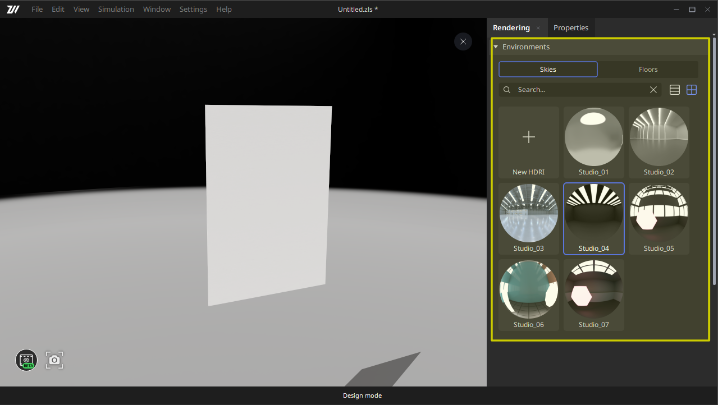

• Environments

  The High-quality Preview reflects the environment settings under Environments > Skies / Floors.

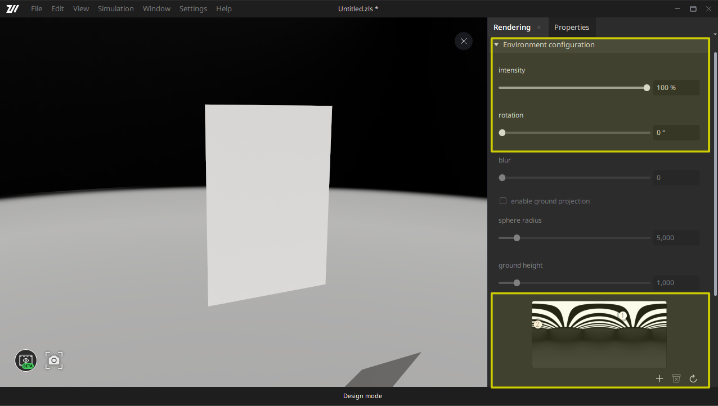

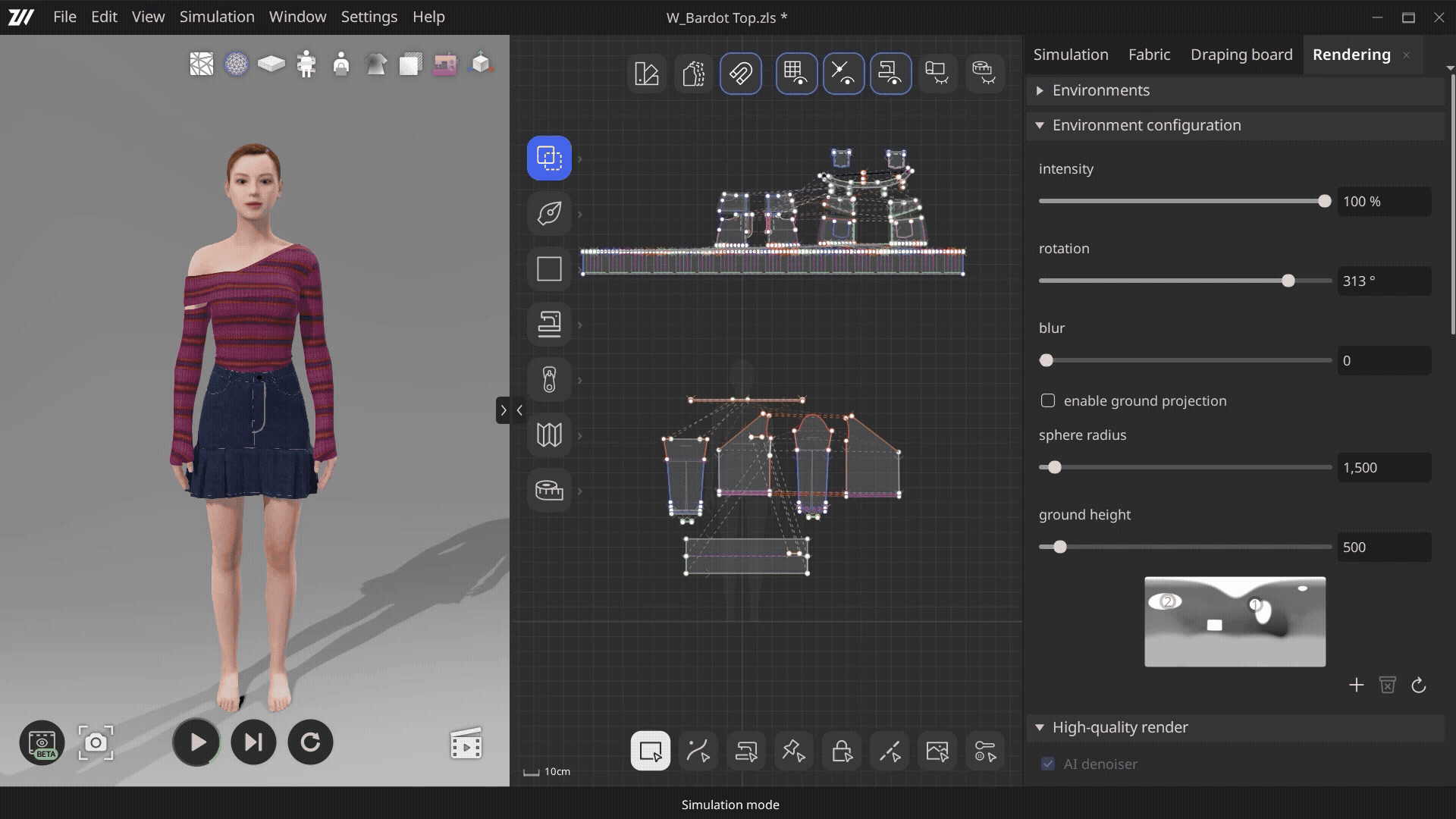

• Environment configuration

  High-Quality Preview reflects the High Dynamic Range Imaging (HDRI) environment settings under Environments configuration > intensity / rotation / lighting.

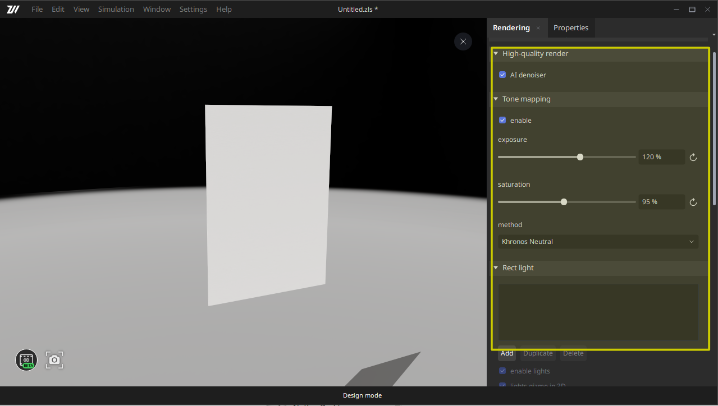

• AI denoiser

  AI denoiser gradually removes noise to create a cleaner image.

• Tone mapping

  High-Quality Preview reflects the Tone mapping settings under Tone mapping > exposure / saturation / method.

• Rect light

  High-Quality Preview reflects Rect light settings under Rect light > add
