Overview

Rigid is the option to apply super high stiffness on the pattern.

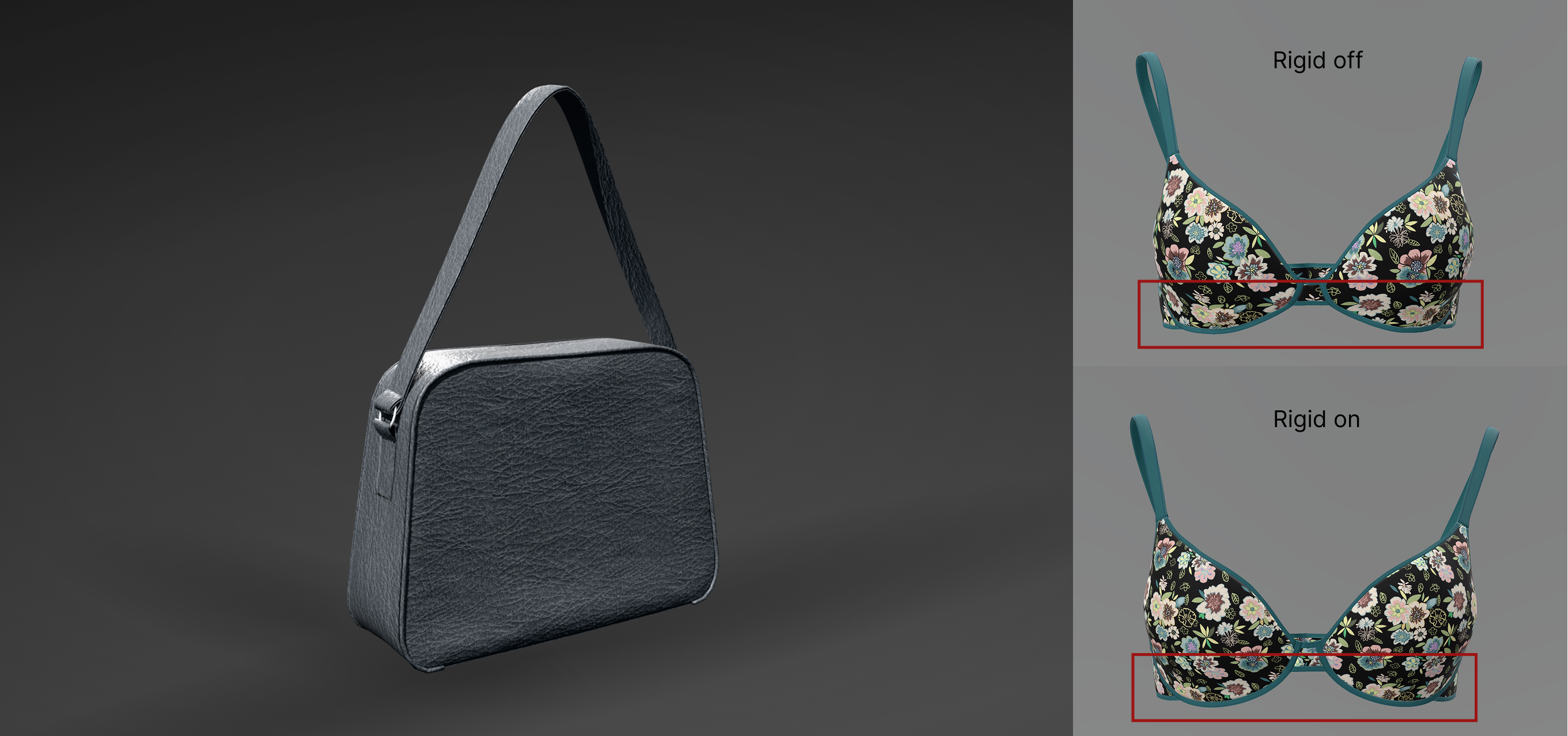

It is effective to express bag handle, bra wire, corsets and etc.

Location

UI Panel > Properties > Pattern Properties > Rigid

UI Panel > Properties > curve Properties > Rigid

Operation Method

Surface Rigid

1. Select the surface in Surfaces Selection Mode.
2. Enable or disable the function via UI Panel > Properties > Pattern Properties > Rigid*.*
3. Turning on the Rigid option makes the pattern more likely to stabilizes the shape than Harden function.

Inner Curve Rigid

1. Select the inner curve in Curves,Points Selection Mode.
2. Enable or disable the function via UI Panel > Properties > Curve Properties > Rigid*.*
3. Turning on the Rigid option makes the curve more likely to stabilizes the shape.

Outer Curve Rigid

1. Select the outer curve in Curves,Points Selection Mode.
2. Enable or disable the function via UI Panel > Properties > Curve Properties > Rigid*.*
3. Turning on the Rigid option makes the curve more likely to stabilizes the shape.
