Overview

Custom Zipper is a function that imports an OBJ format zipper as an asset to the Zipper Materials list.

Location

UI Panel > Properties > Zipper Materials

Operation Method

Creation

1. Click the zipper tool on the 2D toolbar.
2. Go to UI panel> Properties> Zipper materials

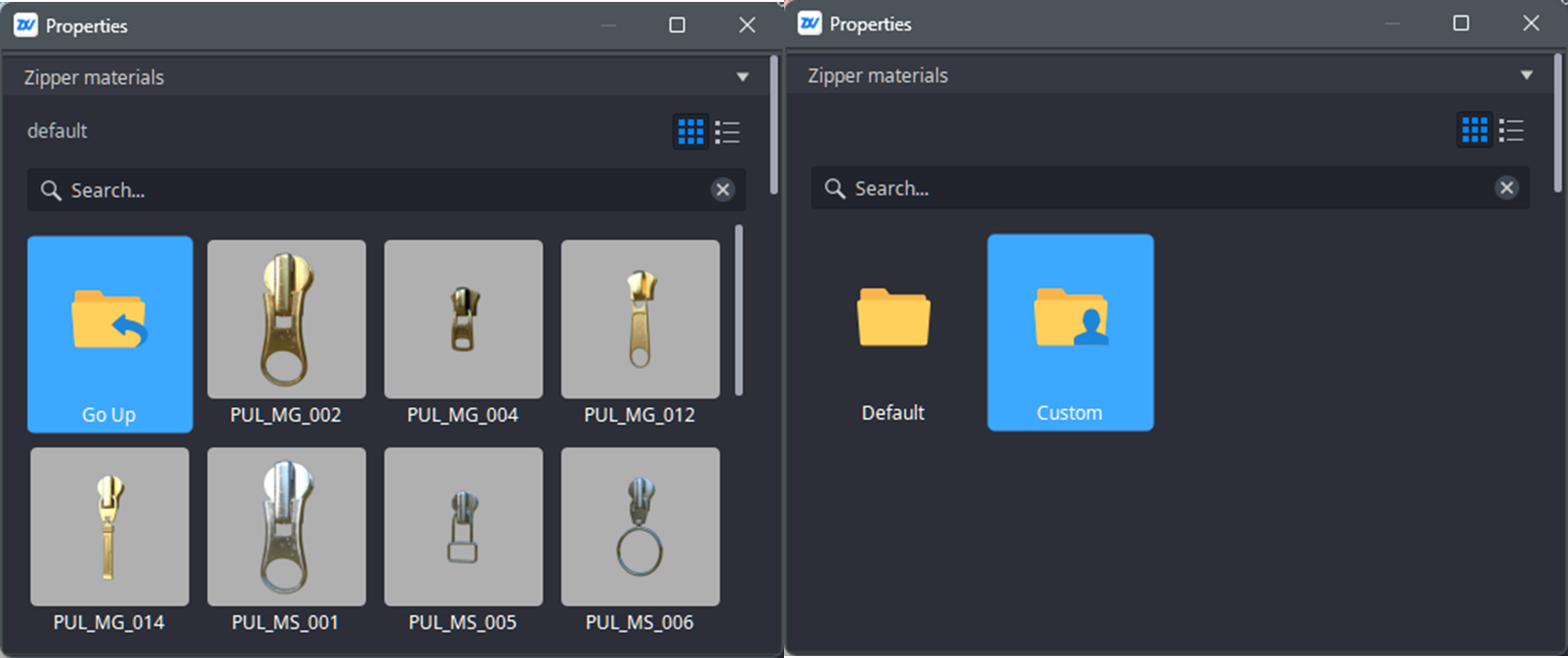

3. Click Go Up in the Default folder in the UI Panel > Properties > Zipper Materials to go to the upper folder structure, then click on the Custom folder.

1. Click on the New Material icon in the Custom folder, and select the OBJ zipper material.



2. You can check the zipper added to the Zipper materials list.

Zipper Application

1. Select the zipper in 2D/3D view.
2. Double-click on the desired zipper via UI Panel > Properties > Zipper Materials.
3. The zipper will appear in 2D and 3D views.
